Operation Manual / A130-H.. - A140-H..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4030_EN
Rev.G
July 2021

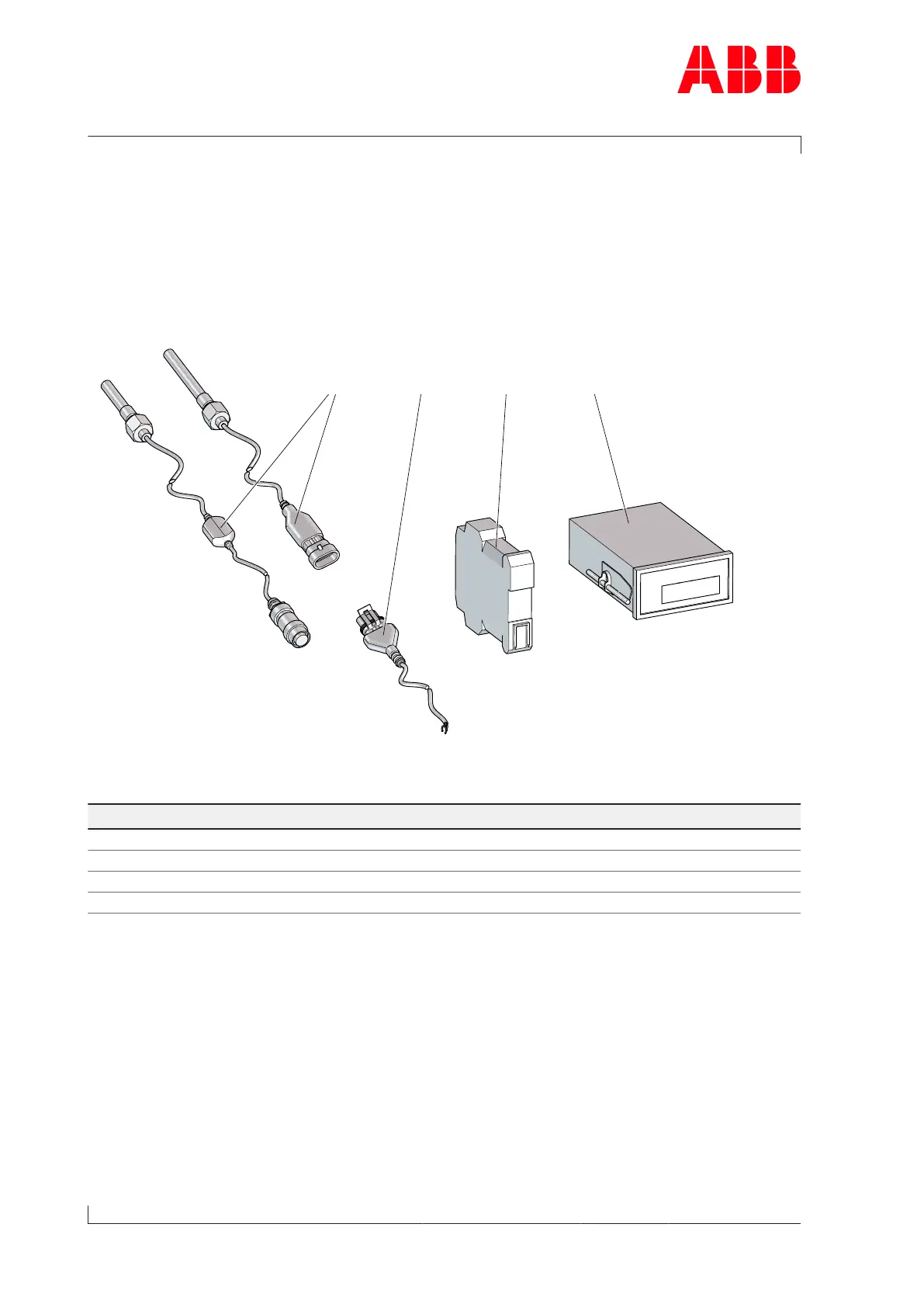

Speed measurement system
86505**
86515**
86528**
86526**
** = if provided
HZTL443468 Mod. A
Part no.
Designation
86505**
Speed sensor
86515**
Cable connector
86526**
F/I-converter
86528**
Tachometer
Table54
Page 118 / 122
