Operation Manual / A130-H.. - A140-H..
5 Monitoring operation / 5.3 Turbocharger speed
© Copyright 2021 ABB. All rights reserved.
HZTL4030_EN
Rev.G
July 2021
5.3.2
Layout and overview

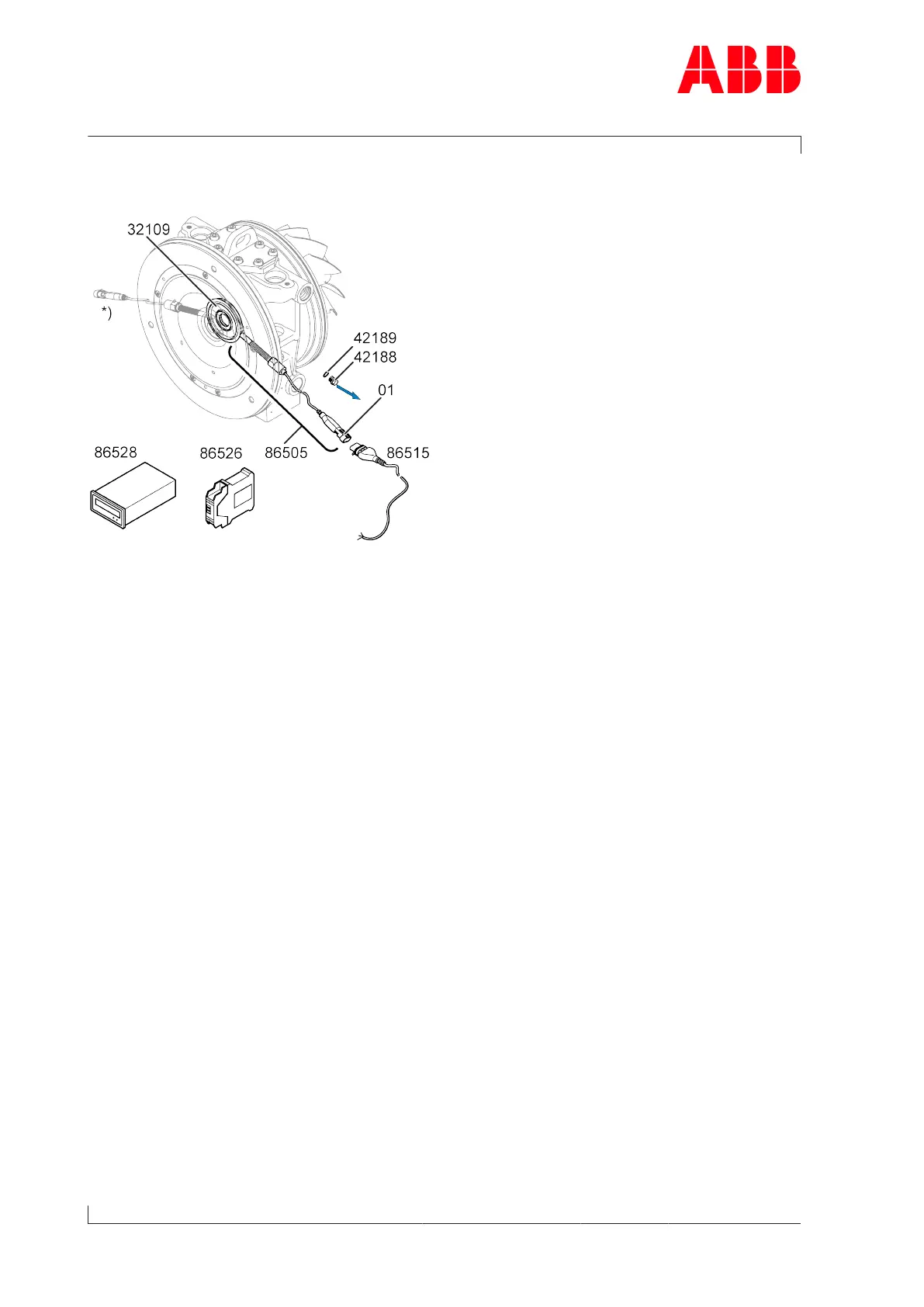

Fig.24: Layout and overview of speed measurement system
86505
Speed sensor
42188
Screw plug
86515
Cable connector
42189
Gasket
86526
F/I converter
01
Plug with integrated voltage limiter
86528
Tachometer
*)
Installation variant for speed sensor
32109
Sealing disc with cams
Page 48 / 122
