Operation Manual / TPS44-H.. - TPS52-H..
14 Spare parts / 14.3 Spare part - Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4037_EN
Rev.F
May 2021

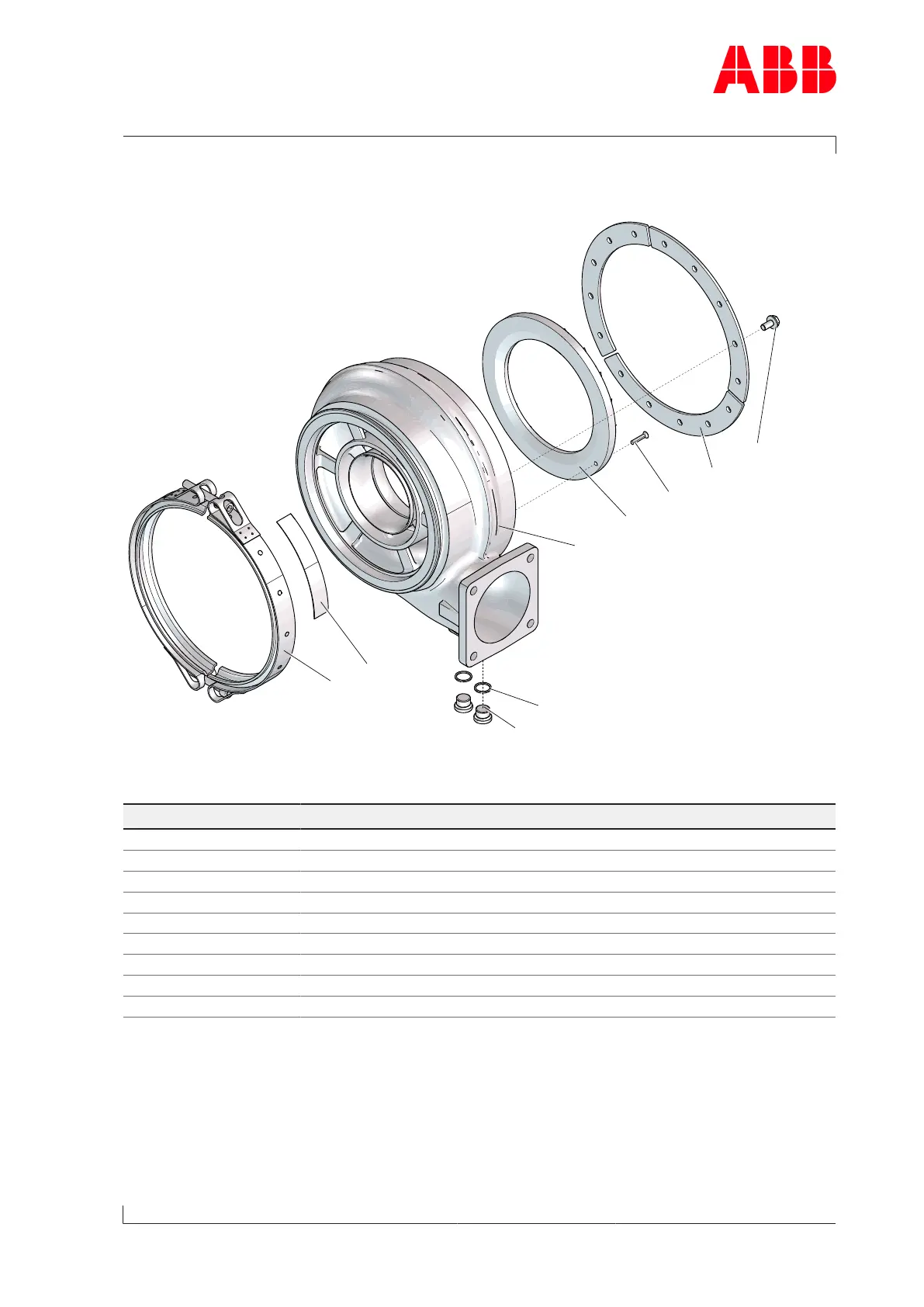

Compressor casing
72012
72011
72041*
79000
72005(p)
72006(p)
72000
72080
72020
* = Av
ailable within the spare part set
HZTL443414 Mod. B
(p) = pre-assembled
Part no.
Designation
72000
Compressor casing
72005(p)
Screw plug
72006(p)
Gasket
72011
Hexagon-head screw
72012
Fastening strip
72020
V-clamp
72041*
Counter-sunk screw
72080
Warning plate
79000
Diffuser
Table49: Spare parts - Compressor casing
Page 103 / 111
104
106
