Operation Manual / TPS44-H.. - TPS52-H..
14 Spare parts / 14.3 Spare part - Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4037_EN
Rev.F
May 2021

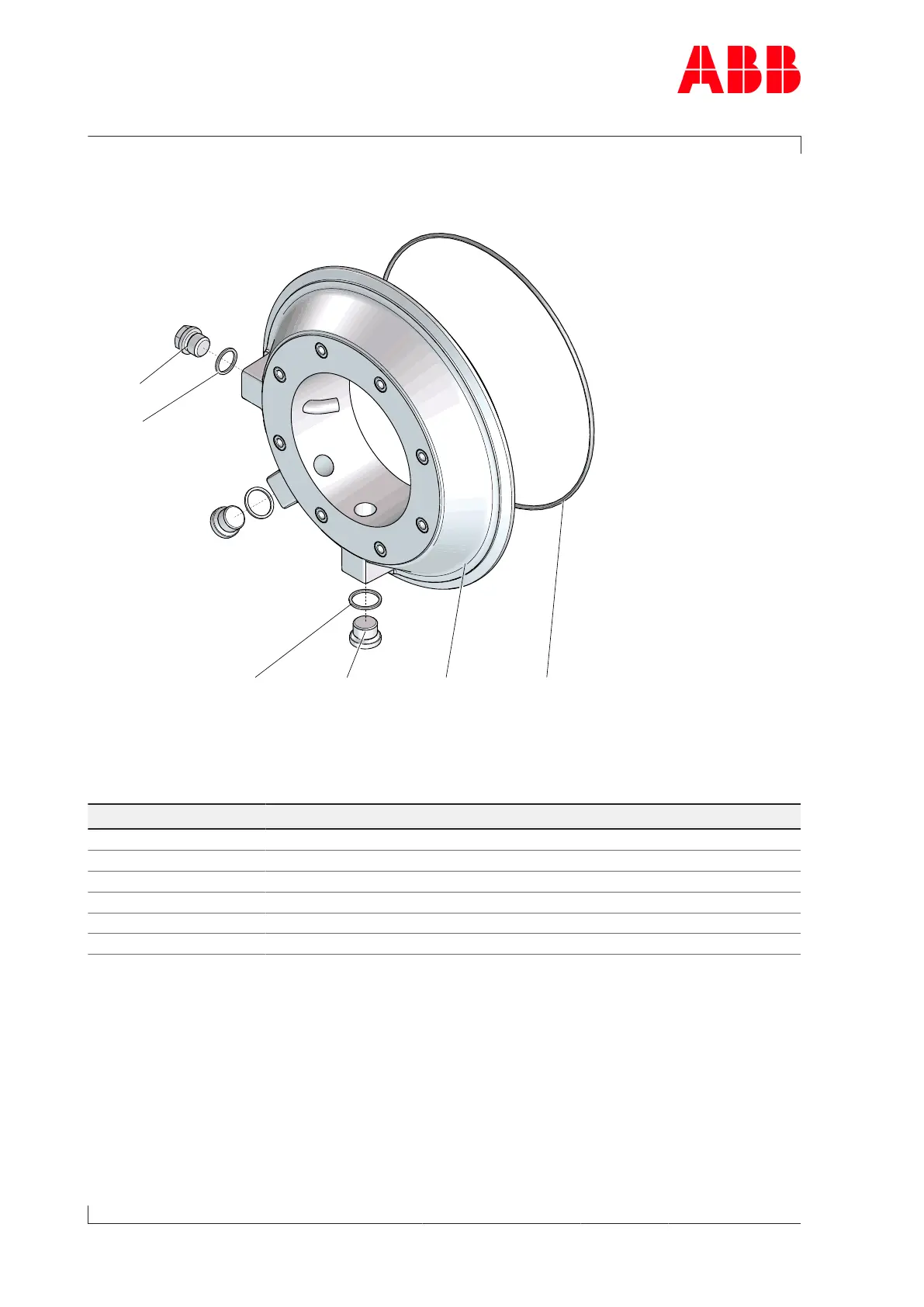

Air suction branch axial
82005(p)
82007(p)
82008(p)
82006(p)
82010*
82000
* = Av
ailable within the spare part set
HZTL443418 Mod. A
(p) = pre-assembled
Part no.
Designation
82000
Air suction branch
82005(p)
Screw plug
82006(p)
Gasket
82007(p)
Screw plug
82008(p)
Gasket
82010*
O-ring
Table52: Spare parts - Air suction brach axial
