Operation Manual / TPS44-H.. - TPS52-H..
1 Introduction / 1.5 Layout and function of the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
1.5 Layout and function of the turbocharger

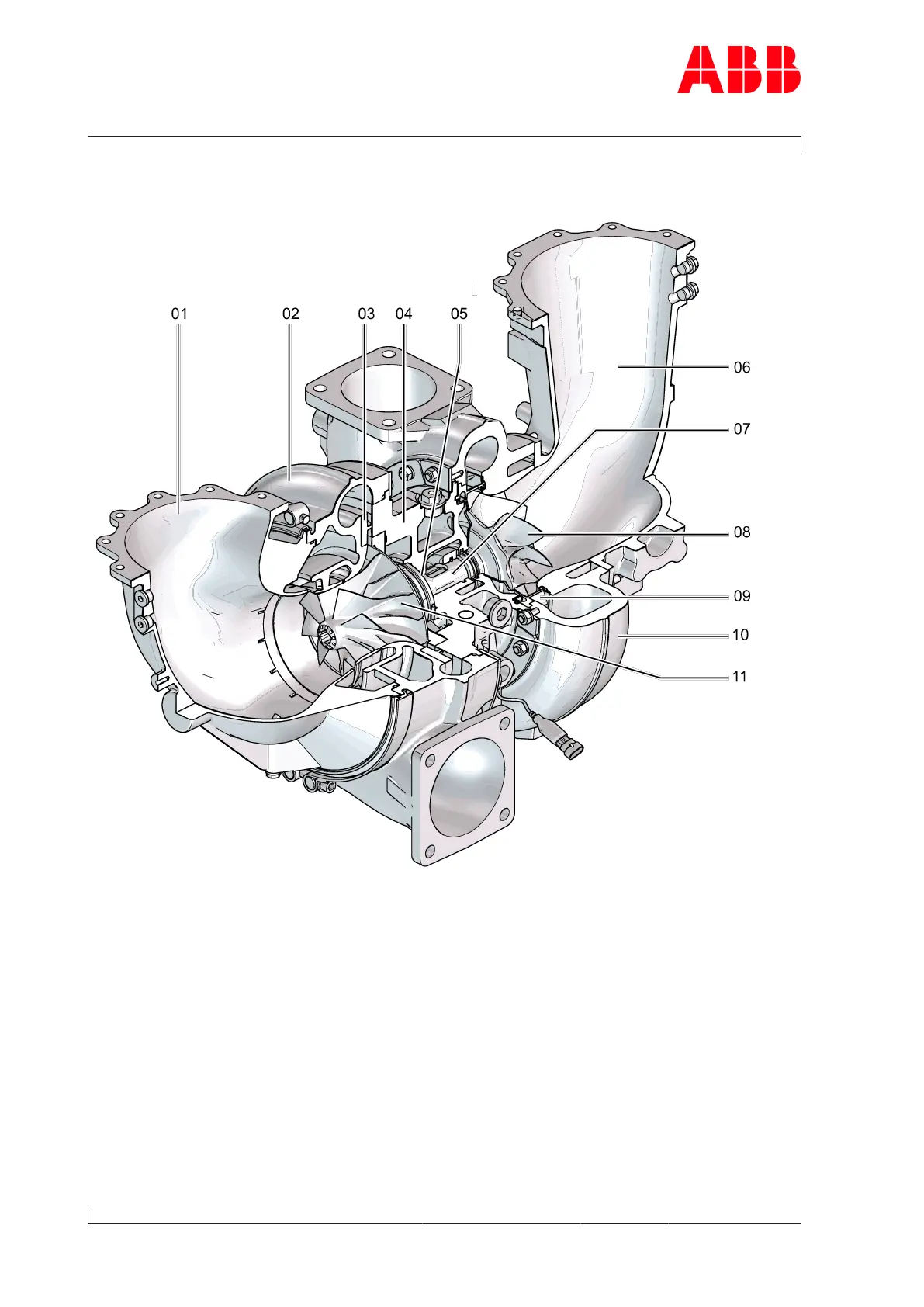

Fig.2: Layout and function of the turbocharger
01 Air suction branch / filter silencer 07 Plain bearing bush
02 Compressor casing 08 Turbine
03 Diffuser 09 Nozzle ring
04 Bearing casing 10 Turbine casing
05 Axial thrust bearing 11 Compressor wheel
06 Gas outlet casing
Page 6 / 111
