Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.3 Weights of individual parts
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
10.3 Weights of individual parts
The specified weights of the individual parts or assemblies are rounded-up standard values.

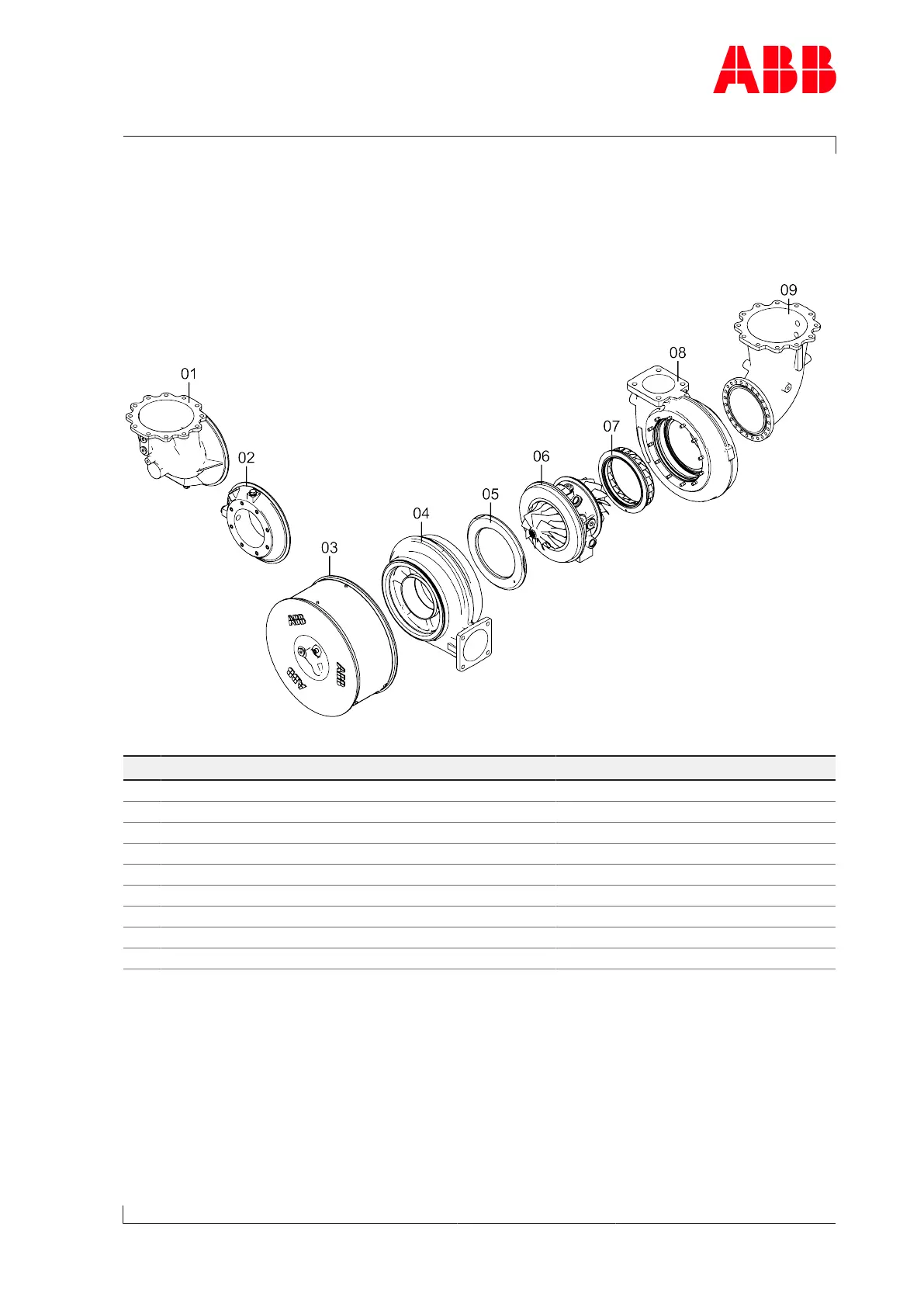

Fig.25: Overview of assemblies
Designation TPS44 TPS48 TPS52
01 Radial air suction branch 5 6 8
02 Axial air suction branch 3 4 4
03 Filter silencer 15 - - - -
04 Compressor casing 17 30 45
05 Diffuser 2 3 4
06 Cartridge group 24 40 65
07 Nozzle ring 1 2 3
08 Turbine casing 1 inlet 30 45 70
09 Gas outlet casing 16 18 25
Table34: Weights of the assemblies [kg]
Page 73 / 111
