Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.13 Installing the nozzle ring
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
10.13 Installing the nozzle ring

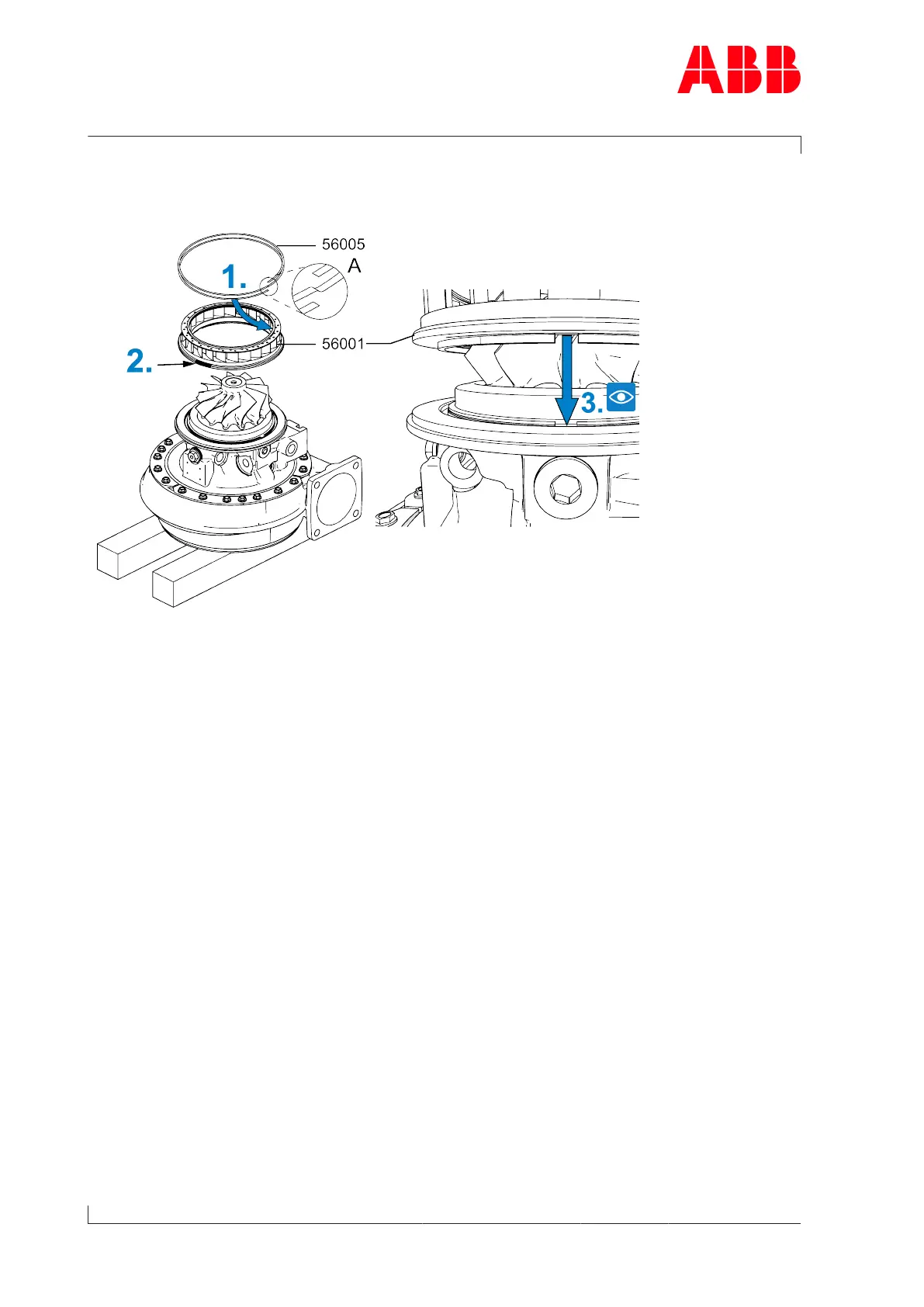

Fig.41: Installing the nozzle ring
1. Fit lamellar sealing ring (56005) in the slot of the nozzle ring. When doing this, pay atten-
tion to correct winding of the lamellar sealing ring (see detail A).
2. Secure the lamellar sealing ring (56005) with adhesive tape.
3. Installing the nozzle ring. Ensure correct position according to illustration.
Page 86 / 111
