Operation Manual / TPS44-H.. - TPS52-H..
10 Dismantling and fitting / 10.19 Table of tightening torques
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
10.19 Table of tightening torques

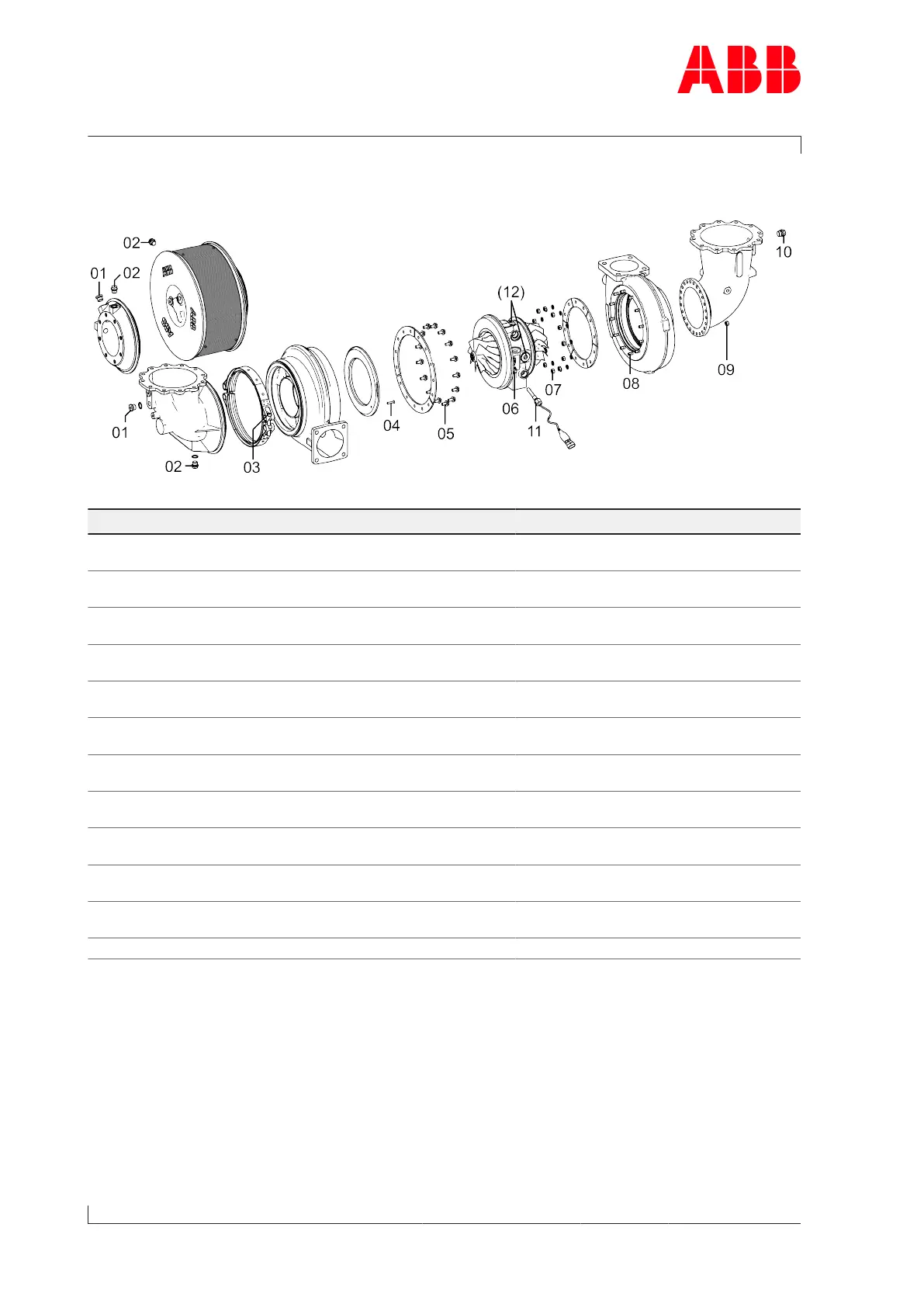

Fig.47: Overview of tightening torques
Position Part number TPS44 TPS48 TPS52
01 82007 M18 x 1.5
60Nm
M18 x 1.5
60Nm
M18 x 1.5
60Nm
02 82005 / 81005 M16 x 1.5
50Nm
M16 x 1.5
50Nm
M16 x 1.5
50Nm
03 72020 M10
30Nm
M10
30Nm
M10
30Nm
04 72041 M5
5Nm
M5
5Nm
M6
10Nm
05 72011 M8
40Nm
M8
40Nm
M10
80Nm
06 42188 M12 x 1.5
35Nm
M12 x 1.5
35Nm
M12 x 1.5
35Nm
07 51007 M8
30Nm
M8
30Nm
M10
60Nm
08 51006 M8
25Nm
M8
25Nm
M10
45Nm
09a /
09b
51008 /
51009
M8
25Nm
M8
25Nm
M10
50Nm
10 61005 M18 x 1.5
60Nm
M18 x 1.5
60Nm
M18 x 1.5
60Nm
11 86505 M12 x 1.5
15Nm
M12 x 1.5
15Nm
M12 x 1.5
15Nm
12 *) - - 90Nm 90Nm 90Nm
Table43: Overview of tightening torques
*) These screw plugs must not be removed for maintenance work. If the screw plug is
loosened, the tightness is no longer guaranteed.
Page 92 / 111
