Operation Manual / TPS44-H.. - TPS52-H..
3 Removing and Installing / 3.1 Turbocharger weight and transporta-
tion
© Copyright 2021 ABB. All rights reserved. HZTL4037_EN Rev.F May 2021
3 Removing and Installing
3.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for removing, installing and transport-
ing the turbocharger. The weight specified below applies to the heaviest variant possible.
Depending on the specification, the weight specified on the rating plate may be lower than
the standard value specified here.
Produkt Gewicht Turbolader komplett [kg]
TPS44 120
TPS48 180
TPS52 250
Table4: Gesamtgewicht
3.1.1 Swivel lifting eyes to be used
One swivel lifting eye(S) is required to safely lift this turbocharger. This is not included in
the ABB scope of delivery.

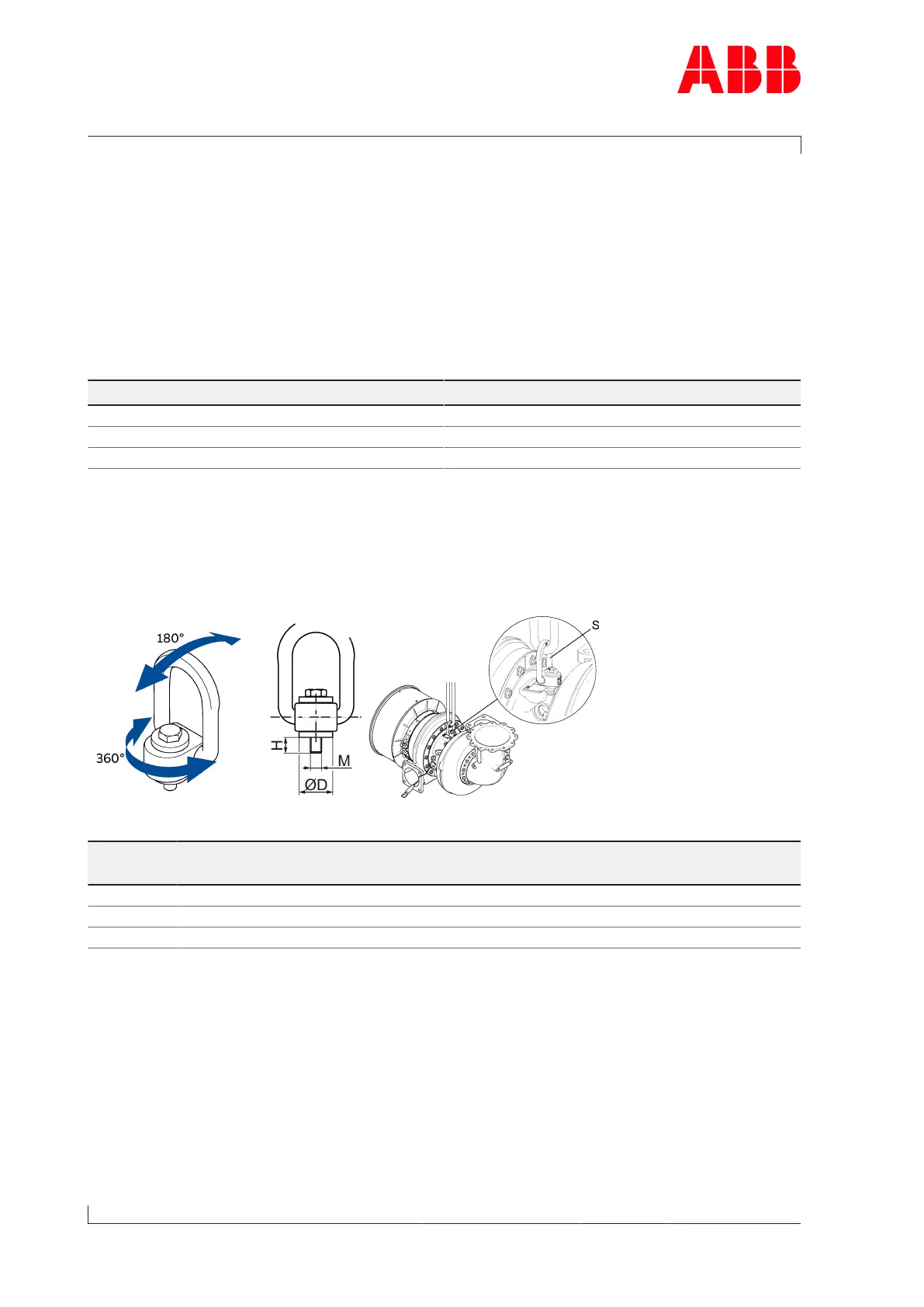

Fig.10: Swivel lifting eyes
Product Thread M Length H
[mm]
Diameter D
[mm]
Minimum load limit
[kg]
TPS44 M8 ≤12 ≤25 300
TPS48 M8 ≤12 ≤25 300
TPS52 M10 ≤15 ≤25 400
Table5: Swivel lifting eyes to be used
Page 28 / 111
