10.5 Removing air inlets
u Mark the casing position for assembly.

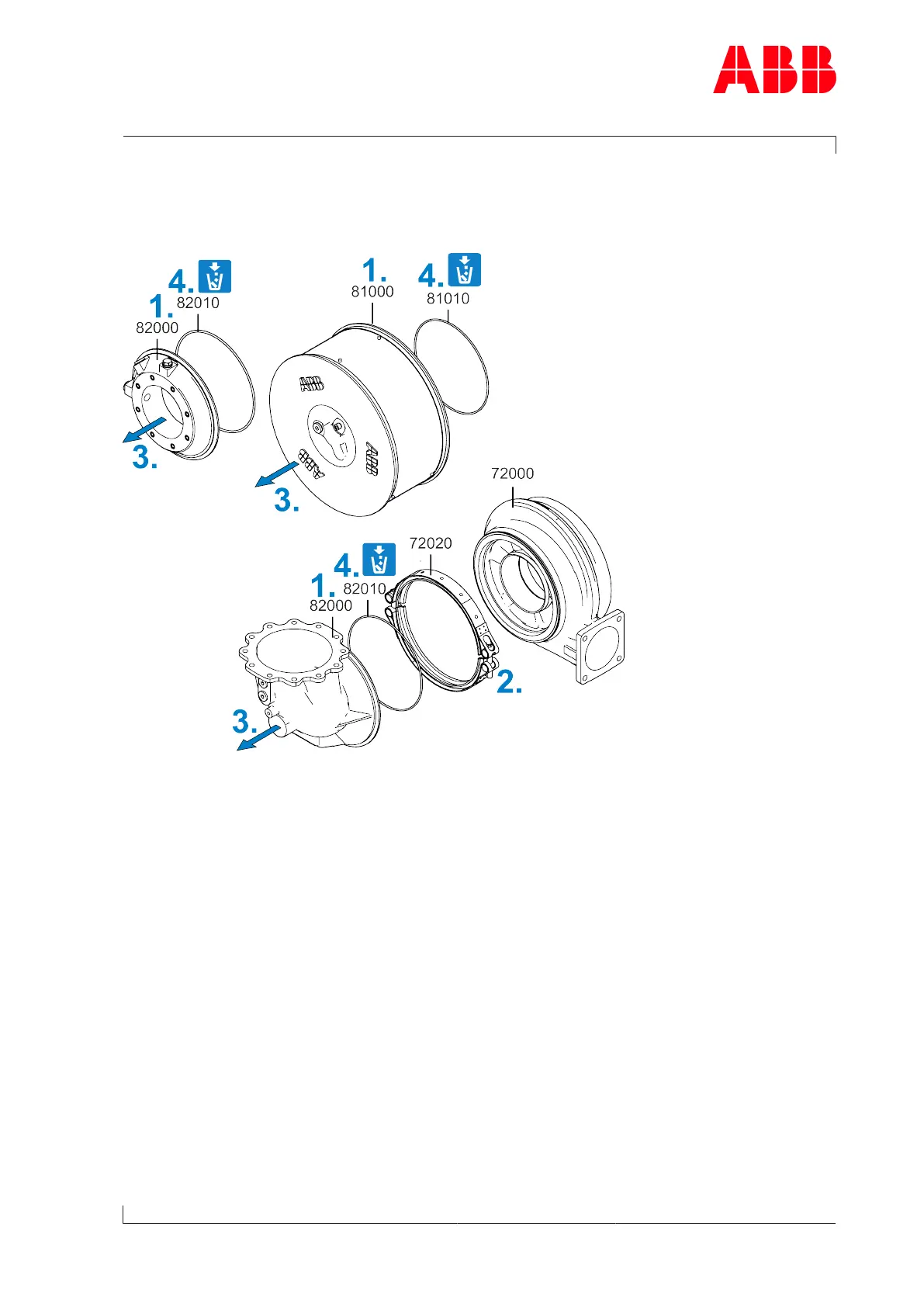

Fig.27: Removing air inlets
1. Manually secure the filter silencer (81000) or air suction branch (82000).
2. Loosen and remove V-clamp (72020).
3. Remove the filter silencer(81000) or air suction branch(82000).
4. Remove and dispose of O-ring(81010 / 82010) (refer to Disposing of turbocharger com-
ponents →97).
