3 Maintenance
3.4.7. Oil change, gearbox axis 6
1973HAC022033-001 Revision: E
© Copyright 2004 - 2008 ABB. All rights reserved.
3.4.7. Oil change, gearbox axis 6
Location of gearbox

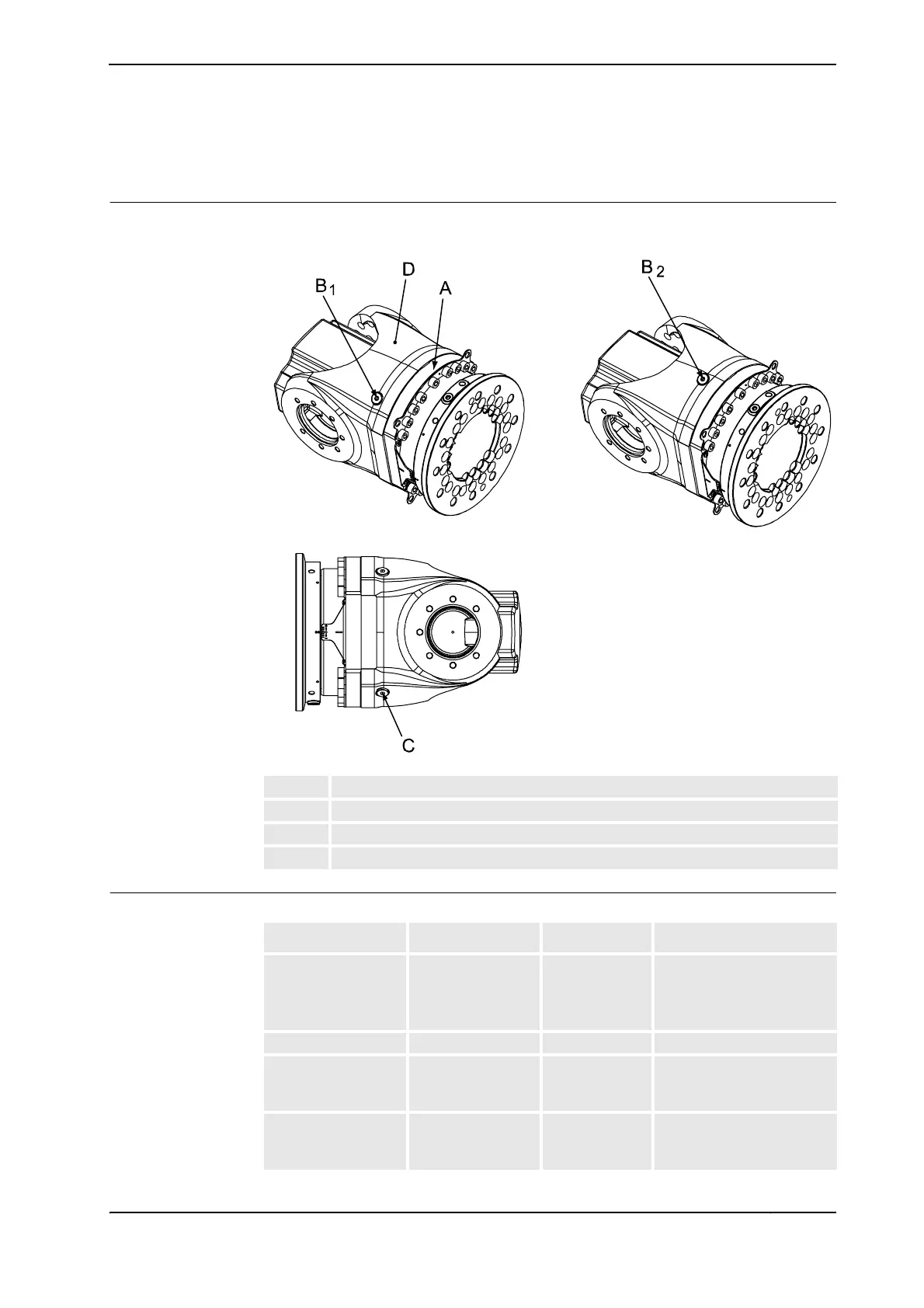

The axis 6 gearbox is located in the center of the wrist unit as shown in the figure below.
xx0200000114
Required equipment
A Gearbox, axis 6
B Oil plug, filling (notice the different locations of the plug, shown as B
1
and B
2
)
C Oil plug, draining (can be located on the turning disk instead)
D Label, specifies the type of oil in gearbox axis 6
Equipment, etc. Art. no. Amount Note
Lubricating oil 3HAC032140-001 850 ml
750 ml (with
insulated turning
disk)
Kyodo Yushi TMO 150
Oil collecting vessel Vessel capacity: 1,000 ml.
Oil exchange
equipment
3HAC17313-1 The content is defined in
section Special tools on
page 395.
Standard toolkit - The content is defined in
section Standard toolkit on
page 394.
Continues on next page
