9 Exploded views
9.3. Frame-Lower arm 1
4313HAC022033-001 Revision: E
© Copyright 2004 - 2008 ABB. All rights reserved.
9.3. Frame-Lower arm 1

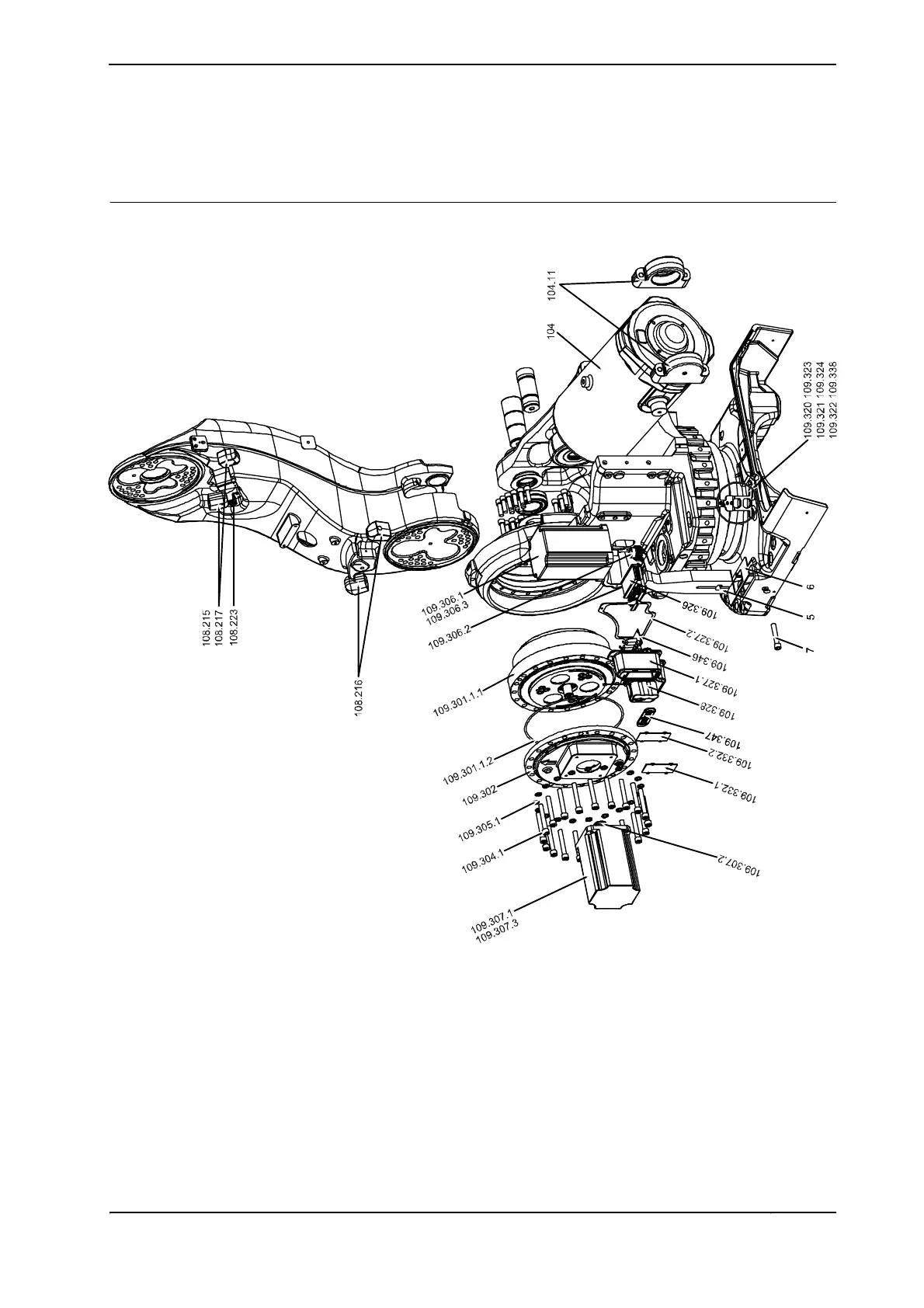

Exploded view
xx0200000330
Correction:
Pos 109.332.1 = 109.305 (3HAA1001-186 Washer 17x25x3)
Pos 109.332.1 = 109.304 (3HAB3409-92 Hex socket head cap screw M16x110)
