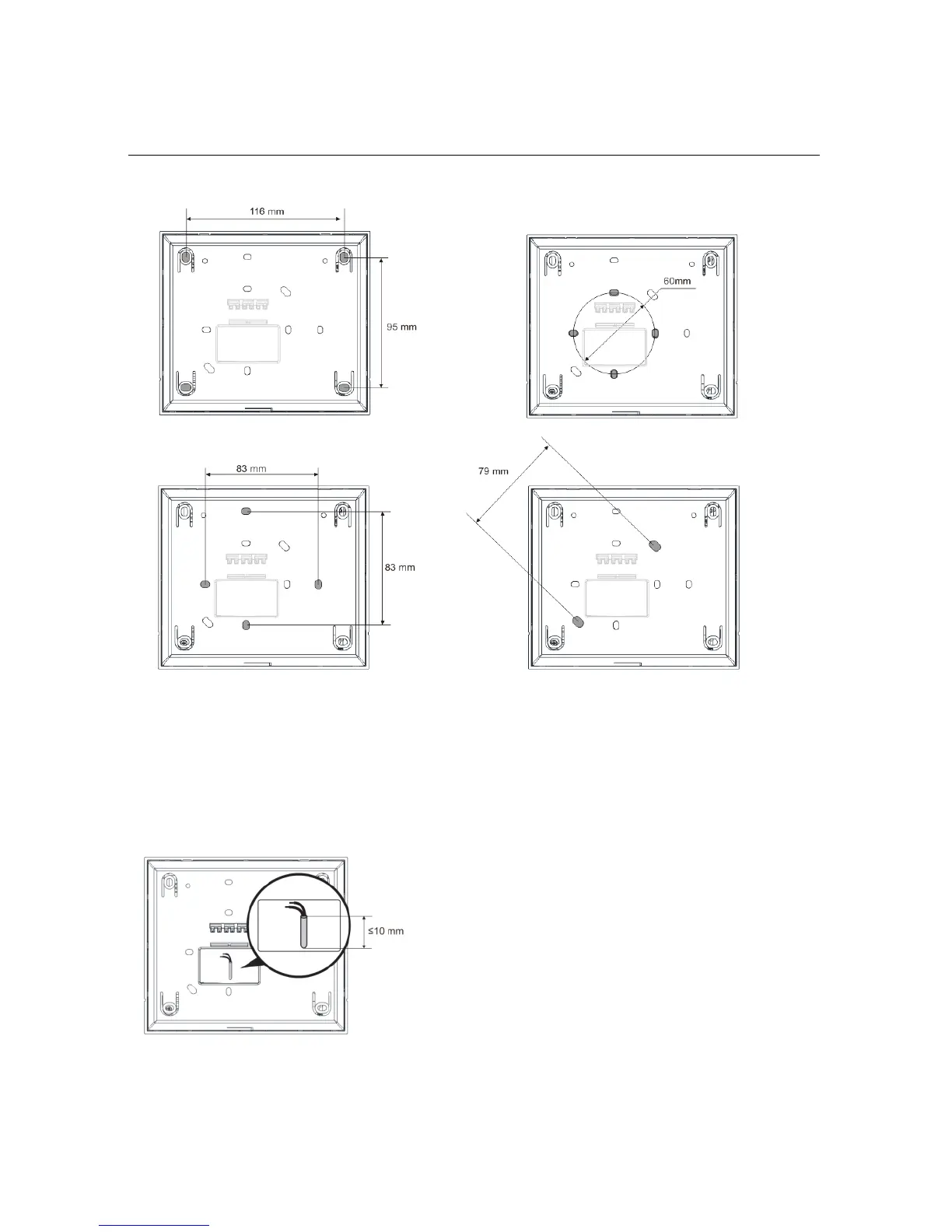

Installation dimension
1. The bottom of the device has screw holes for fastening on the wall according to the
above dimension instructions.
2. In addition, the bottom of the device can be fixed to the existing flush-mounted box.
The dimension of the compatible flush-mounted box is shown in graphics above.
Wiring
Fix the bottom of the device and connect it in accordance with the graphics. The
insulated section of the cable end must not be longer than 10mm.
