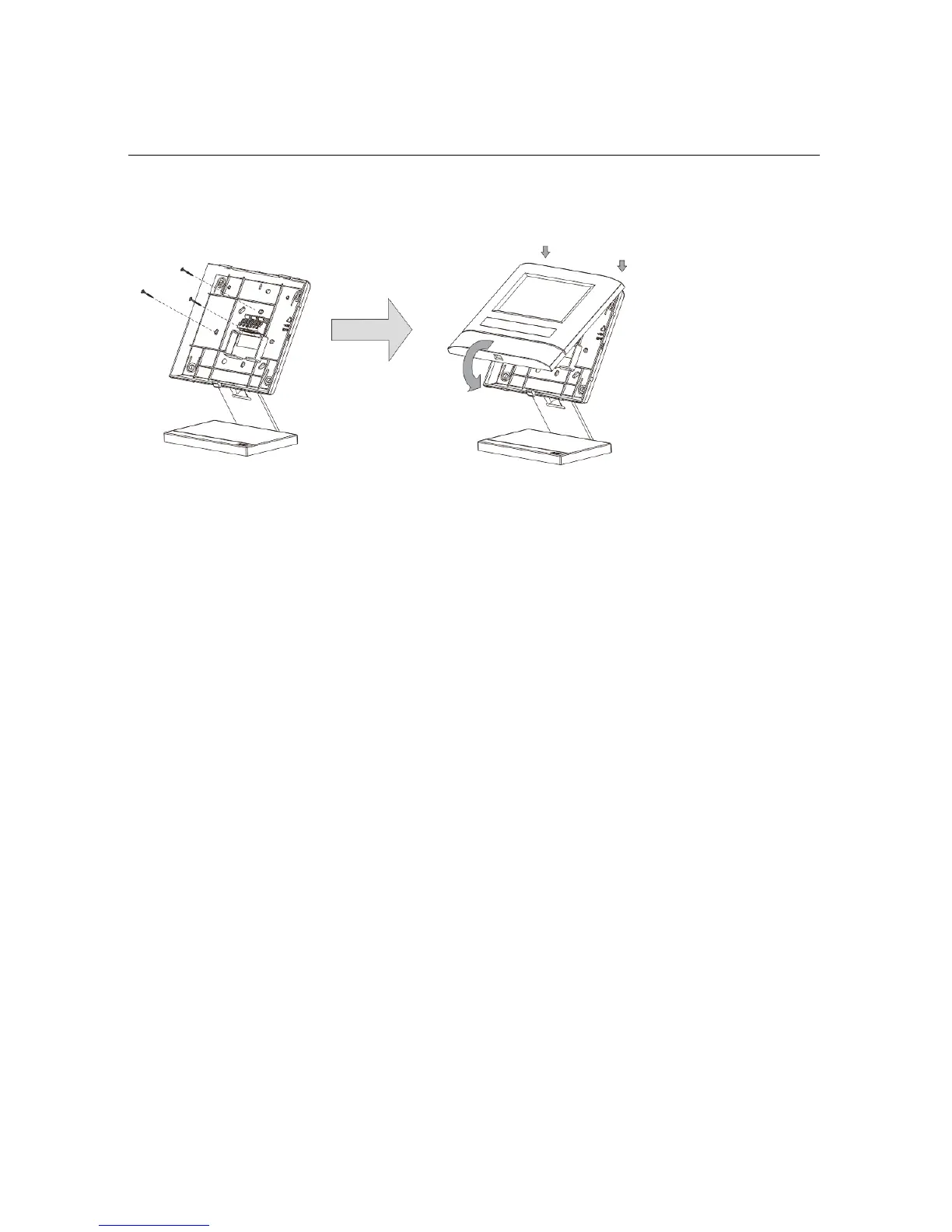

B. Desktop-mounted
Mounted with desktop bracket
1. Fix the bottom of the device to the desktop bracket.
2. Latch the upper part of the device onto its bottom part: place the upper side of the
device on the lock-in lugs and then press the bottom side onto the bottom part of
the device until it is caught by the clamp.
