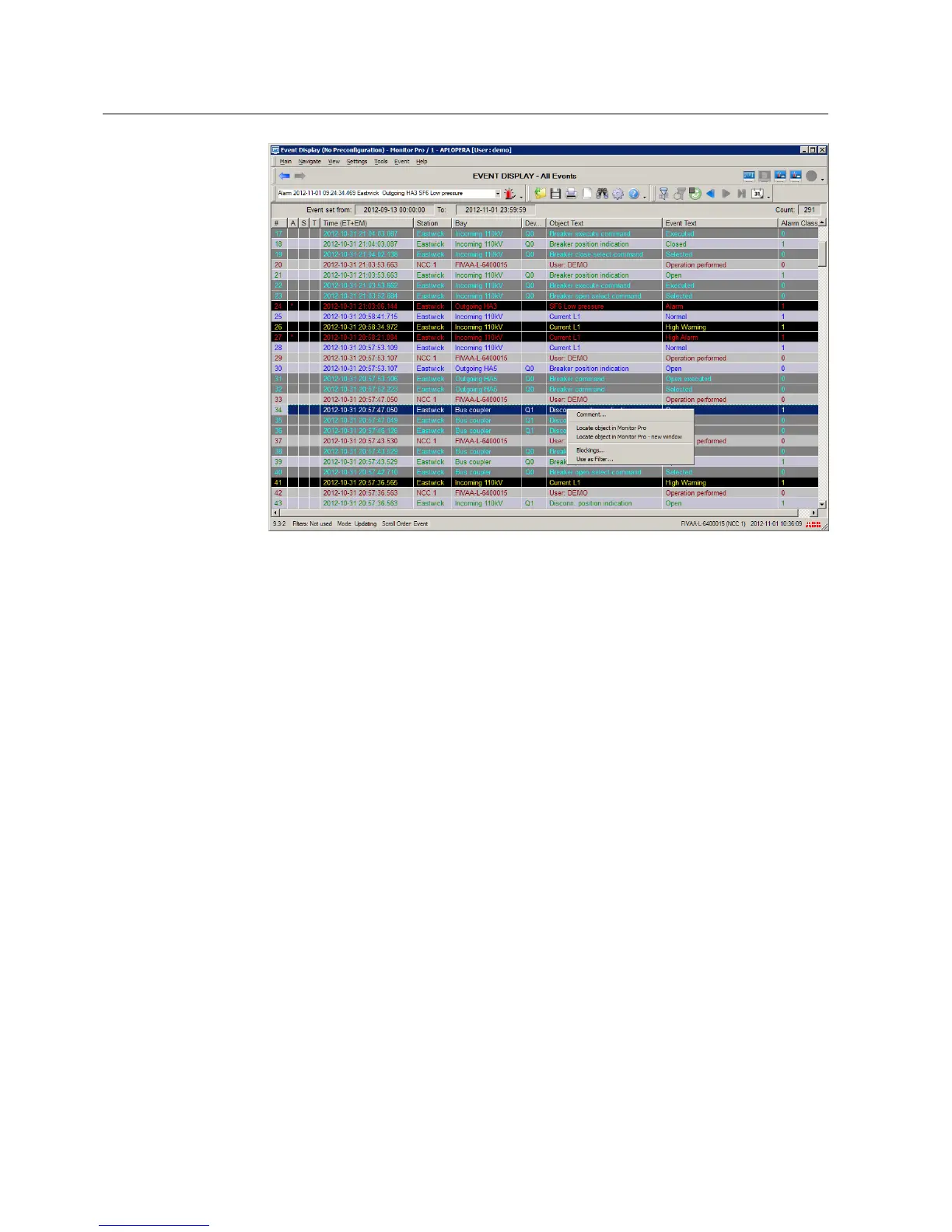

Figure 3.3: Event Display
The Event Display presents the data in a structured way for the user’ s convenience. Each
event is one row in the display. With default settings Event Display rows consist of a
time stamp, object identification, a signal text and a text indicating the status.
3.2.4 Alarm Display
The Alarm Display shows a summary of the present alarm situation of the supervised
process. Each alarm is normally presented as an alarm text row, which describes the
cause of the alarm in the process. With default settings the alarm text row normally has
a time stamp, an object identification, an object text and text indicating the alarm status.
See Figure3.4 for Alarm Display Template 1 and Figure3.5 for Alarm Display Template
2.
