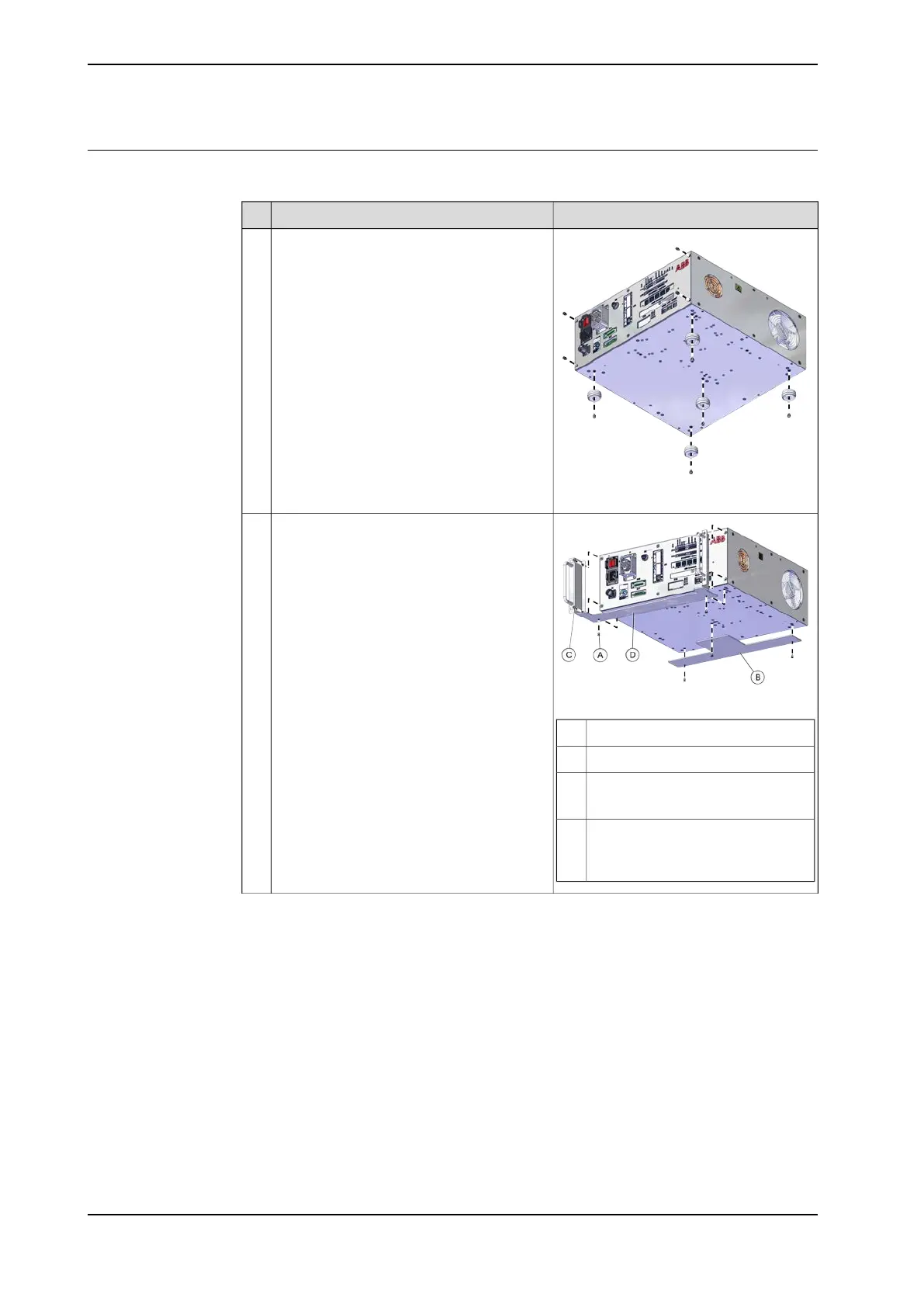

Installing the 19" rack mounting kit to the controller
Use this procedure to install the controller in a 19" cabinet.
InformationAction
xx2400000086
Remove the screws on the front panel and
the five feet from the bottom.
1
xx2400000686
Front mounting kitA
Back mounting kitB
Torx pan head screw M4x12 (4 pcs)
Tightening torque: 1.7-1.8 Nm
C
Torx countersunk screw M4x10 (5
pcs)
Tightening torque: 1.7-1.8 Nm
D
Assemble the front and the back mounting
kit.
2
Continues on next page
64 Product manual - OmniCore C30 Type A
3HAC089064-001 Revision: A
© Copyright 2024 ABB. All rights reserved.
3 Installation and commissioning
3.4.2 Mounting the controller with 19" rack mounting kit [3002-1]
Continued
