3.4.2 Mounting the controller with 19" rack mounting kit [3002-1]
General

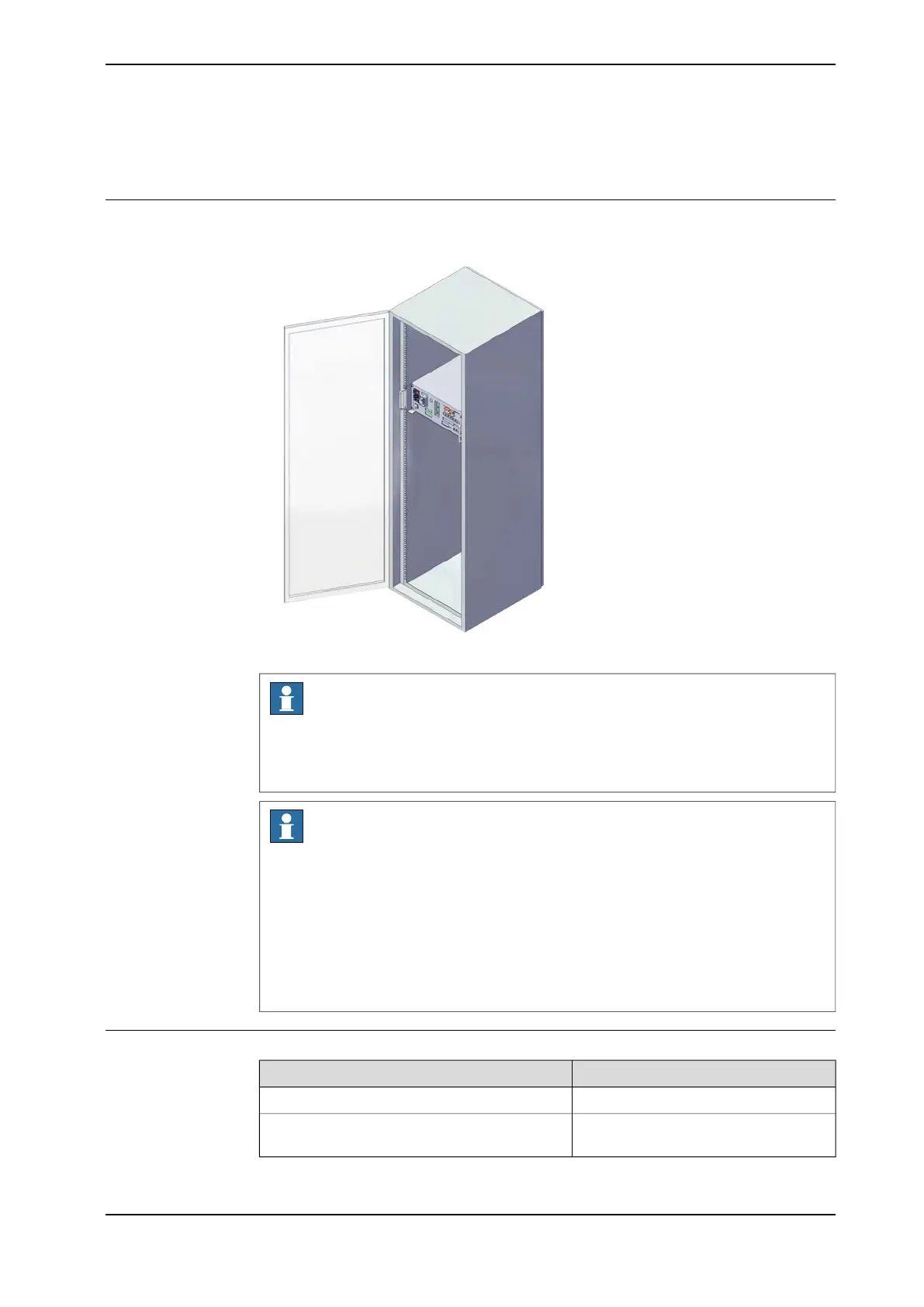

The OmniCore C30 Type A controller is designed to fit in a 19" cabinet.
xx2400000084
Note
If the controller is installed in a rack (cabinet), it must be fastened in a way that
prevents distortion of the controller cabinet. Preferably with angle bars along the
entire side edges of the controller.
Note
If the 19" rack mounting kit and vertical mounting kit are purchased at the same
time, the controller will be mounted with vertical mounting kit when delivered to
the customer from ABB. The 19" rack mounting kit will be delivered as a spare
part at the same time.
For detail information on replacing the vertical mounting kit to 19" rack mounting
kit, see Replacing the controller from vertical mounting kit to19" rack mounting
kit on page 70.
Required equipment
InformationEquipment
3HAC063918-001Mounting kit
See Standard toolkit for controller on
page 456.
Standard toolkit
Continues on next page
