Inputs and outputs for Pluto B46 and S46
Terminal on Pluto In-/Output name in software I/O type Local/Global
I0…I7 I_.0…I_.7 Safe Input Global
I30…I37 I_.30…I_.37 Safe Input Local
I40…I47 I_.40…I_.47 Safe Input Local
Q0 Q_.0 Safe Output (Relay) Global
Q1 Q_.1 Safe Output (Relay) Global
Q2 Q_.2 Safe Output (Transistor) Global
Q3 Q_.3 Safe Output (Transistor) Global
Q4 Q_.4 Safe Output (Relay) Local
Q5 Q_.5 Safe Output (Relay) Local
IQ10…IQ17 I_.10…I_.17 Safe Input Global
Q_.10…Q_.17 Nonsafe Output Local
IQ20…IQ27 I_.20…I_.27 Safe Input Local
Q_.20…Q_.27 Nonsafe Output Local
where “_” is the Pluto number
Failsafe inputs / Outputs (not failsafe) / Dynamic outputs
IQ10 IQ11
supply
Power
+24V
IQ12 IQ13
Identifier IDFIX
IQ15
IQ14 IQ16
I30
B
Inputs, individual failsafe
Q0
IQ17
I31 I32 I33 I34 I35 I36
Q2
A
I37
Pluto B46, S46
Pluto bus
I45I40 I41 I42 I43 I44 I46 I47
Inputs, individual failsafe
I0 I1 I2 I3 I6I5I4 I7
IQ21IQ20 IQ25IQ24IQ23IQ22 IQ27IQ26
BA
A
Q1
B
A
Q4
B
Q5
A
B
Q3
B
A
0V
0V
ID
CH
CL
1)
1) Not S46-6
AI AI AI
SR46SR45SR41
4L
1L
0L
Safety outputs
Digital/Analogue
Inputs, individual failsafe

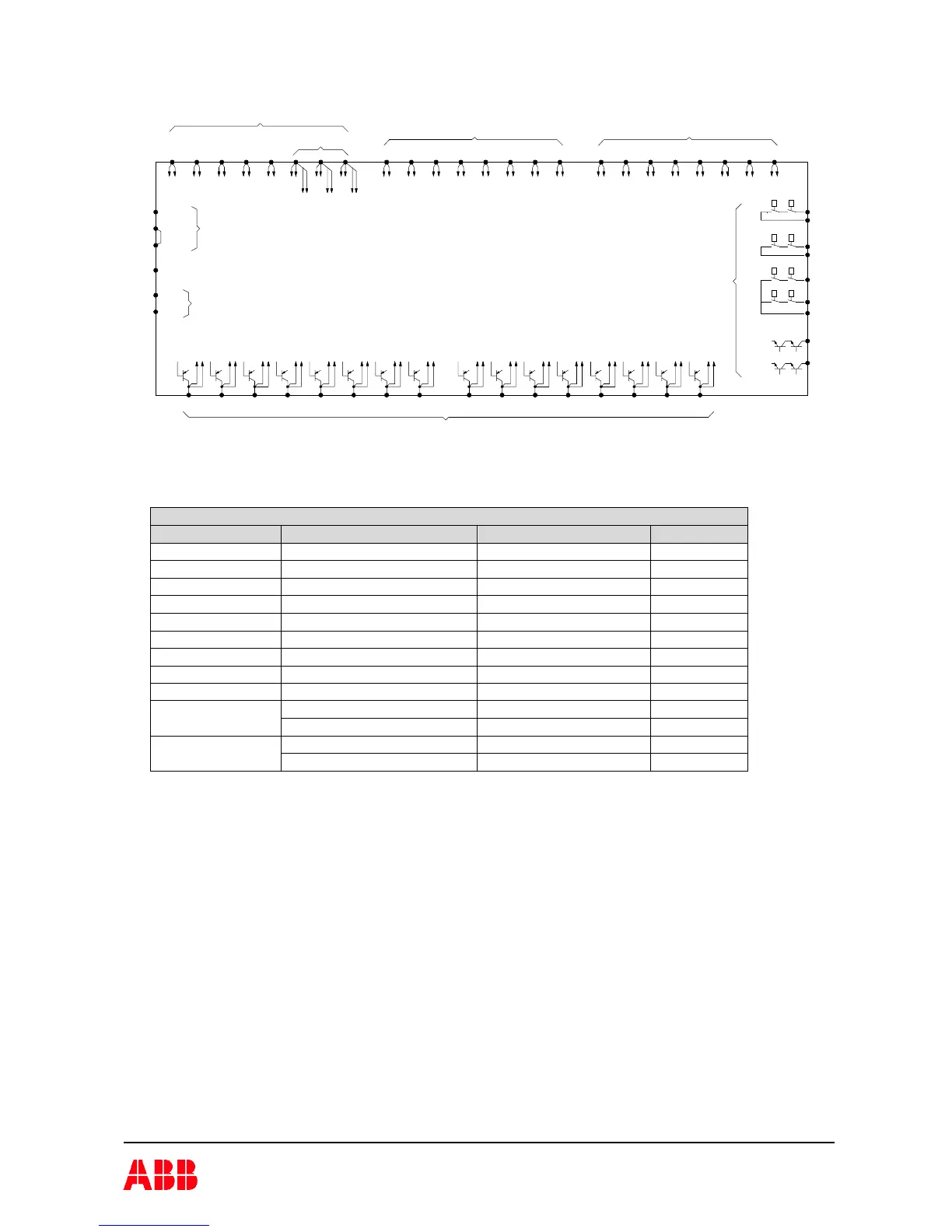

I/O overview PLUTO B46 and S46
