ABB ProcessMaster FEP610 - Connection to Remote Mount Design

28 OI/FEP610/FEH610-EN Rev. B | ProcessMaster FEP610, HygienicMaster FEH610
5.5.8 Connection to remote mount design
NOTE
Use wire end sleeves.
— Wire end sleeves 0.75 mm
2
(AWG 19), for shielding
(1S, 2S).
— Wire end sleeves 0.5 mm
2
(AWG 20), for all other wires.
The shields may not touch (signal short circuit).
Flowmeter sensor site

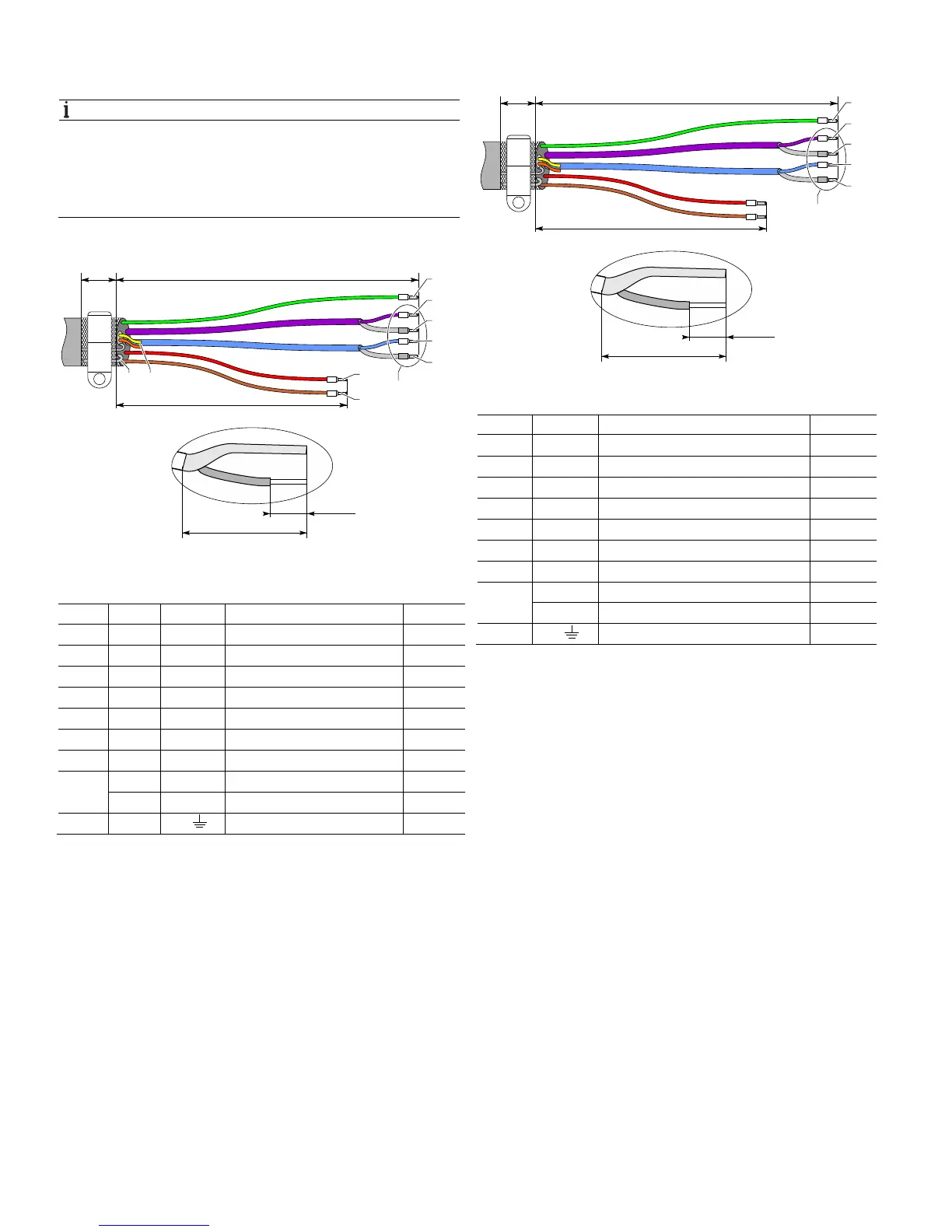

Fig. 40: Signal Cable Part No. D173D031U01, Dimensions in
mm (inch)
Pos. Terminal Function / comments Color
1 3 Measurement potential green
2 E1 Signal line violet
3 1S Shield for E1 —
4 E2 Signal line blue
5 2S Shield for E2 —
6 M2
Magnet coil red
7 M1
Magnet coil brown
8 — Not connected yellow
— Not connected
orange
9 SE /
Shield —
Transmitter side
Fig. 41: Signal Cable Part No. D173D031U01, Dimensions in
mm (inch)
Pos. Terminal Function / comments Color
1 3 Measurement potential green
2 E1 Signal line violet
3 1S Shield for E1 —
4 E2 Signal line blue
5 2S Shield for E2 —
6 M2
Magnet coil red
7 M1
Magnet coil brown
8 — Not connected yellow
— Not connected
orange
9 SE /
Shield —
Change from two to one column
70 (2.76)
90 (3.54)
A
8 ( )0.31
25 ( )0.98
A
G12025
1
2
3
4
5
7
6
89
20
(0.8)
50 (1.97)
70 (2.76)
A
8 ( )0.31
25 ( )0.98
A
G12026
1
2
3
4
5
20
(0.8)
