Interface connectors connection

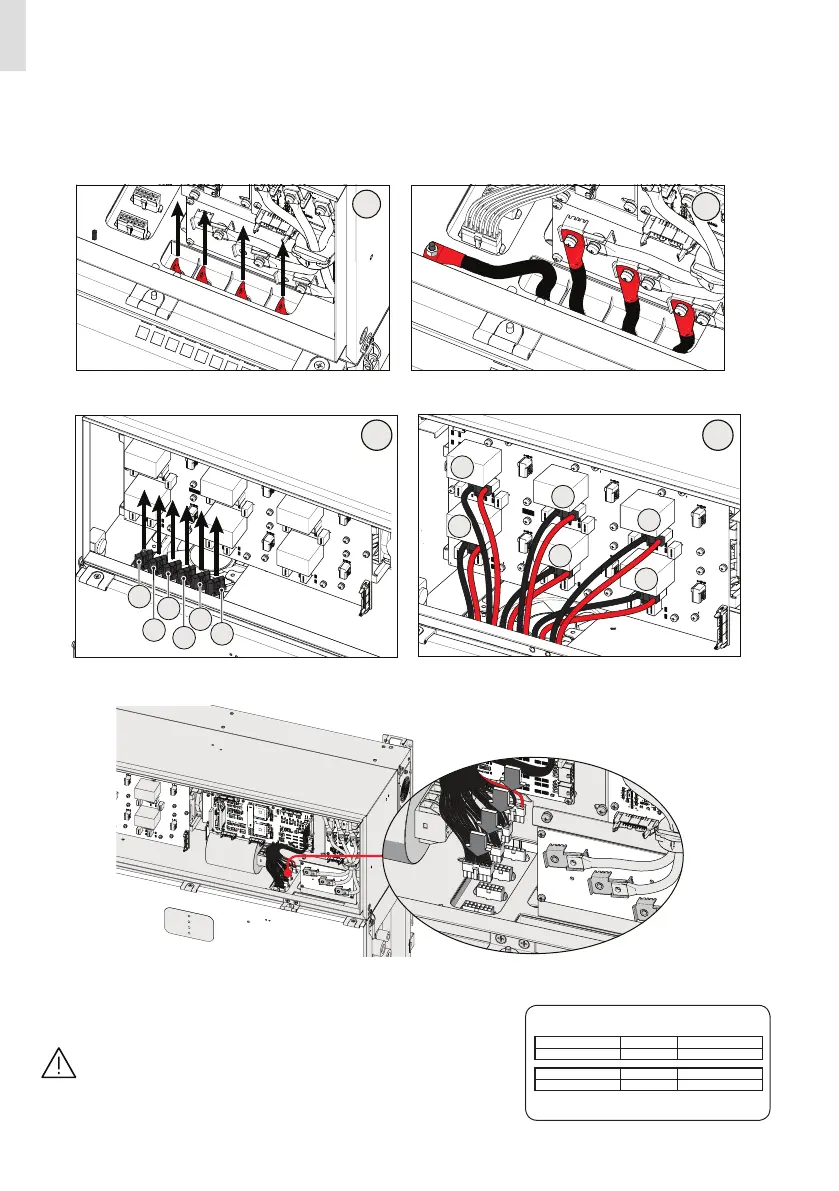

Last operation before proceed with the wiring and connections of AC and DC sources is to connect the interface connectors that
allow the power and the communication connection between the power module (01) and the wiring box (02):
Connection of the AC interface cables:
• Connect the R, S, T cables coming from the wiring box to the respective anchor points R, S, T in the AC interconnection board (58)
using the screws supplied with the power module component kit (tightening torque 4Nm).
• Connect the earth cable to the dedicated point next to the AC interconnection board (58) (see the picture) using the M5 nut and
the two serrated lock washers supplied with the power module component kit (tightening torque 2Nm).
Connection of the DC interface cables:
• Connect the 6 connectors coming from the wiring box in the dedicated connectors of the DC interconnection board (59)
Connection of the signal interface cables:
• Connect the signal interface cables on the related interface signal connectors (30) starting from the back connector.
For connection to the network in South Africa.
According to NRS097-2-1 requirements, at the end of installation it is
mandatory to apply the label at the left (supplied with the inverter)
near the power module regulatory label.
A4 1:1 1/1
South Africa network standard label for
PVS-120-TL (SIRIUS)
LABEL MATERIAL: 3M type 7331 (UL R/C, PGJI2)
INKS: Refer to UL File MH16411
LABEL CONTENT: Fixed as shown in the picture
SIZE: 45 mm (height) x 90 mm (width)
A.Statuti
G.Iannuzzi
S.Soldani
S.Bindi
WARNING!
NRS 097-2-1:2017 (South Africa)
09/04/2018
09/04/2018
09/04/2018
09/04/2018
XLP.V2Q10.0AL
AA
It is not intended to connect this Inverter to a network with an higher
Network Impedance.
Reference Impedance
Fault Level
0.156
1475
Total [ Ω ]
I_SC [ A ]
3.9
1018
X/R ratio
S_SC [kVA] (three phase)
All
material
used
and finished product, must meet the requirements of the current RoHS
recti
i
ve 2002/95/EC.
Title
Issued
Modified
D
D
esign approved
Elec. Eng. approved
Mfg. approved
Size Scale Dim. in mm Sheet Drawing No. Revision
