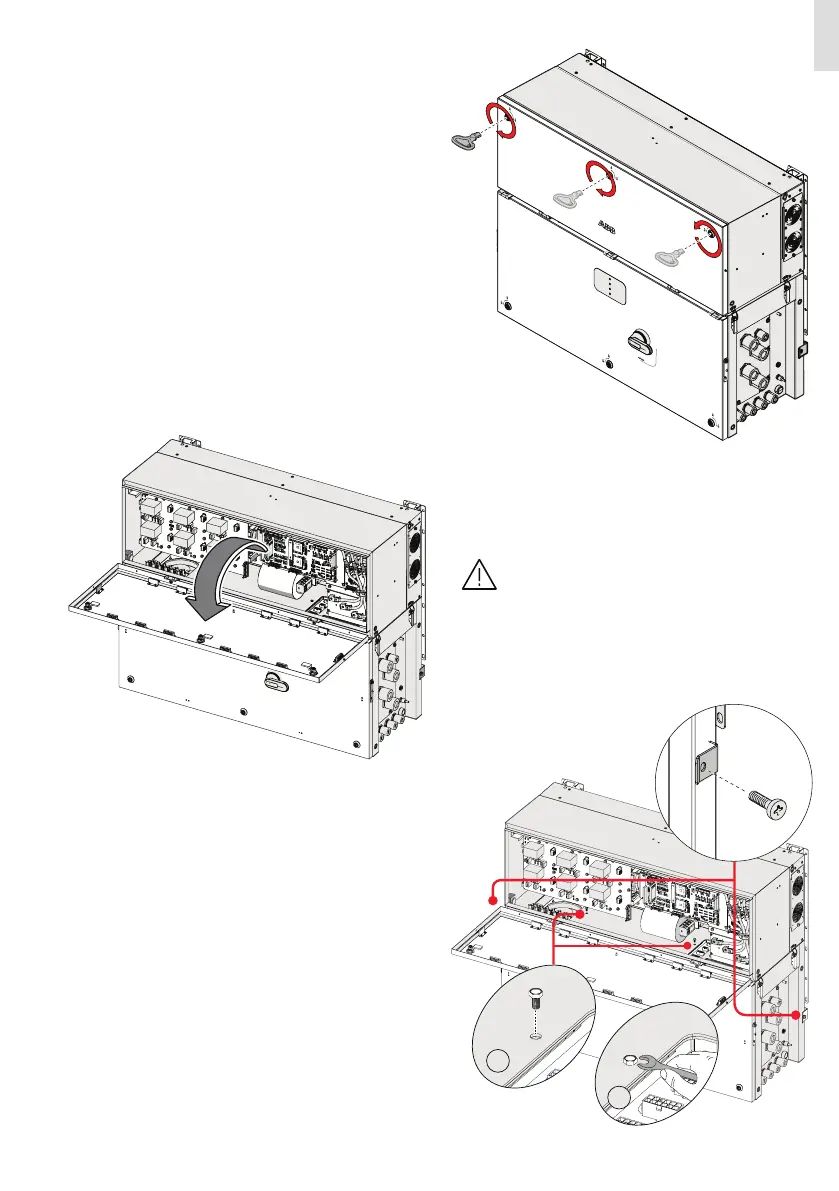

• Using the key tool provided with the component kit content
in the wiring box package, open the three cover quarter cam
locks (05) following the proper ways as shown in the related
silkscreens on the cover.
Final fastening operations
• To reach the two junction screws and complete the power
module and the wiring box coupling, open the front panel of
the power module and screw the two screws as shown in the
figure
• Tighten the two hexagonal junction screws with a tightening
torque of 10 Nm.
• Tighten the two side screws (supplied) with a tightening
torque of 5 Nm, to avoid the tilting of the bottom part of the
inverter.
• Open the cover and use the cover support brackets (14) to
lock the cover in open position.
Pay attention to properly secure the cover sup-
port brackets (14) in order to avoid damaging of
the cover!
