118 Product manual - PVS-175-TL;A.1 Version
EN

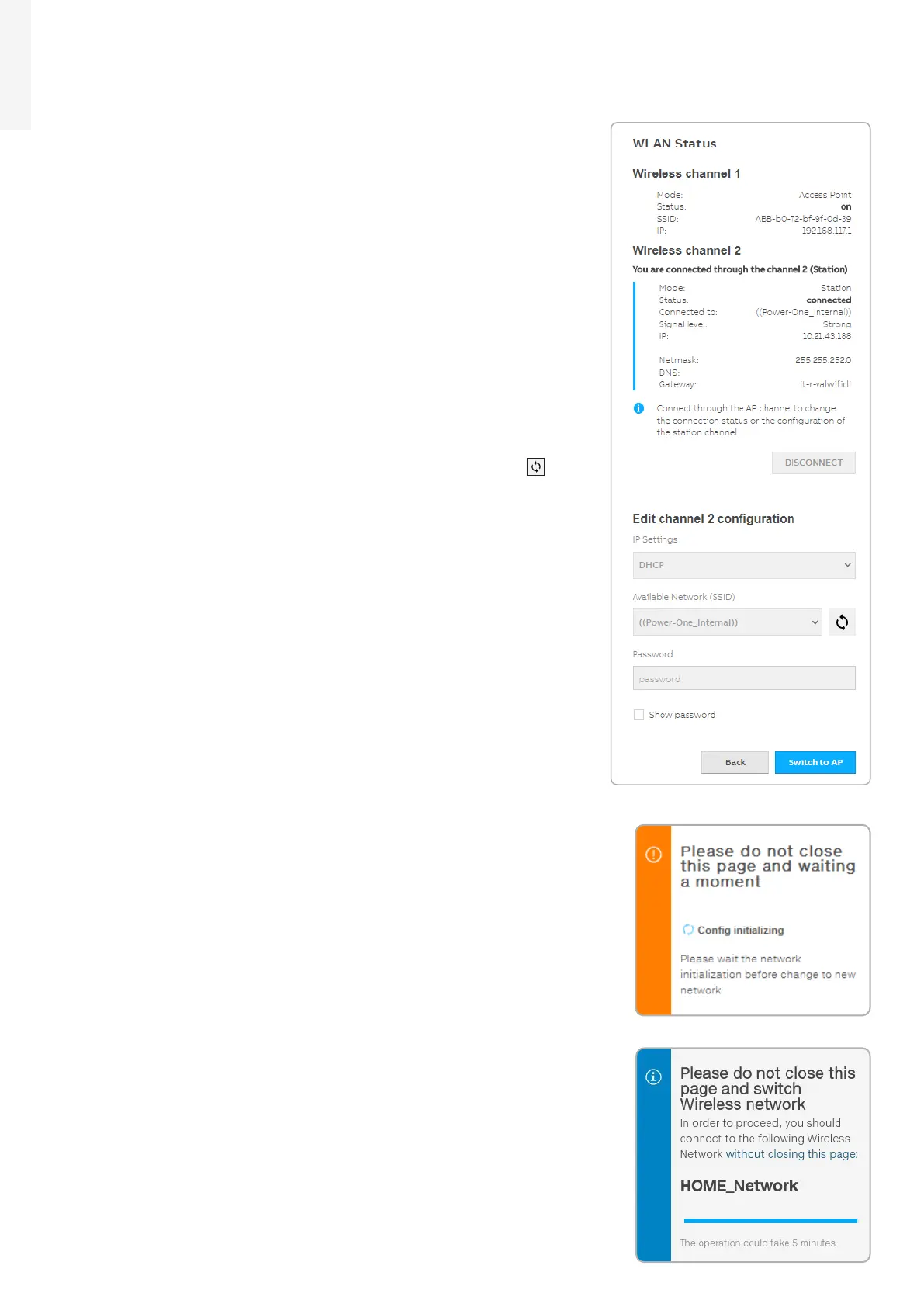

In case of connection to channel 2 (“Station Mode”), it will be required to enter the wireless network
parameters (set on the router) and follow the subsequent procedure:
• IP Selection Mode: DHCP or Static:
By selecting the DHCP function (default setup) the router will
automatically assign a dynamic IP address to the inverter whenever
it tries to connect to the user network.
With Static, the user can assign a fixed IP address to the system.
The data which has to be entered in order for IP static address
assigning to take place will appear. Complete the additional fields
at the bottom of the screen (all the fields are mandatory with the
exception of the secondary DNS server).
• SSID (name of wireless network):
Identify and select your own wireless network from all those
shown in the SSID field (you can carry out a new search of the
networks that can be detected with the Update button ).
Once the network has been selected, confirm.
• Password (wireless network password):
Enter the password for the destination network (if necessary) and
start the connection attempt (it will take a few seconds).
• Click on “Connect”
•
Once the inverter is associated with a wireless network, the user must
switch the tablet/smartphone/PC to the same wireless network
which the inverter is connected.
