4.6 List of supplied components

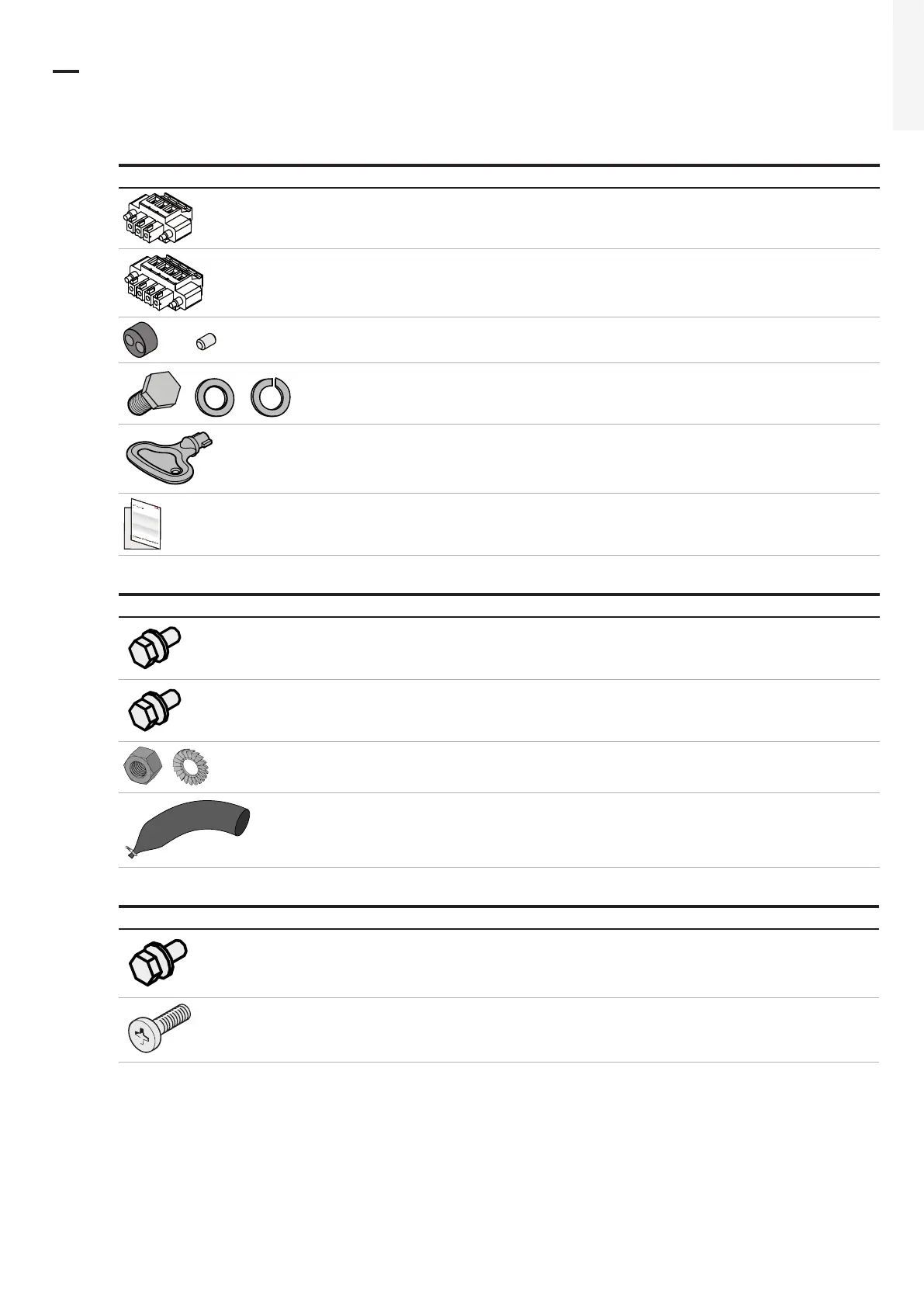

The table below shown the available component in the wiring box (02) package:
Component Quantity
Alarm and aux relay (41) connectors (pre-installed on
communication board (26))
2
Remote ON/OFF (42) and RS485 (43) connectors (pre-
installed on communication board (26))
3
Two-hole gasket (6mm Ø) for PG21 service cable glands (13)
and cap
2 + 2
M8 bolt and washers for external protective earth connection
point (10)
1 + 1 + 1
Key tool for front cover quarter cam-lock (05) 1
Technical documentation
The table below shown the available component in the power module (01) package:
Component Quantity
M6 bolts with washers for AC interface connection point
(phases) (34)
3
M5 bolts with washers for AC interface connection point
(MID BULK) (34)
1
M5 nut and washers for Interface protective earth point (36) 1 + 2
Sheathing for DC interface cables (33) 2
The table below shown the available component in the bracket 03 package:
Component Quantity
M8 bolts with washers for mechanically securing the half-
brackets
2
M6 screws for mechanically securing the wiring box to the
bracket
2
