4. Lifting and transport
4.1 Transport and handling
Transport of the equipment, especially by road, must be carried out with means for protecting the
components (in particular, the electronic components) from violent shocks, humidity, vibration, etc.
LIFTING – U During handling, do not make any sudden or fast movements that could create
dangerous swinging.
4.2 Equipment weight
Device
Weight
(kg/lb)
Lifting
points
Holes for handles (optional) or
Eyebolts UNI2947 (not supplied)
Power module (01)
76.5 kg / 168 lbs 4 M8. Kit of handles (04) (to be ordered)
Wiring box (02)
76.8 kg / 169 lbs 4 M8. Kit of handles (04) (to be ordered)
4.3 Storage
ATTENTION – A DO NOT store the equipment (also valid for spare parts units) in a location exposed
to severe weather conditions (e.g. rain, snow or a high level of humidity). Always comply with
storage temperature indicated in “Characteristics and technical data” paragraph in this manual.

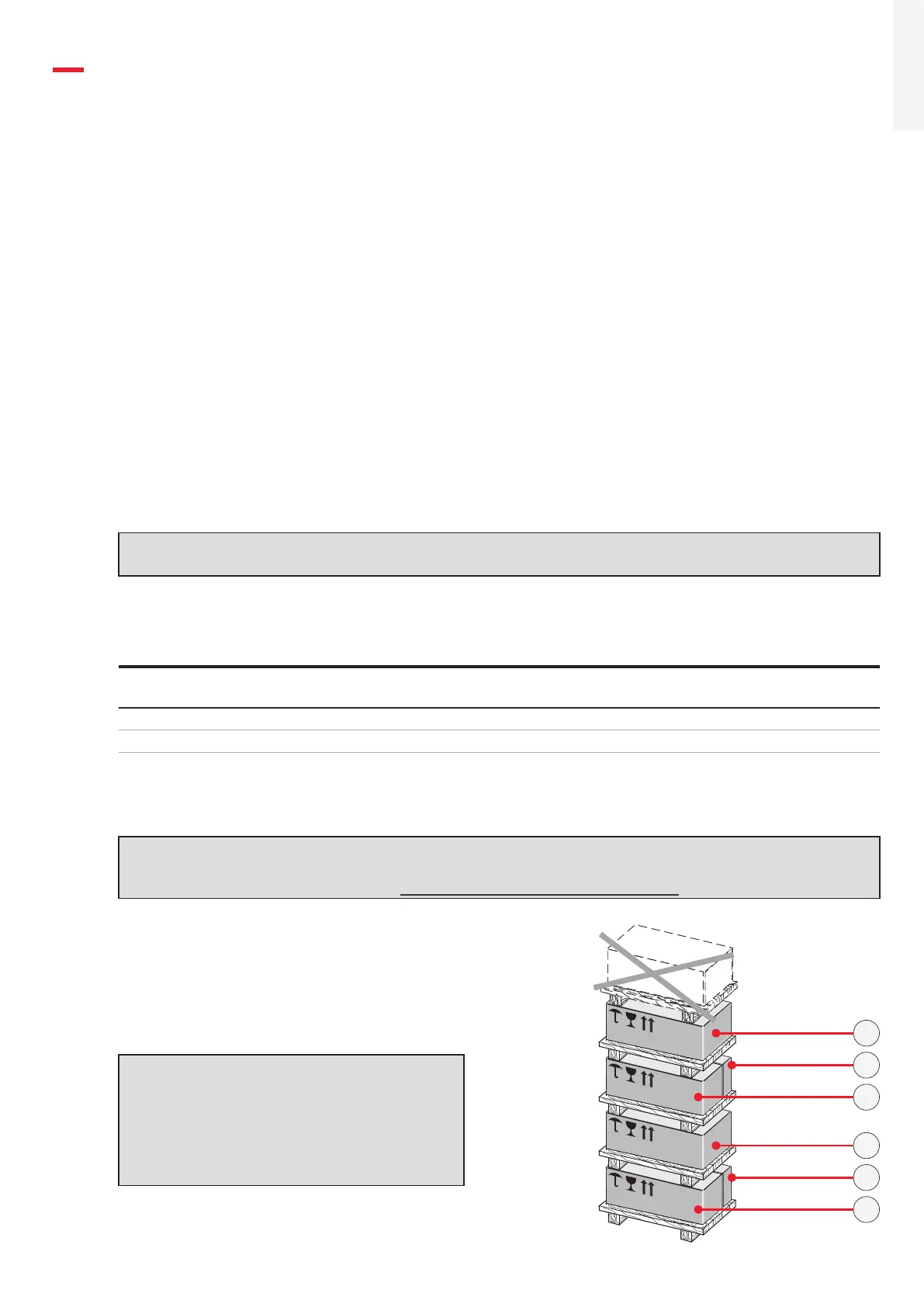

If the package with the power module part is
stored correctly, it can withstand a maximum
load of 2 stacked units (power module+wiring
box+bracket).
ATTENTION – A DO NOT stack the package
with equipment or products other than
those indicated.
ATTENTION – A Accessory components
that are in separate packages can be
piled separately.
02
02
03
03
01
01
