133Maintenance
EN
8. Operations on Internal DC disconnect switches (19)

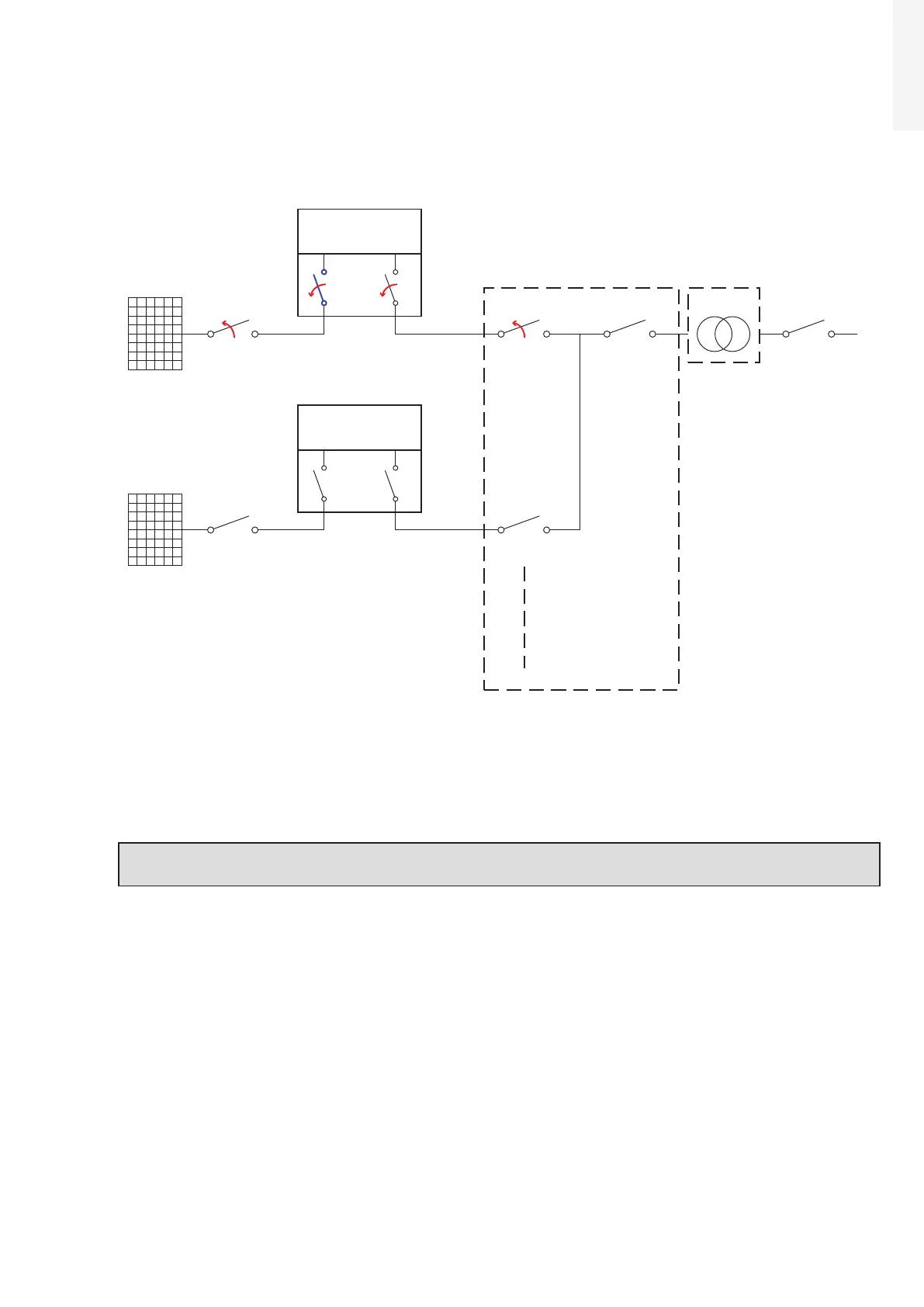

Open all the internal DC switches (19) (1, 2 and 3, blue in the below picture).
PV Strings
External DC
Switch
Internal DC
Switches
Internal AC
Switch
PVS-175-TL
(Unit under service)
PWRMOD
WBOX
OPEN+LOTO
PV Strings
External DC
Switch
Internal DC
Switches
Internal AC
Switch
PVS-175-TL
PWRMOD
WBOX
External LV
AC Switch
External Main LV
AC Switch
External LV
AC Switch
LV Distriubution
Panel
MW Switch
LV/MW
Transformer
OPEN+LOTO
OPEN
+
LOTO
OPEN
+
LOTO
Affix designated lock preventing operation onto all DC disconnect switches (19), affixing designated
tags (LOTO procedure).
Check on the status LEDs (08) the shutdown command has been carried out (Missing DC voltage status):
All LEDs OFF.
NOTE – D The time needed for the complete shut-down of the LEDs depends by the input voltage
of the inverter. The complete shut-down of the LEDs may require some minutes.
