Section 3 1MRK 500 124-UEN
HMI500
26 Operation Manual
Distributed busbar protection REB500
3.5.7.1 Overview

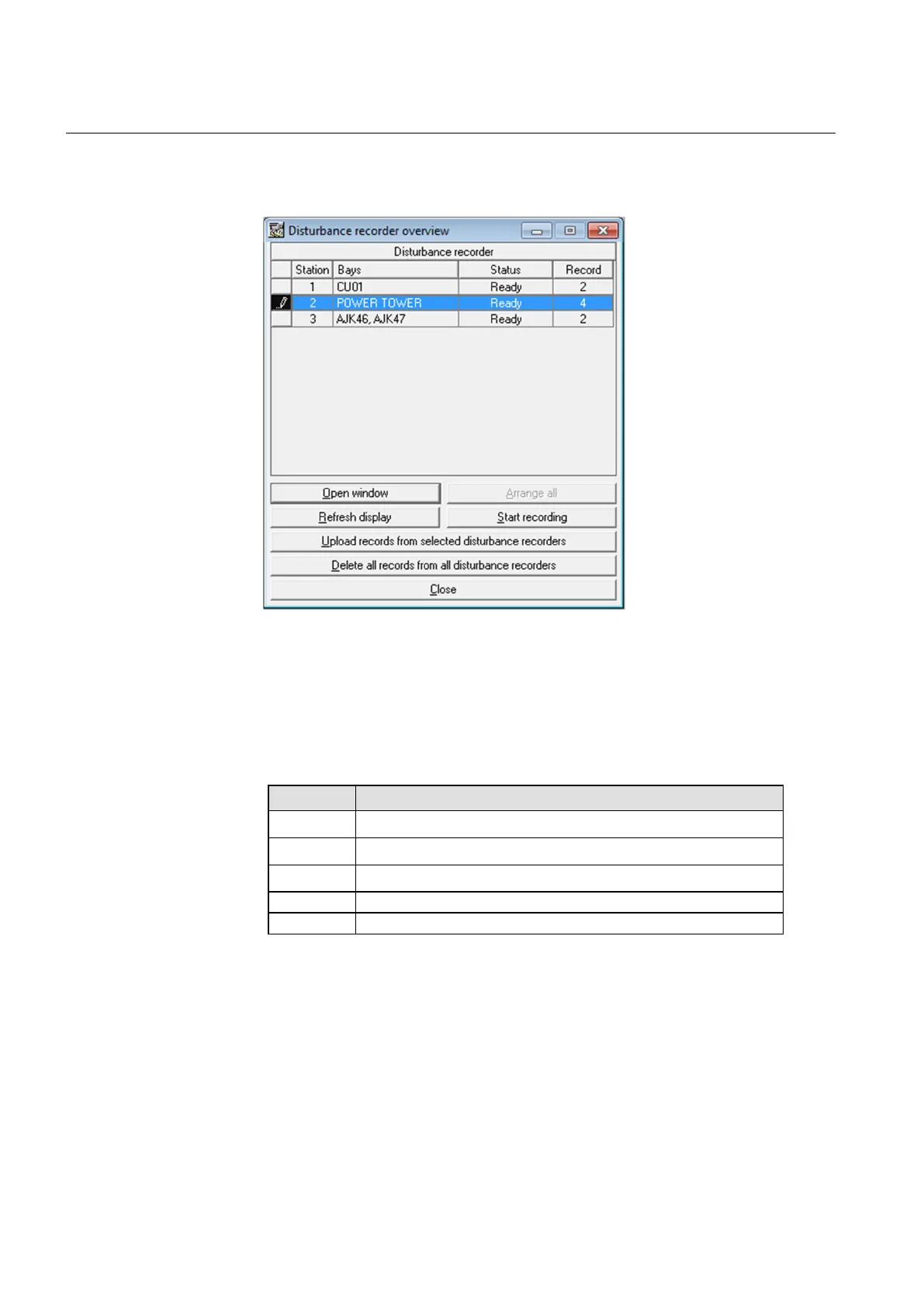

Figure 16 Disturbance recorder overview
This tab displays the number of records and the current status of the devices. The
column “Bays” indicates the bay names of the individual records. The record of the
central unit can be seen from the “bays” entry “CU01”. See Table 6 for an
explanation of the device statuses.
Table 6 Disturbance recorder statuses
Status Description
Ready Disturbance recorder is ready to record disturbances.
Recording A record procedure is in progress.
Not ready The disturbance recorder has to be restarted in the detailed view of the bay
Disturbance recorder memory is full
Disturbance recorder function is not active for the bay
