• Self-supervision status: Main menu/Diagnostics/Internal events
• Status for inputs and outputs: Main menu/Test/Function status, browse to the
function group of interest.
• Remote communication related signals: Main menu/Test/Function status/
Communication/Remote communication
Test the correct functionality by simulating different kind of faults. Also check that
sent and received data is correctly transmitted and read.
A test connection is shown in figure
26. A binary input signal (BI) at End1 is
configured to be transferred through the communication link to End2. At End2 the
received signal is configured to control a binary output (BO). Check at End2 that the
BI signal is received and the BO operates.
Repeat the test for all the signals configured to be transmitted over the communication
link.
IEC07000188 V1 EN

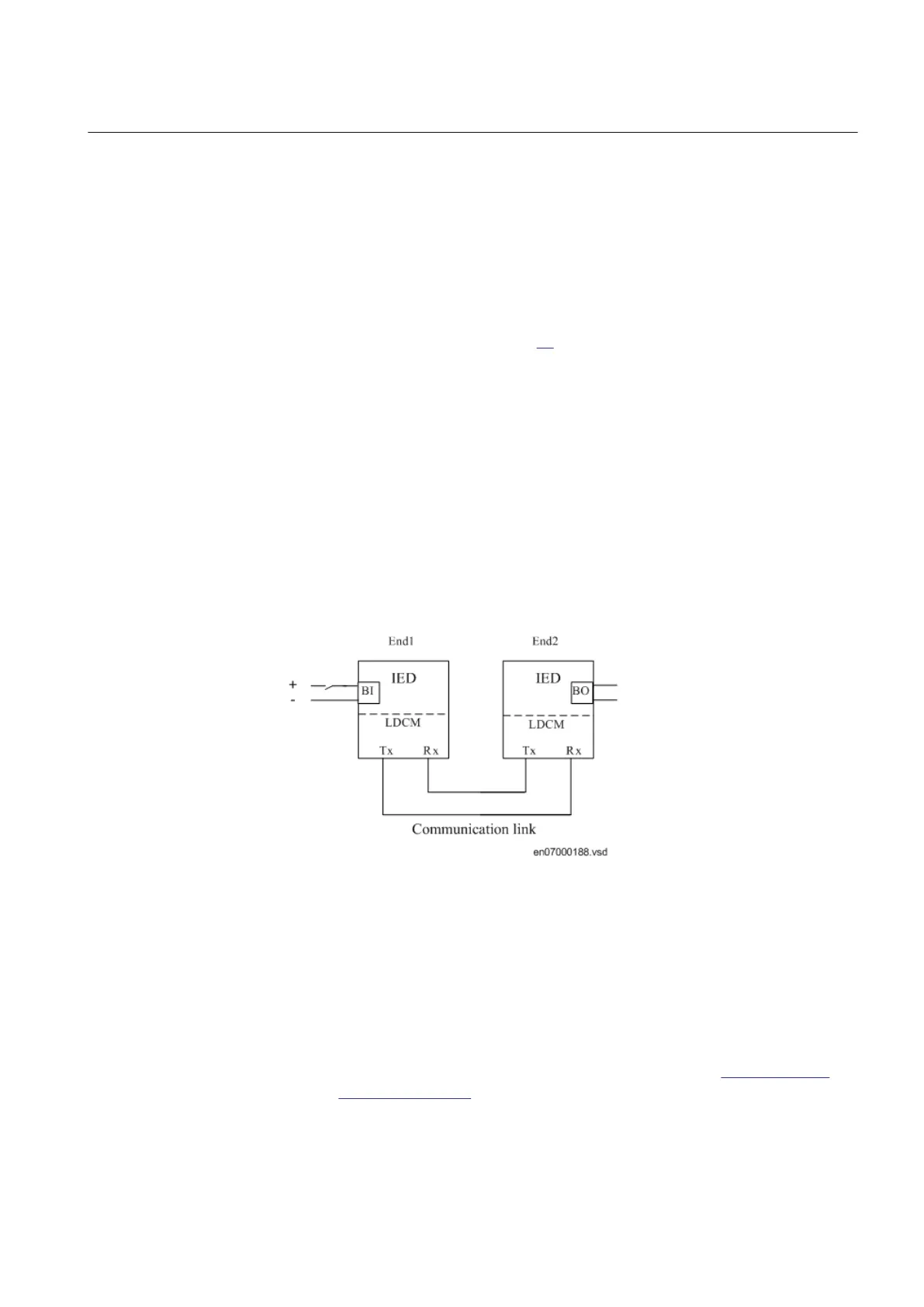

Figure 26: Test of RTC with I/O
10.16 Basic IED functions
10.16.1 Parameter setting group handling SETGRPS
Prepare the IED for verification of settings as outlined in section "Requirements" and
section "Preparing for test" in this chapter.
1MRK 511 360-UEN A Section 10
Testing functionality by secondary injection
Bay control REC670 2.1 IEC 189
Commissioning manual
