If the IEC61850-9-2LE communication is interrupted during current
injection, the report tool in PCM600 will display the current that was
injected before the interruption.
IEC10000032 V1 EN

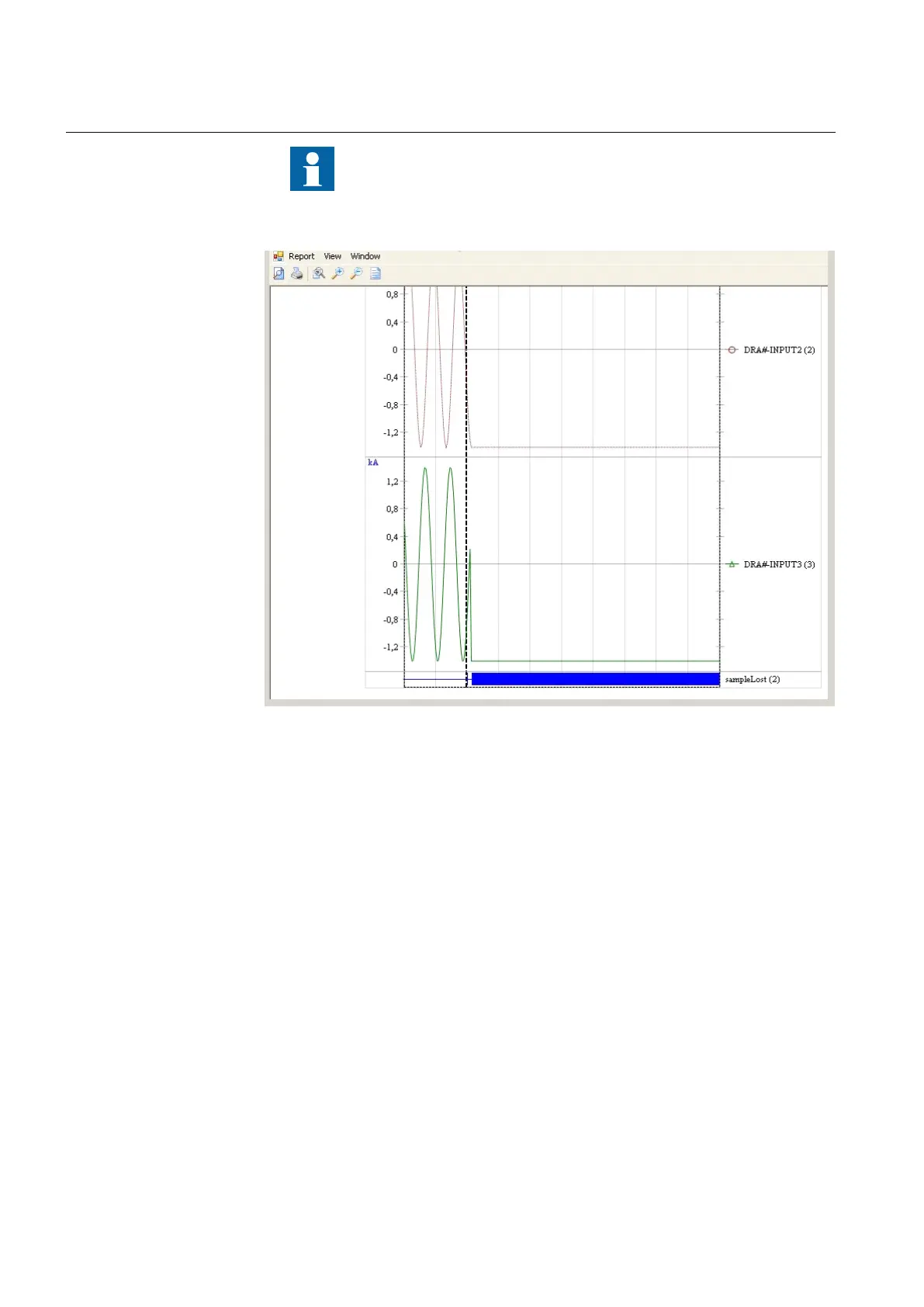

Figure 11: PCM600 report tool display after communication interruption
9.7 Testing the protection functionality
Each protection function must be tested individually by secondary injection.
• Verify operating levels (trip) and timers.
• Verify alarm and blocking signals.
• Use the disturbance handling tool in PCM600 to evaluate that the protection
function has received the correct data and responded correctly (signaling and
timing).
• Use the event viewer tool in PCM600 to check that only expected events have
occurred.
Section 9 1MRK 511 360-UEN A
Testing IED operation
74 Bay control REC670 2.1 IEC
Commissioning manual
