Character size Rows in view Characters on row
Small, mono-spaced (6x12
pixels)
5 rows
10 rows with large screen
20
Large, variable width (13x14
pixels)
4 rows
8 rows with large screen
min 8

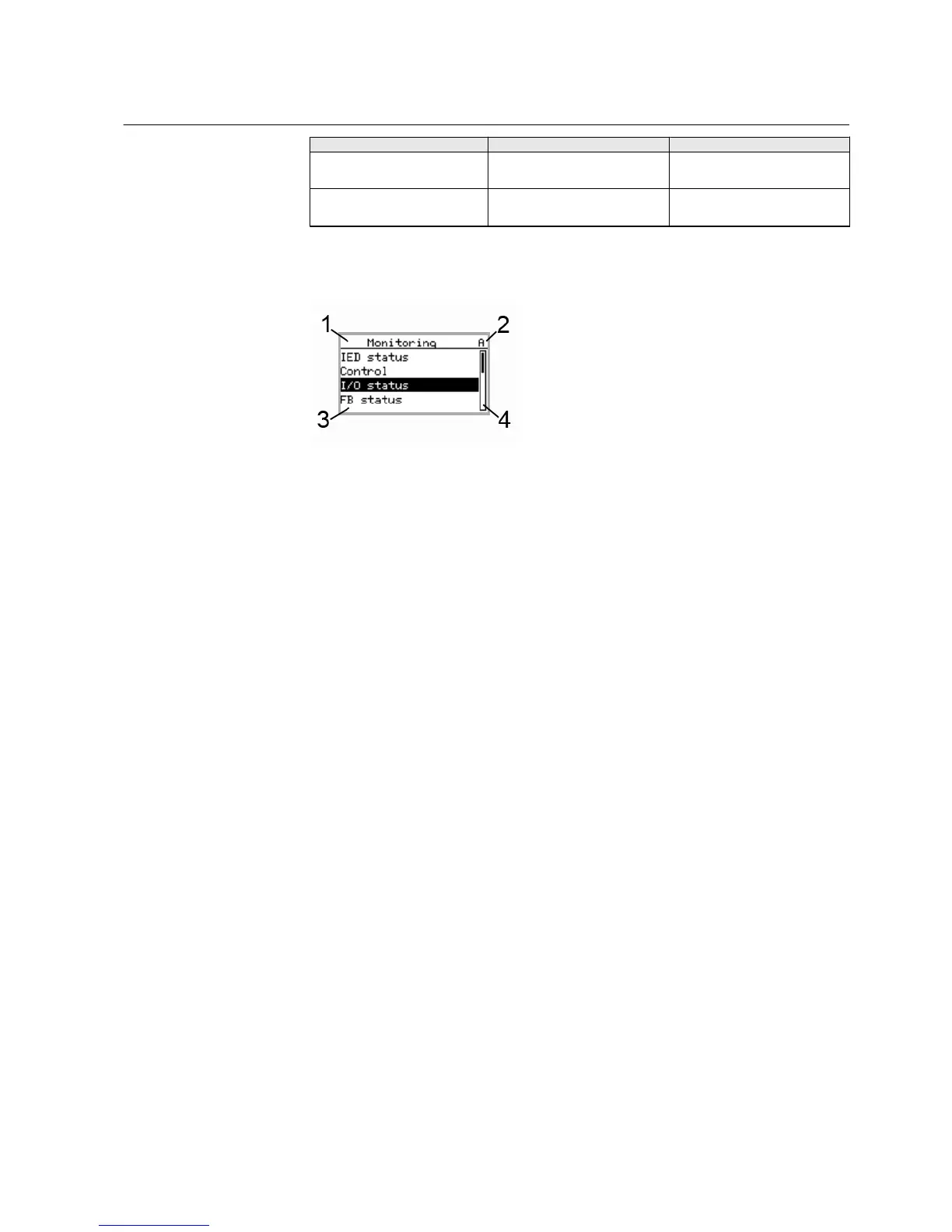

The display view is divided into four basic areas:
A070705 V3 EN
Figure 2: Display layout
1 Header
2 Icon
3 Content
4 Scroll bar (appears when needed)
• The header area at the top of the display view shows the current location in the
menu structure.
• The icon area at the upper right corner of the display shows the current action or
user level.
Current action is indicated by the following characters:
• U: Font/Firmware is being updated
• S: Parameters are being stored
• !: Warning and/or indication
Current user level is indicated by the following characters:
• V: Viewer
• O: Operator
• E: Engineer
• A: Administrator
• The content area with four rows shows the menu content. With larger character
size, the content area has only three rows.
• If the menu contains more rows than the display can show at a time, a scroll bar
appears on the right.
The display is updated either cyclically or based on changes in the source data such
as parameters or events.
1MRS756499 A Section 3
RED615 overview
RED615 19
Operation Manual
