The list of IED's basic measurements is shown.
2.
Scroll the view with and .
6.1.3 Recorded data
The IED is provided with intelligent and flexible functionality which collects different
kinds of data, for example, in case of fault event. The data gives substantial
information for the post fault analysis.
• Disturbance records
• Fault records
• Events
6.1.3.1 Creating disturbance recordings
Normally disturbance recordings are triggered by the IED applications but the
recording can also be triggered manually.
1. Select Main Menu/Disturbance records.
2.
Select Trig recording with or .
3.
Press , change the value from False to True with or and press
again.
A070861 V3 EN

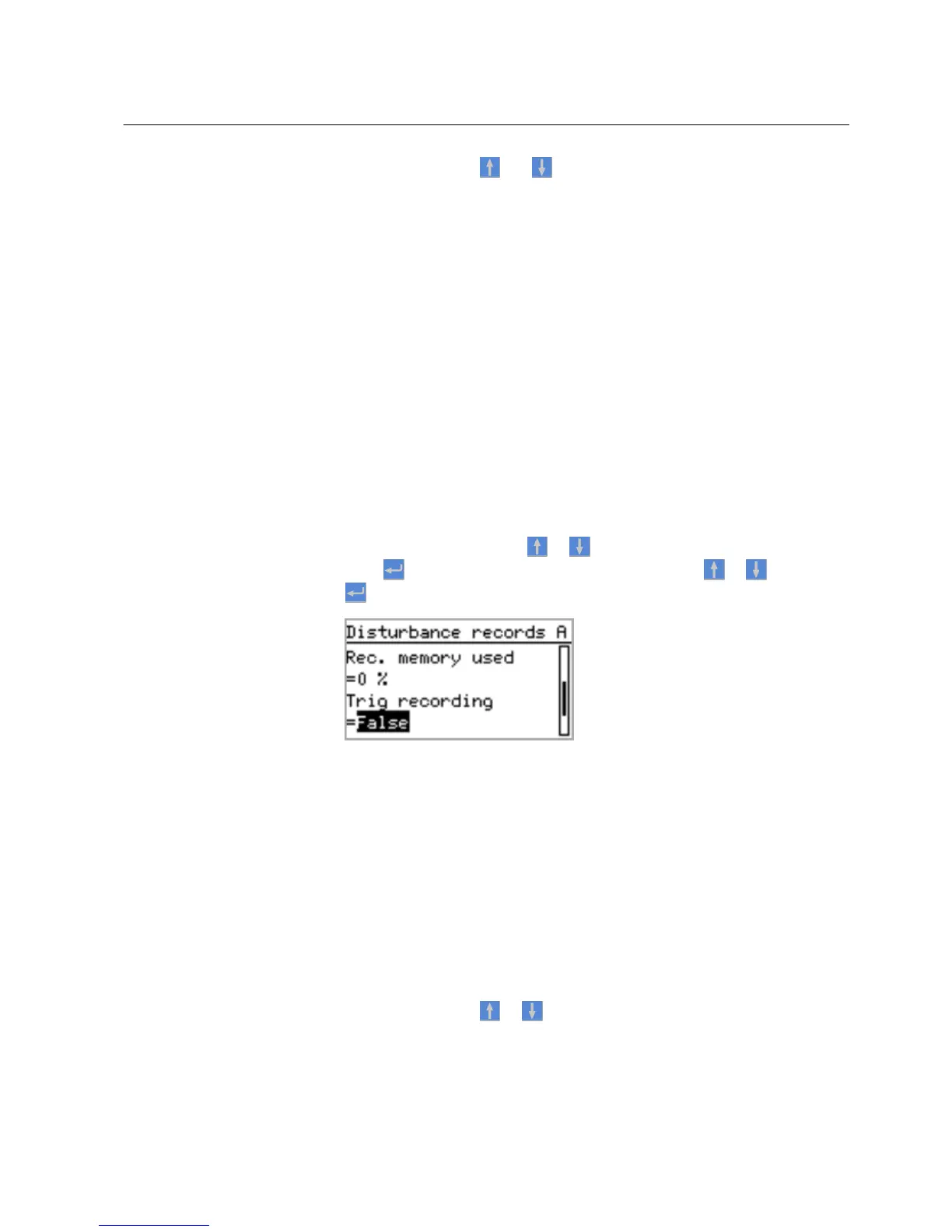

Figure 44: Changing the value
The disturbance recorder is now triggered.
6.1.3.2 Monitoring disturbance recorder data
Upload individual disturbance recordings from the IED with appropriate software
such as PCM600 to monitor disturbance recorder data. All disturbance recordings are
found in the C:\COMTRADE directory.
1. Select Main Menu/Disturbance records.
All the disturbance recorder information is listed.
2.
Scroll the view with
or .
The following items are listed in the view:
