4.1.9.2 Scrolling the LCD view
If a menu contains more rows than the display can show at a time, a scroll bar is
displayed on the right.

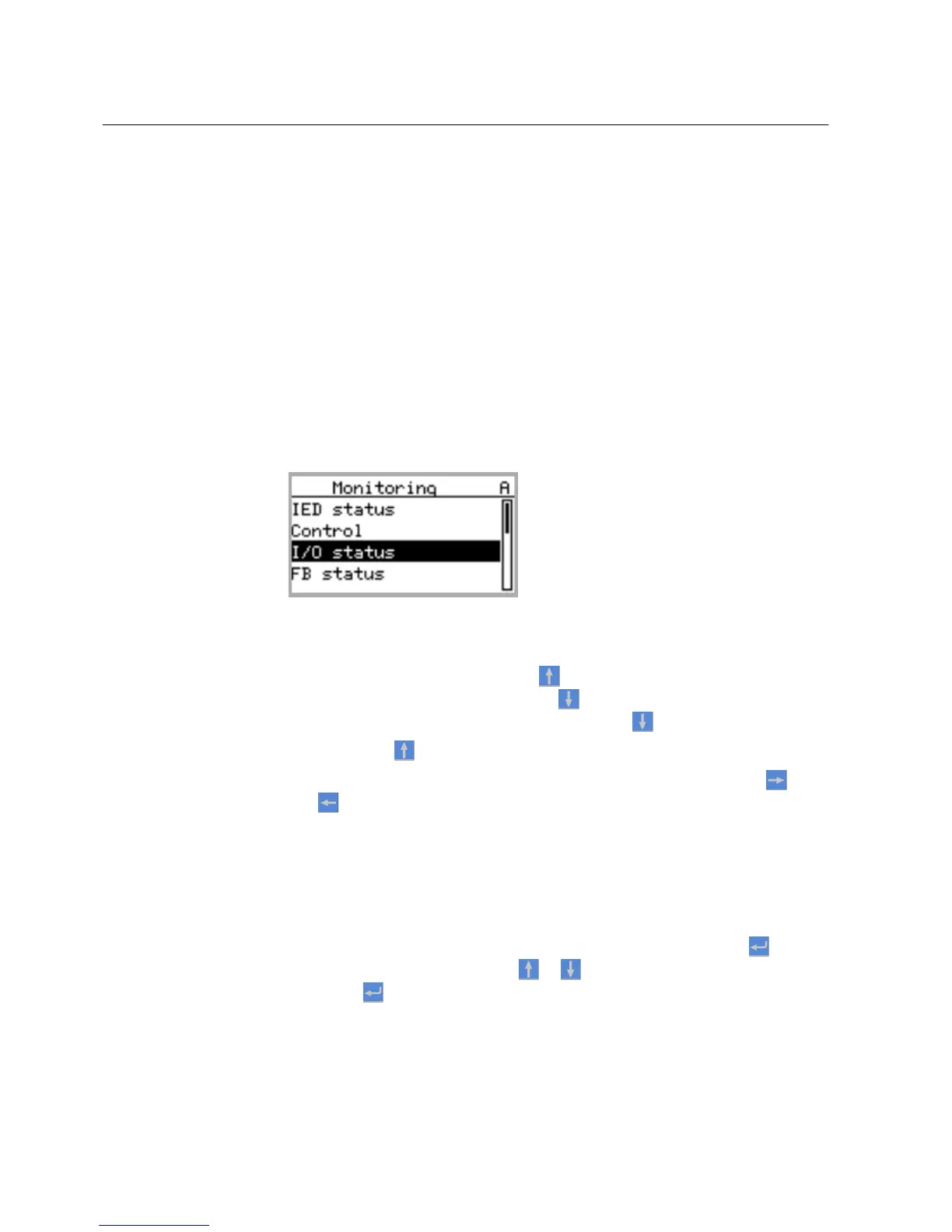

A070895 V2 EN
Figure 12: Scroll bar on the right
•
To scroll the view upwards, press .
•
To scroll the view downwards, press .
•
To jump from the last row to the first row, press again.
•
Press to jump from the first row to the last row.
•
To scroll parameter names and values that do not fit the screen, press
. Press
once to return to the beginning.
4.1.9.3 Changing the default view
The default view of the display is the Measurements unless set otherwise.
1.
Select Main Menu/Configuration/HMI/Default view and press
.
2.
Change the default view with or .
3.
Press to confirm the selection.
