REF 542plus switchbay protection and control unit
Manual Part 3: Installation and Commissioning
1VTA100004-en DMS,2001-10-04 REF542plus: Installation and Commissioning 13 / 80

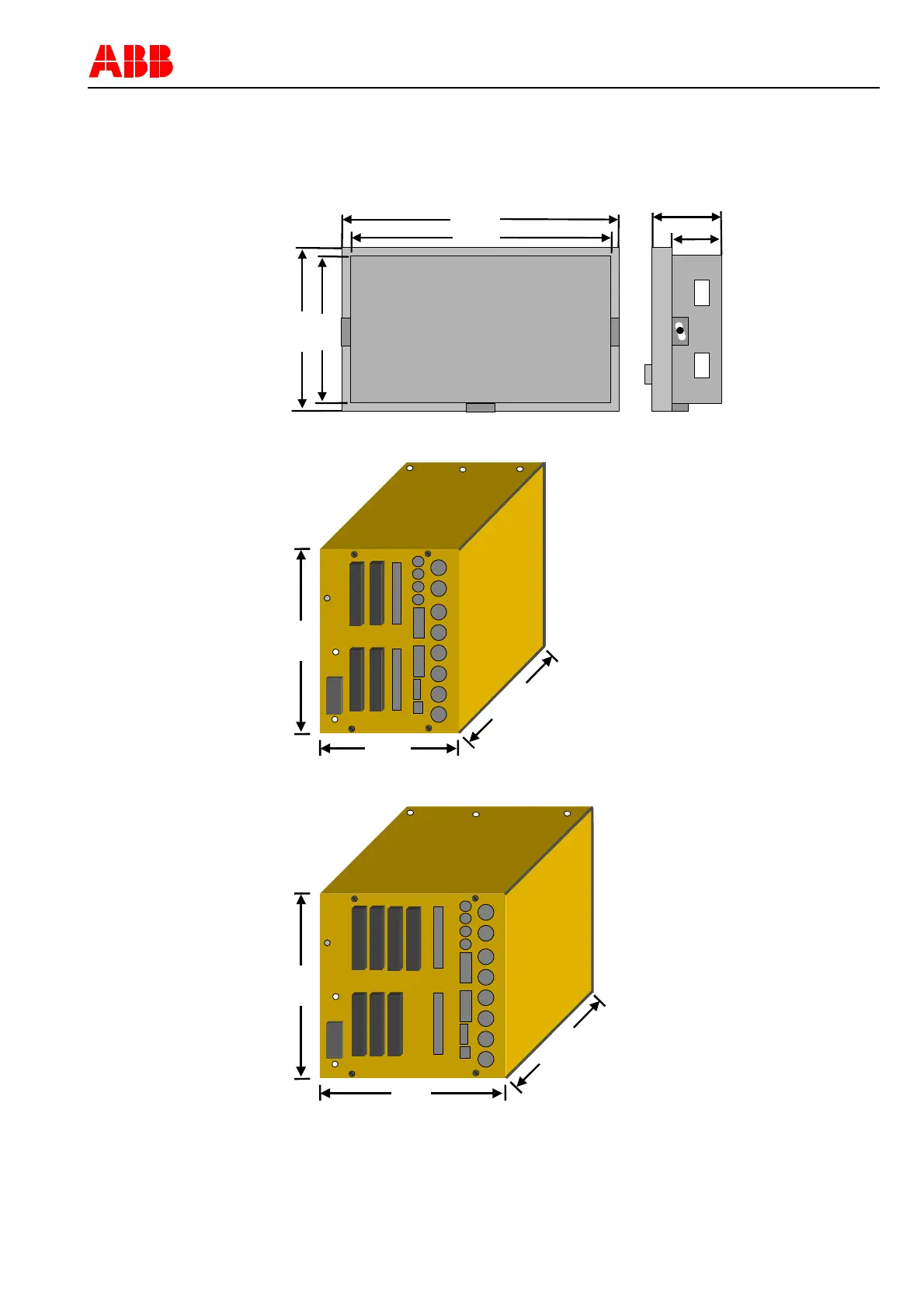

The figures below show the dimensions of the HMI Control Unit and Central Unit.
130 mm
215 mm
204mm
119 mm
64 mm
44 mm
Figure 1: Dimension of the HMI Control Unit
179 mm
238 mm
2
6
1
,
5
m
m
Figure 2: Dimension of the Central Unit case, standard version
223 mm
238 mm
2
6
1
,
5
m
m
Figure 3: Dimension of the Central Unit case, wide version
