REF 542plus switchbay protection and control unit
Manual Part 3: Installation and Commissioning
1VTA100004-en DMS,2001-10-04 REF542plus: Installation and Commissioning 16 / 80

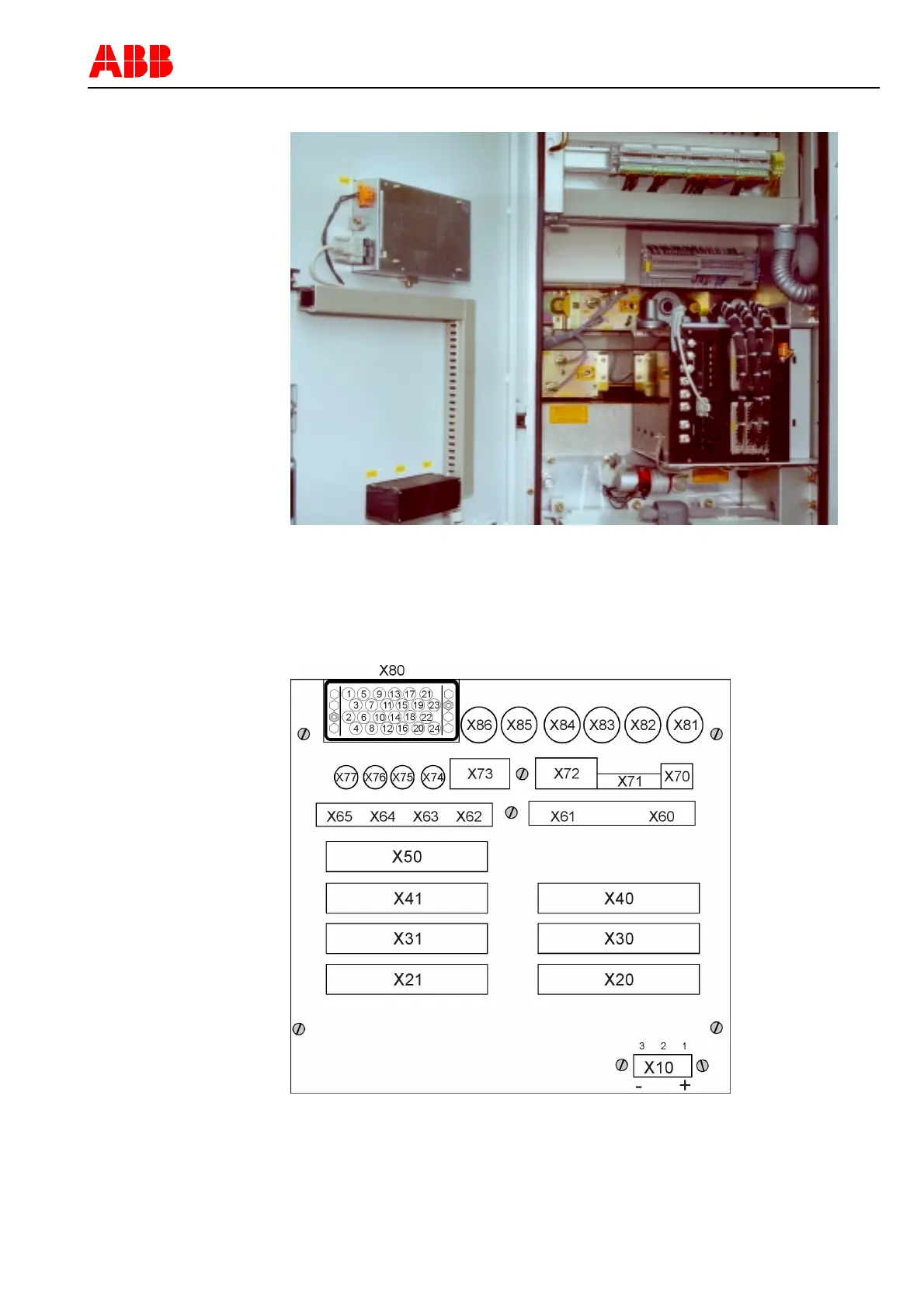

Figure 6: Example of mounting of the Central Unit in the LV compartment and the
HMI on the door
4.2.3 Connection diagrams
Connector Plate
Figure 1: REF542plus connector plate for the wide case mixed analog input version
