REF 542plus switchbay protection and control unit
Manual Part 3: Installation and Commissioning
1VTA100004-en DMS,2001-10-04 REF542plus: Installation and Commissioning 53 / 80
6.4.4 E-Key test
This test consists of the following steps:

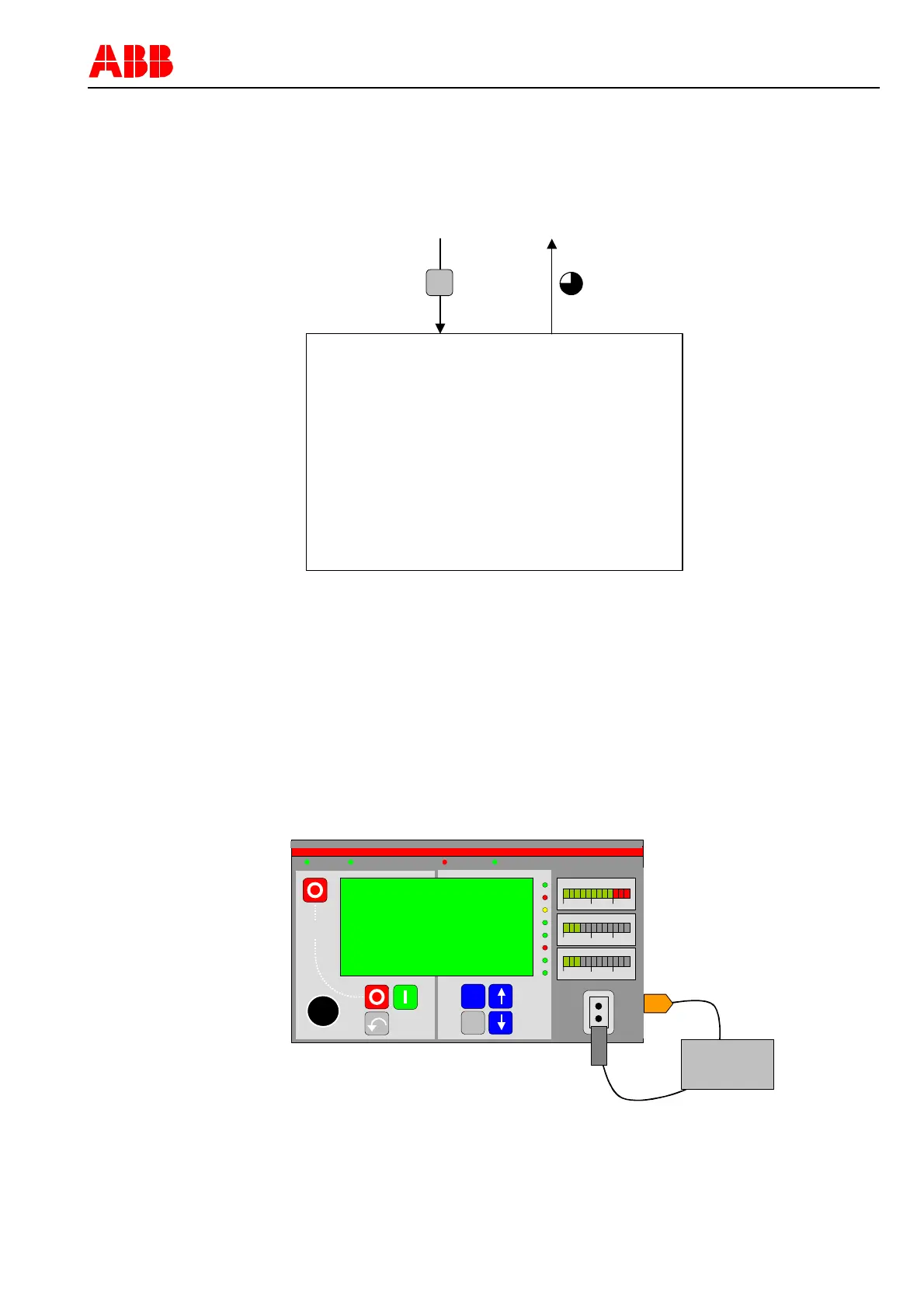

The LCD display for the E-Key Test Page is shown in the following figure:
ELECTRONIC KEY TEST
Insert the ABB Key
within 5 sec
↵
From RHMI
test page
To RHMI
test page
Figure 16: E-Key Test Page
The so called ABB-key must be inserted within 5 seconds. Afterwards the test will end
with OK result. Otherwise, the result is FAIL.
6.4.5 Serial ports test
This test is performed by connecting the loop-back cable, cable that is normally used
for the connection between PC and HMI Local Control Unit, between the port X20 and
the optical connector on the HMI front panel.
???
??????
???
REF542 plus
Alarm
NetworkCommunication
Ready
100%0
100%0
100%0
Menu
↵
↵↵
↵
Open
CB
M1
M2
M3
M2 V
Interlocking
Optical RS 232 to
half duplex RS 485
converter
SERIAL PORTS TEST
Please, be sure that
the two serial ports are
connected with the
loopback cable
Figure 17: RHMI serial ports test
To Next Page
