6.1.1.3 Rear side connectors
SEMOD129387-1 v1
M16105-3 v8

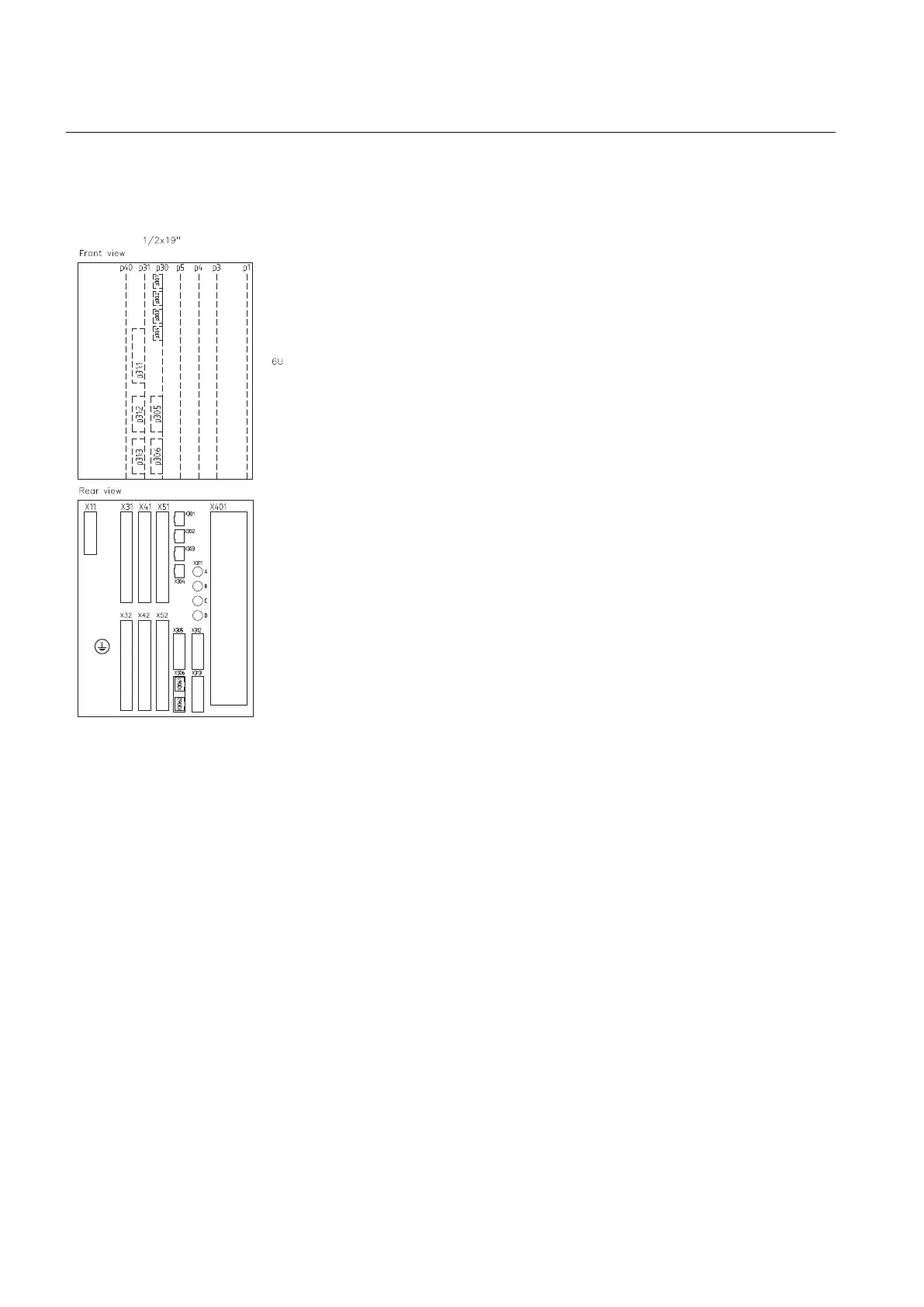

Table 4: Designations for 1/2 x 19” casing with 1 TRM slot
1MRK002801-AC-2-670-1.2-PG V.3 EN
1MRK002801-AC-2-670-1.2-PG V4 EN-US
Rear position Module
X11 PSM
X31 and X32 etc. to X51 and X52 BIM, BOM, SOM, IOM or MIM
X301, X302, X303, X304 SFP
X305 LDCM
X306 LDCM or OEM
X3061, X3062 SFP if OEM is selected
X311: A, B, C, D SLM
X312, X313 LDCM, IRIG-B, GTM or RS485
X401 TRM
Section 6 1MRK 514 026-UEN B
Connecting
38 670 series 2.2 IEC
Installation manual
