ABB Relion 670 series Installation Manual

9.1.3 Flush mounting dimensions
M11571-3 v6
C
A
IEC04000465-
3
-en.vsd
B
E
D
IEC04000465 V3 EN-US

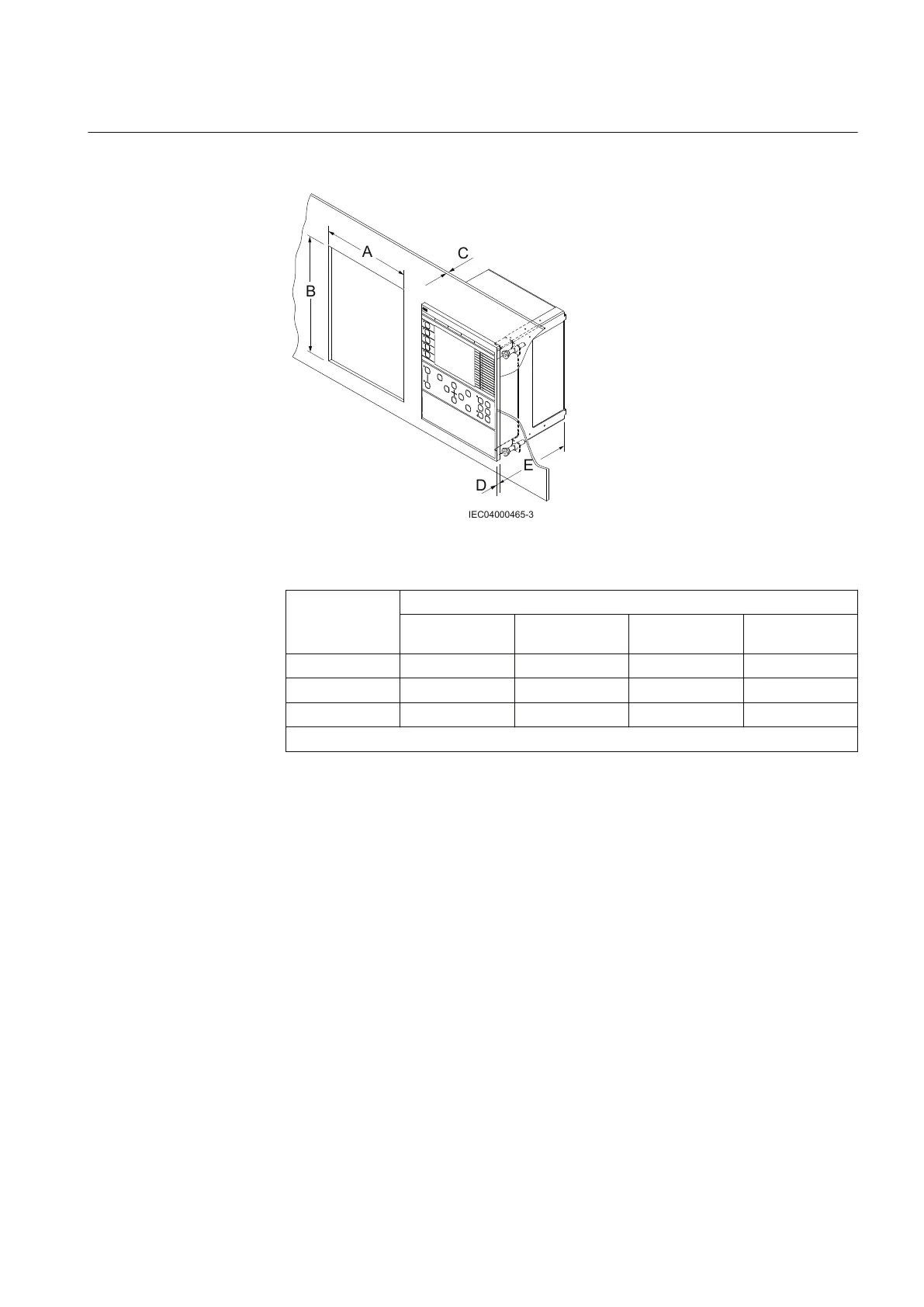

Figure 56: Flush mounting
Case size
Tolerance
Cut-out dimensions (mm)
A
+/-1
B
+/-1
C D
6U, 1/2 x 19" 210.1 254.3 4.0-10.0 13.5
6U, 3/4 x 19" 322.4 254.3 4.0-10.0 13.5
6U, 1/1 x 19" 434.7 254.3 4.0-10.0 13.5
E = 191.1 mm without rear protection cover, 231.8 mm with rear protection cover
1MRK 514 026-UEN B Section 9
Technical data
670 series 2.2 IEC 91
Installation manual
