ABB RER615 Technical Manual

3.14.2 IEC 61850-9-2 LE sampled values receiving SMVRCV
3.14.2.1 Function block

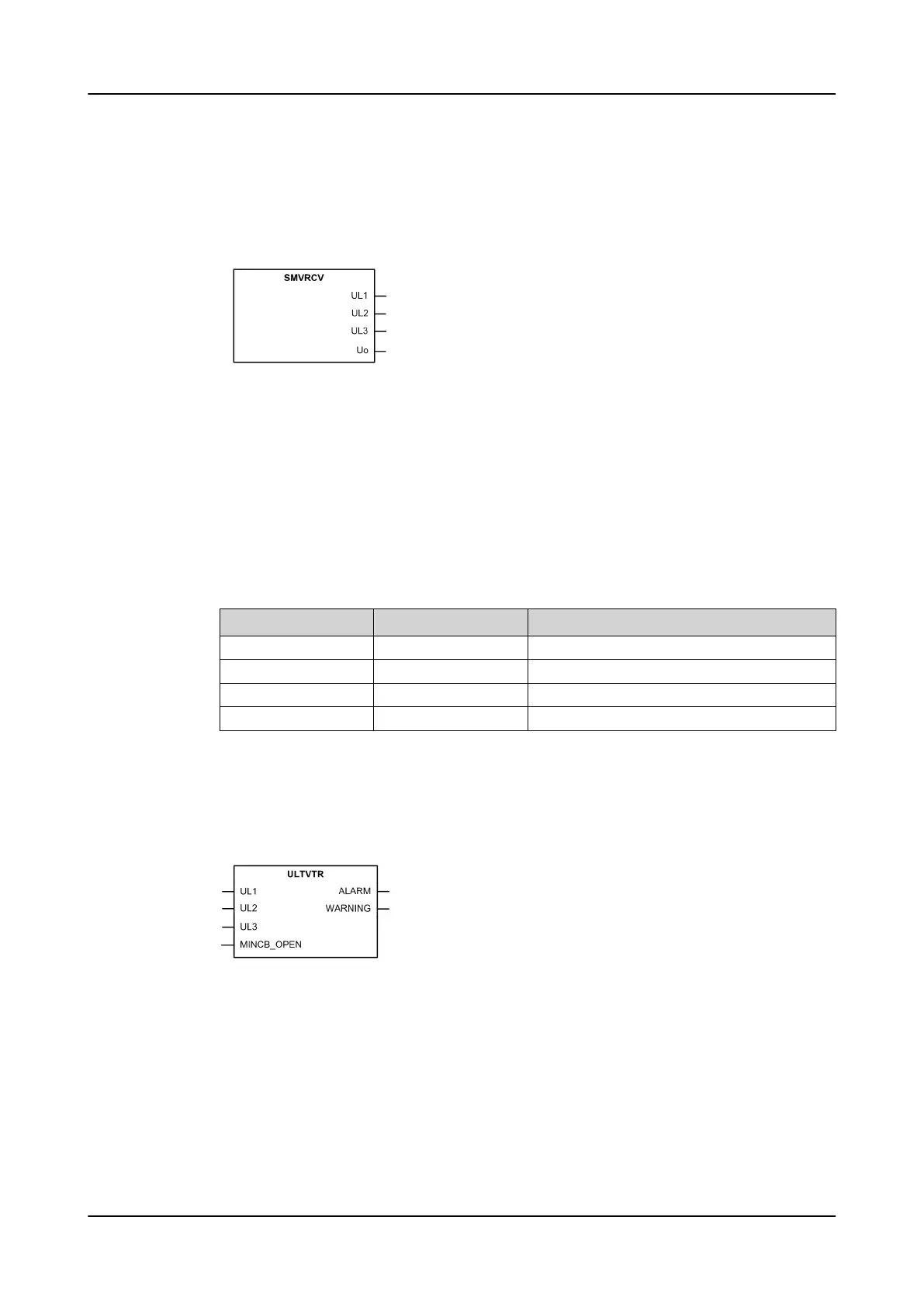

Figure 44: Function block
3.14.2.2 Functionality
The SMVRCV function block is used for activating the SMV receiving functionality.
3.14.2.3 Signals
Table 64: SMVRCV Output signals
Name Type Description
UL1 INT32-UL1 IEC61850-9-2 phase 1 voltage
UL2 INT32-UL2 IEC61850-9-2 phase 2 voltage
UL3 INT32-UL3 IEC61850-9-2 phase 3 voltage
U0 INT32-Uo IEC61850-9-2 residual voltage
3.14.3 ULTVTR function block
3.14.3.1 Function block
Figure 45: Function block
3.14.3.2 Functionality
The ULTVTR function is used in the receiver application to perform the supervision
for the sampled values and to connect the received analog phase voltage inputs to
the application. Synchronization accuracy, sampled value frame transfer delays and
missing frames are being supervised.
1MRS758755 C
Basic functions
REC615 & RER615
Technical Manual
115
