The CL output signal indicates that the position is closed. Default value (0) is used if
VALID output indicates invalid status.
The OK output signal indicates that the position is neither in faulty or intermediate
state. The default value (0) is used if VALID output indicates invalid status.
3.15.5.3 Signals
Table 75: GOOSERCV_INTL Output signals
Name Type Description
POS_OP BOOLEAN Position open output signal
POS_CL BOOLEAN Position closed output signal
POS_OK BOOLEAN Position OK output signal
VALID BOOLEAN Output signal

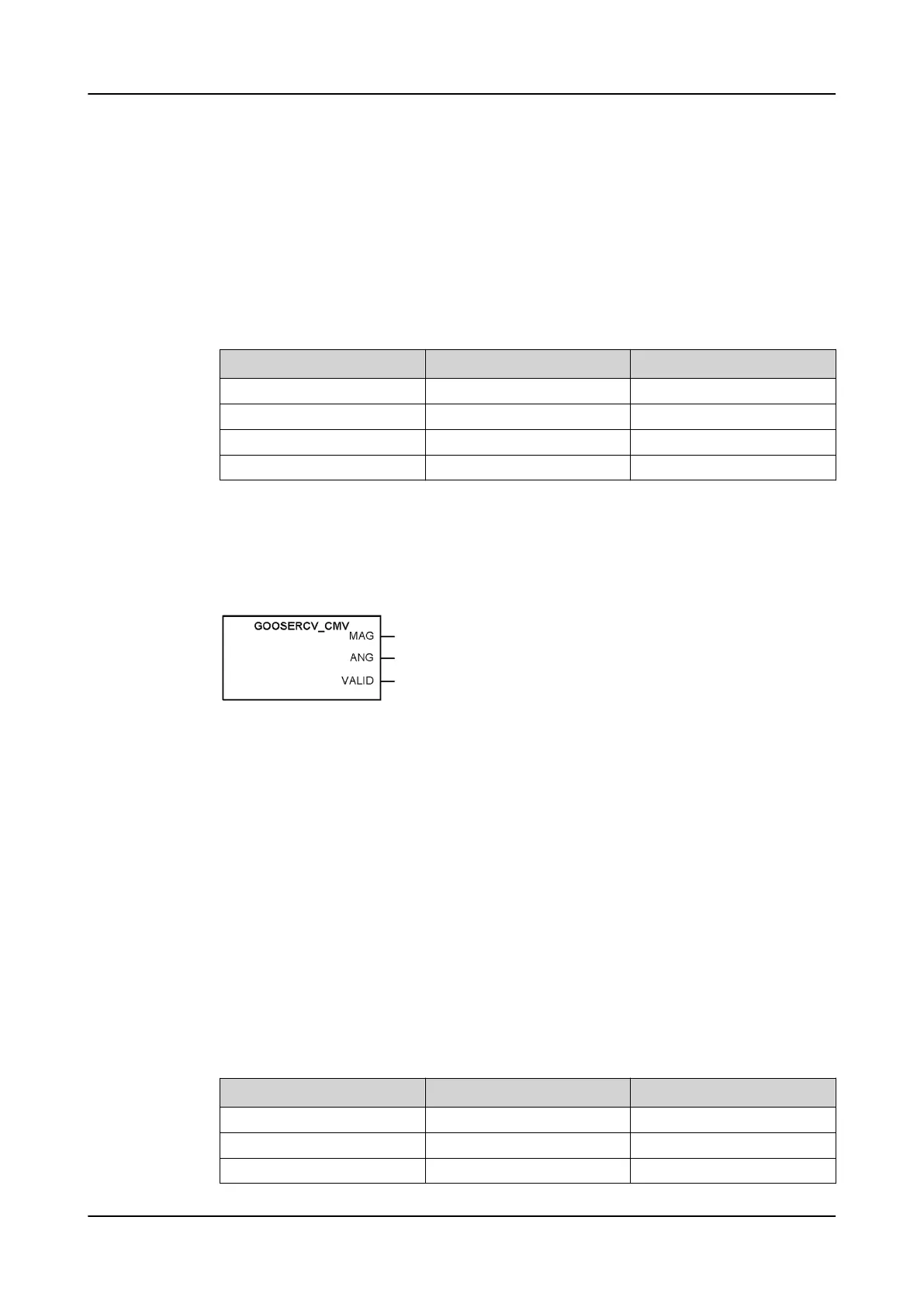

3.15.6 GOOSERCV_CMV function block
3.15.6.1 Function block
Figure 52: Function block
3.15.6.2 Functionality
The GOOSERCV_CMV function is used to connect GOOSE measured value inputs to
the application. The MAG_IN (amplitude) and ANG_IN (angle) inputs are defined in
the GOOSE configuration (PCM600).
The MAG output passes the received GOOSE (amplitude) value for the application.
Default value (0) is used if VALID output indicates invalid status.
The ANG output passes the received GOOSE (angle) value for the application.
Default value (0) is used if VALID output indicates invalid status.
3.15.6.3 Signals
Table 76: GOOSERCV_CMV Output signals
Name
Type Description
MAG FLOAT32 Output signal (amplitude)
ANG FLOAT32 Output signal (angle)
VALID BOOLEAN Output signal
1MRS758755 C Basic functions
REC615 & RER615
Technical Manual
123
