Interface and menus
1 - Presentation of interface
Functions
The Ekip Touch operator interface allows you to:
• display signals and measurements of the functions in progress or recorded events
• configure the parameters, the protections present and other functions of the unit
• set parameters concerning the accessory modules connected
• perform tests
Components
The Ekip Touch interface includes a touchscreen, short-cut push-buttons, status leds and a service connector
for certain external accessories:

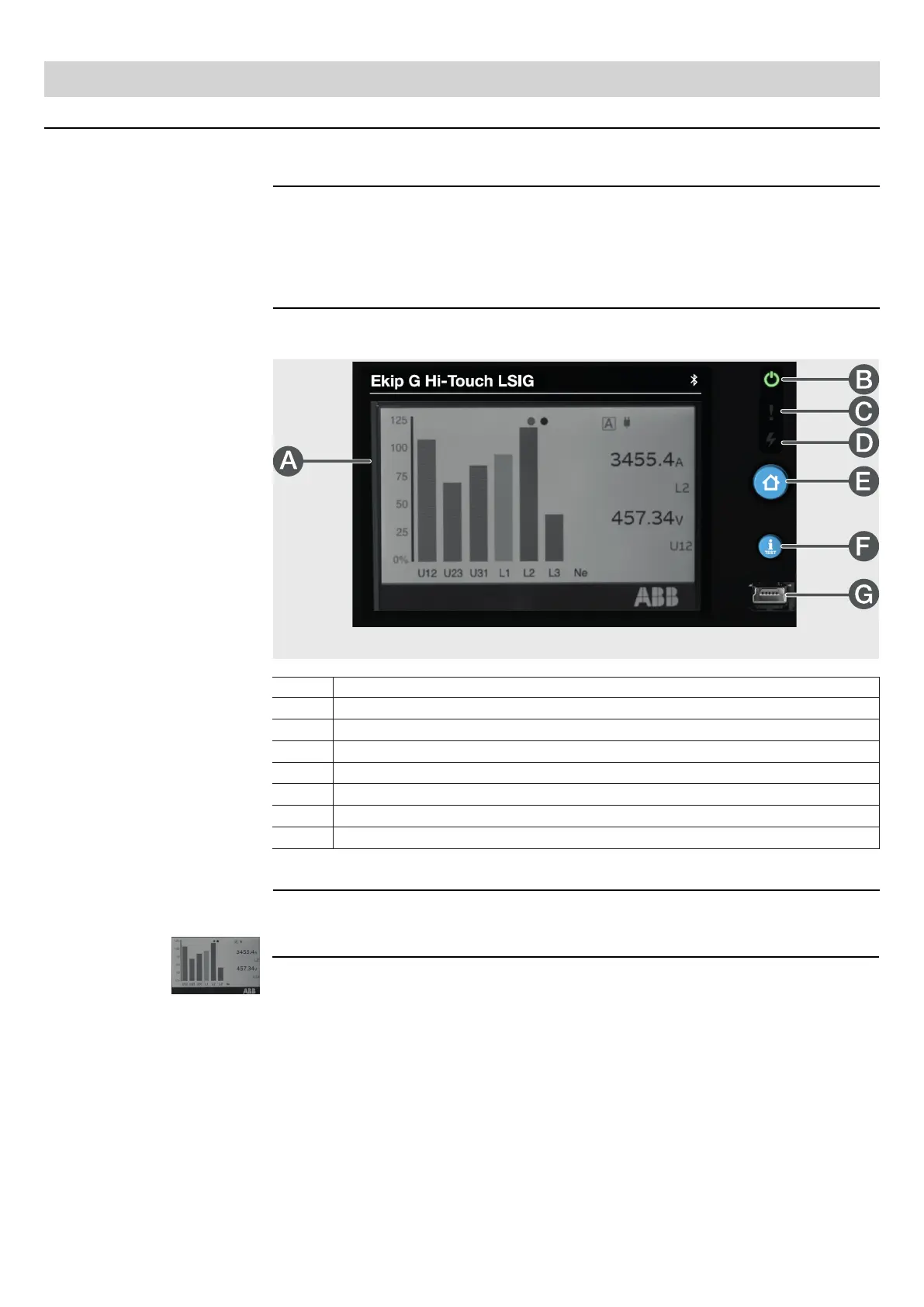

Figure 4
Pos. Description
A Single-touch color touchscreen display
B Power led
C Warning led
D Alarm led
E HOME push-button
F iTEST push-button
G Service connector
Display
The touchscreen display of Ekip Touch is the single-touch, color type.
The touchscreen function is active when the unit is on.
