3 - Graphic pages

Histograms

The page displays the histograms of the current and voltage measurements acquired in real time and certain

status information:

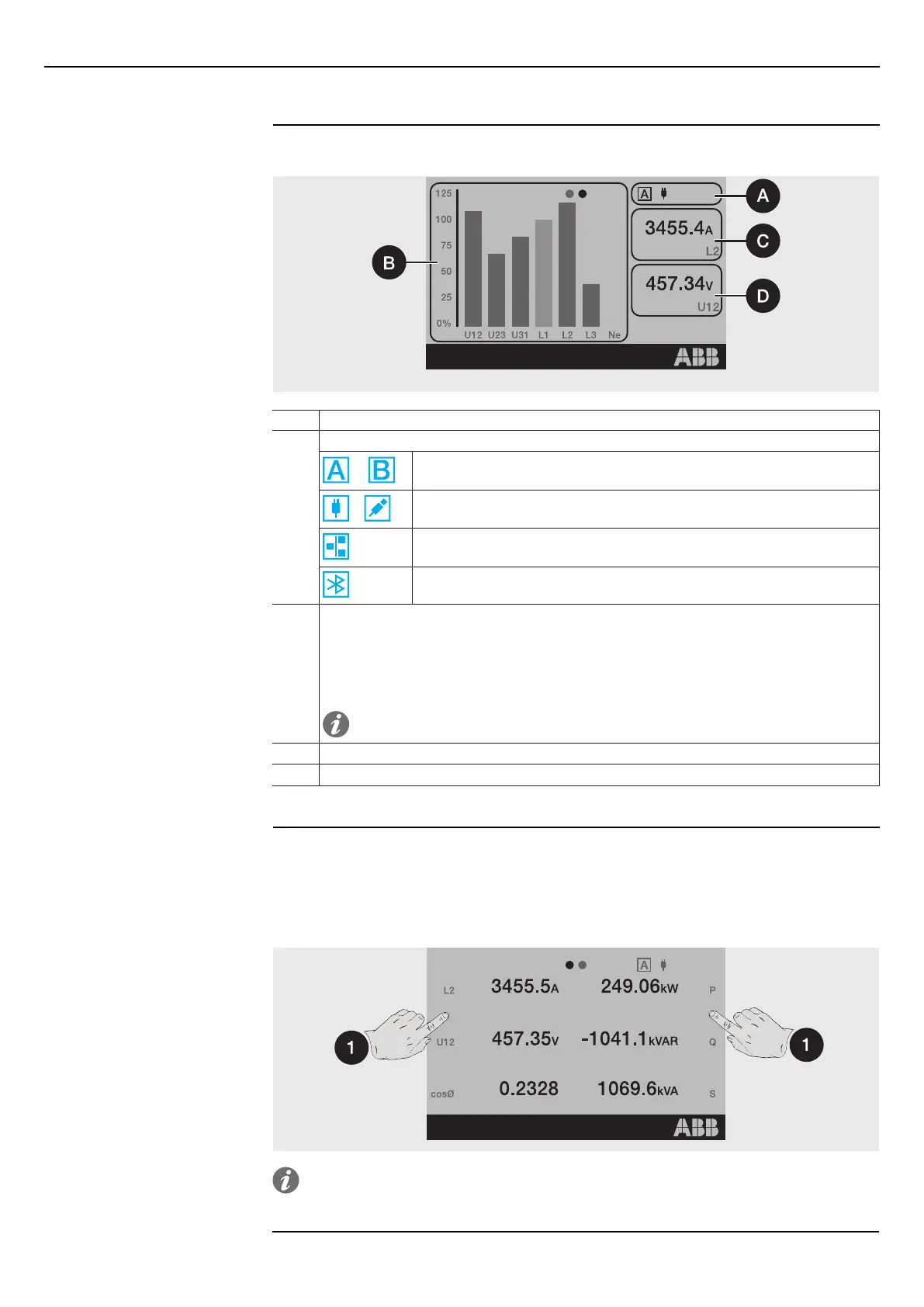

Figure 9

Pos. Description

Up to four information icons are available:

The letter corresponding to the active conﬁguration is displayed if Adaptive

Protections package is present and with Dual Set enabled;

External power supply present (Vaux or through a service connector); the plug

icon indicates Vaux

Remote parameter writing conﬁguration activre, modules Ekip Com connected,

Vaux present

Bluetooth communication activated

Histograms of the voltage and current measurements acquired in real time.

The bar of each signal is represented in scale 0 to 125 % with reference to the rated current and

voltage values of the, and can be of three colors:

• light blue: no protection in alarm status

• yellow: one of the tripped protections is in prealarm status with respect to set thresholds

• red: one of the tripped protections is in alarm status with respect to set thresholds

NOTE: Histogram Ne is available with 4P or 3P + N conﬁgurations

C Maximum phase current measured in real time

D Maximum line-to-line voltage measured in real time

Summary page

Press on the sides of the display (1) from the Home page to access further summary pages for certain

measurements:

• Main measurements page: maximum phase current, maximum line-to-line voltage, power factor, total

active/reactive/apparent powers

• Ekip Synchrocheck main measurements page (when module is present): Int and Ext frequencies and

voltages, phase difference, synchronism status (page 21)

Figure 10

NOTE: both pages can be set as the main page by pressing HOME, holding it for five seconds

and confirming the message on the display
