TERR A DC WA LLBOX
2023 -06-20 28/39
2. Push the cables back through the gland plate, until sufficient cable length is left to reach the ca-
ble terminals. Ensure the PE cable is longer than the other cables.
3. Slide the cable cover and tighten the two screws.
If a wired internet connection is not used, please ensure the cable entry hole is closed, to assure
the IP54 grade of the cabinet, and prevent insects and small animals to enter the cabinet.

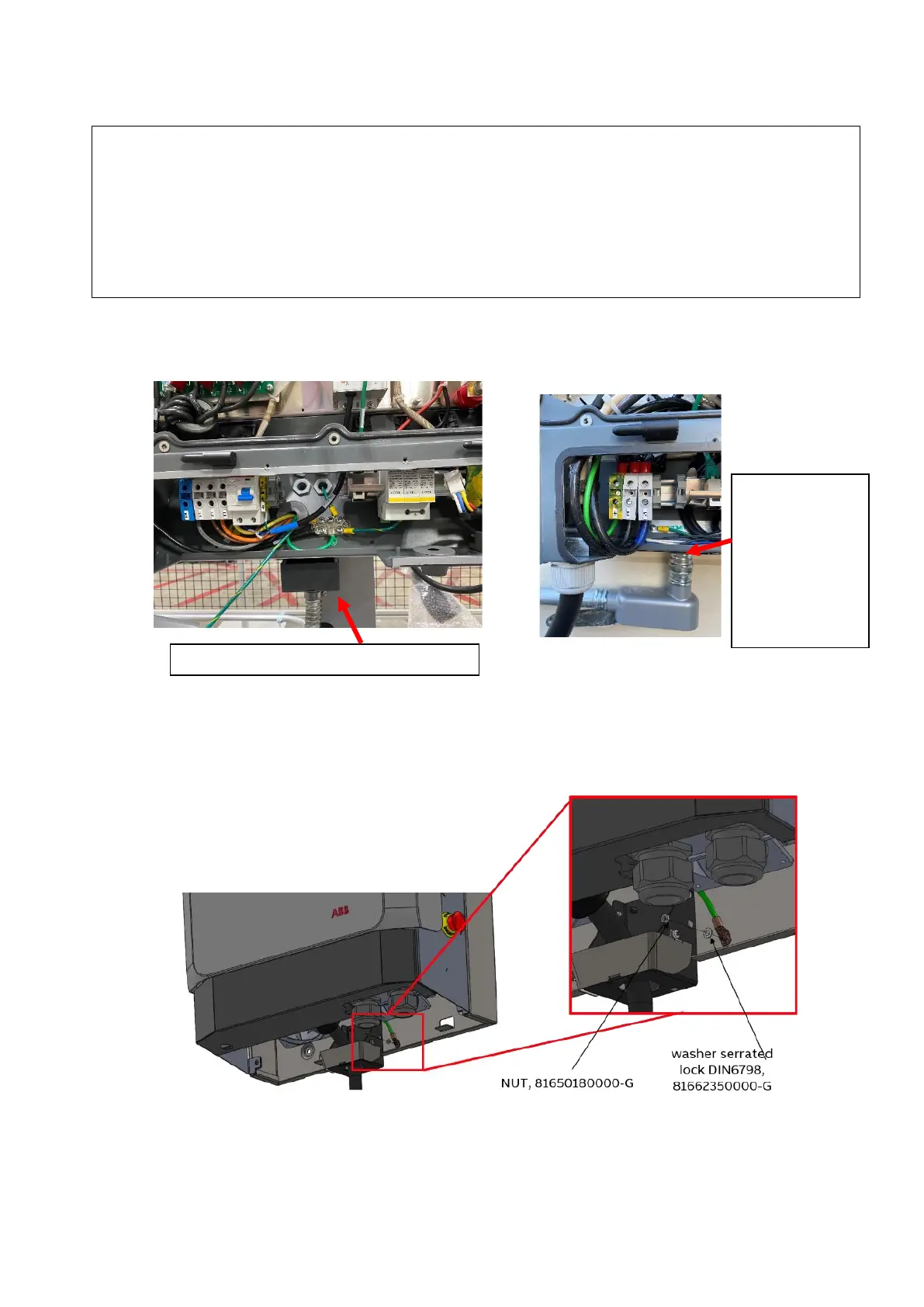

Conduit
Installation
1.25“ secured to
bottom
mounting area.
1-phase Version
Shown
3-Phase Connection using flexible
conduit
NOTE 1: For 3-phase versions a ferrite core is provided with the Wallbox (plastic bag within the package or strapped to
the CCS-1 cable) and needs to be installed in commissioning phase. The Ferrite needs to be inserted in the AC in cable
and located in the screw cable cover (see picture above, left). THE FERRITE IS REQUIRED TO MAINTAIN THE
WARRANTY.
NOTE 2: Two floating grounding cables are provided that are connected to the ground node. One cable must be con-
nected between the to the wall frame PEM the other to the front lower cover in order to guarantee equal ground po-
tential (see picture above, right).
nOTE
To Next Page
