Fitting the filter silencer
u Assemble the insert units (E) by inserting the absorption segments
(81136) into the sheet metal coverings (81137).
u Bend sheet metal coverings (81137) back to original shape.
u Insert the insert units (E) into slot guides in filter silencer unit (81135).

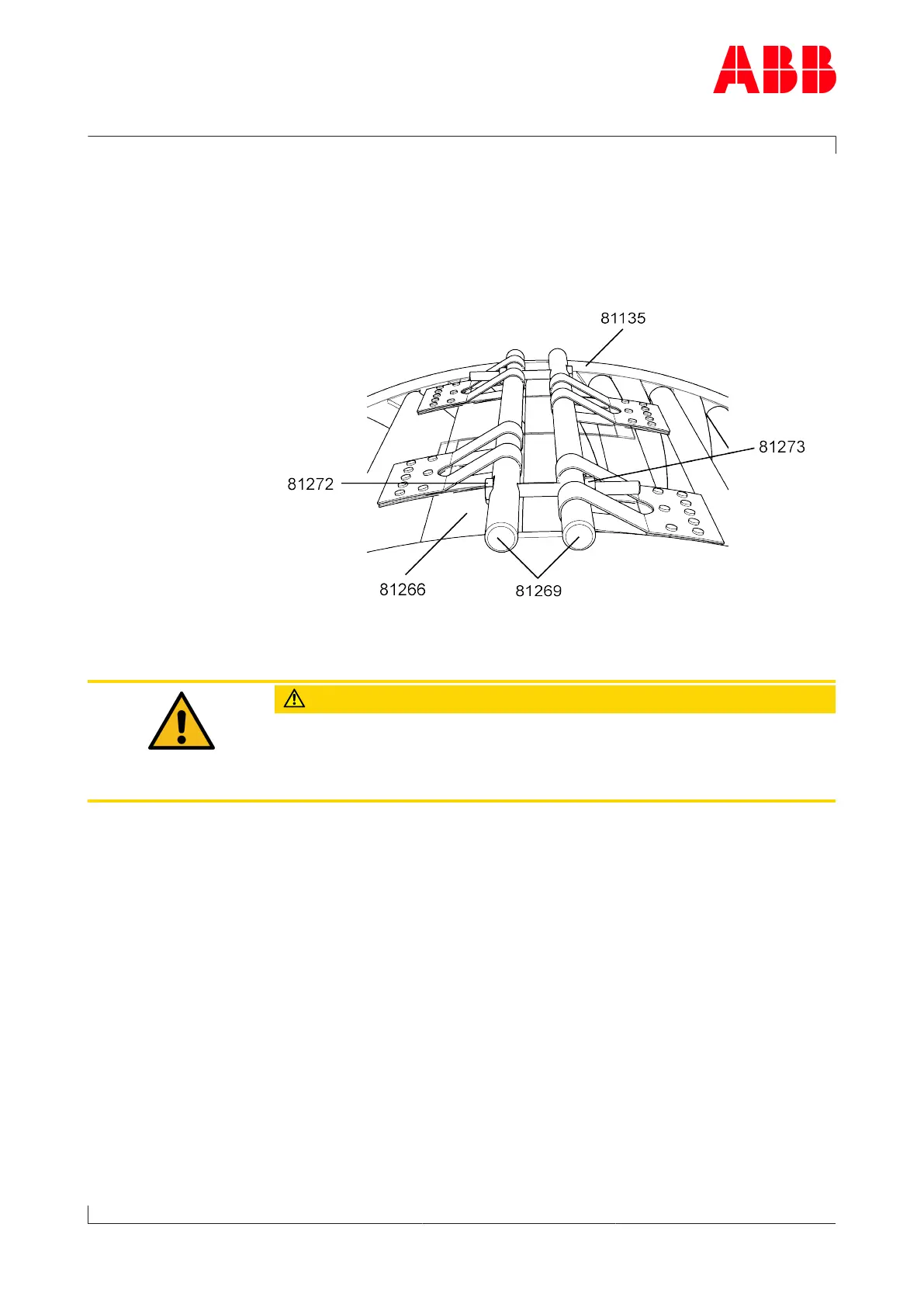

u Install cover grids (81266) uniformly and in the correct position.
u Push connecting rods (81269) through the lugs of cover grids (81266).
CAUTION
If connecting rods (81269) are not correctly positioned in their recesses
on filter silencer body (81135), cover grid (81266) can twist and shift.
There is then a risk of foreign matter and contamination getting into
the compressor.
