Operation Manual / TPL65-A10 / -A30
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

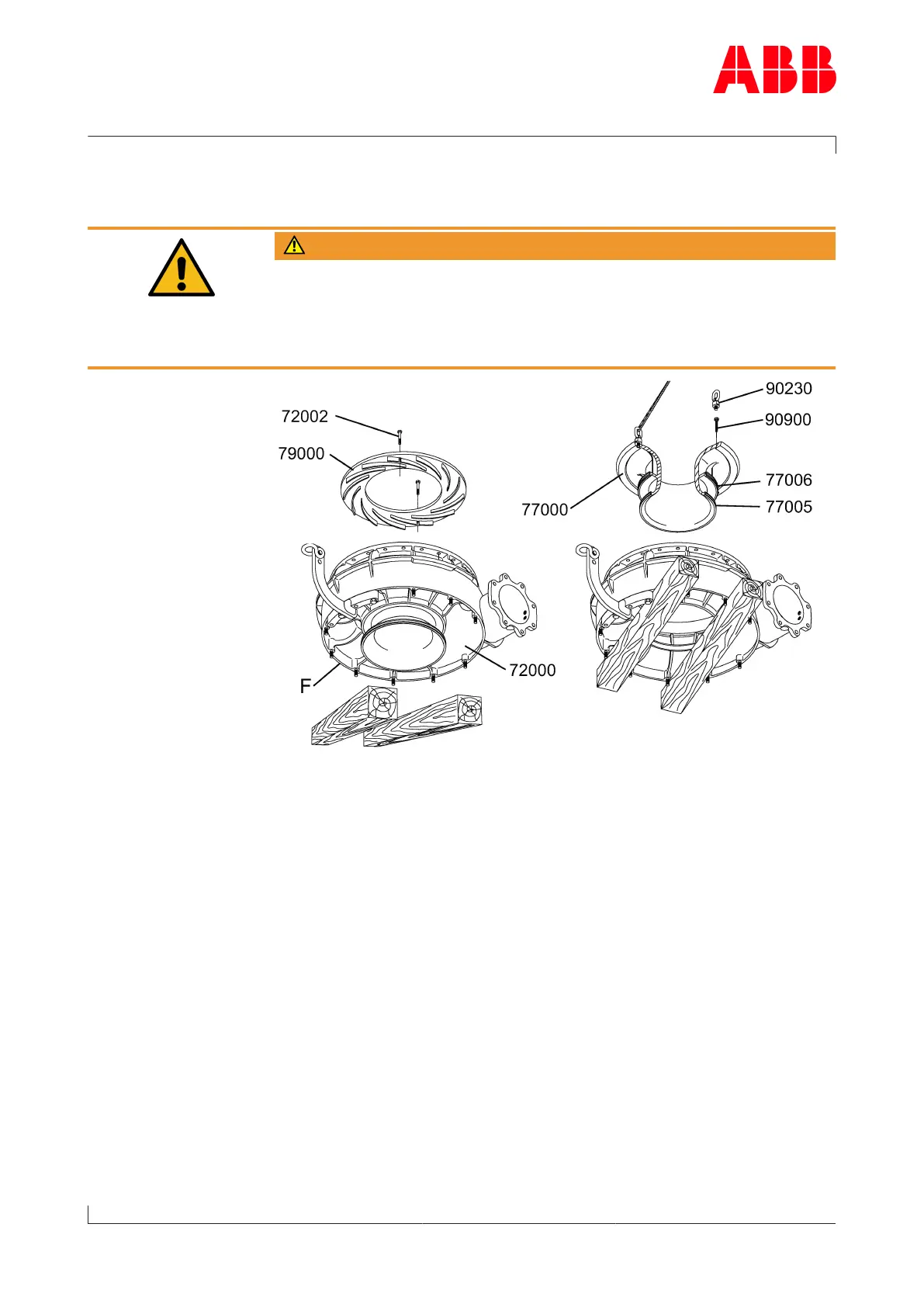

u Turn compressor casing (72000) together with wall insert and dif-
fuser and set them down with surface (F) on underlay.
WARNING
Tipping the compressor casing
Make sure that the underlay does not slip.
u Allow compressor casing to rest only on surface (F).
u Check the underlay and adjust it if necessary.
u Remove the screw (72002).
u Remove the diffuser (79000).
u Carefully press off the wall insert (77000) using the press-off screws
(90900) and remove it using the swivel lifting eye (90230).
u Remove the O-rings (77005 & 77006).
Page 89 / 117
