Operation Manual / TPL65-A10 / -A30
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

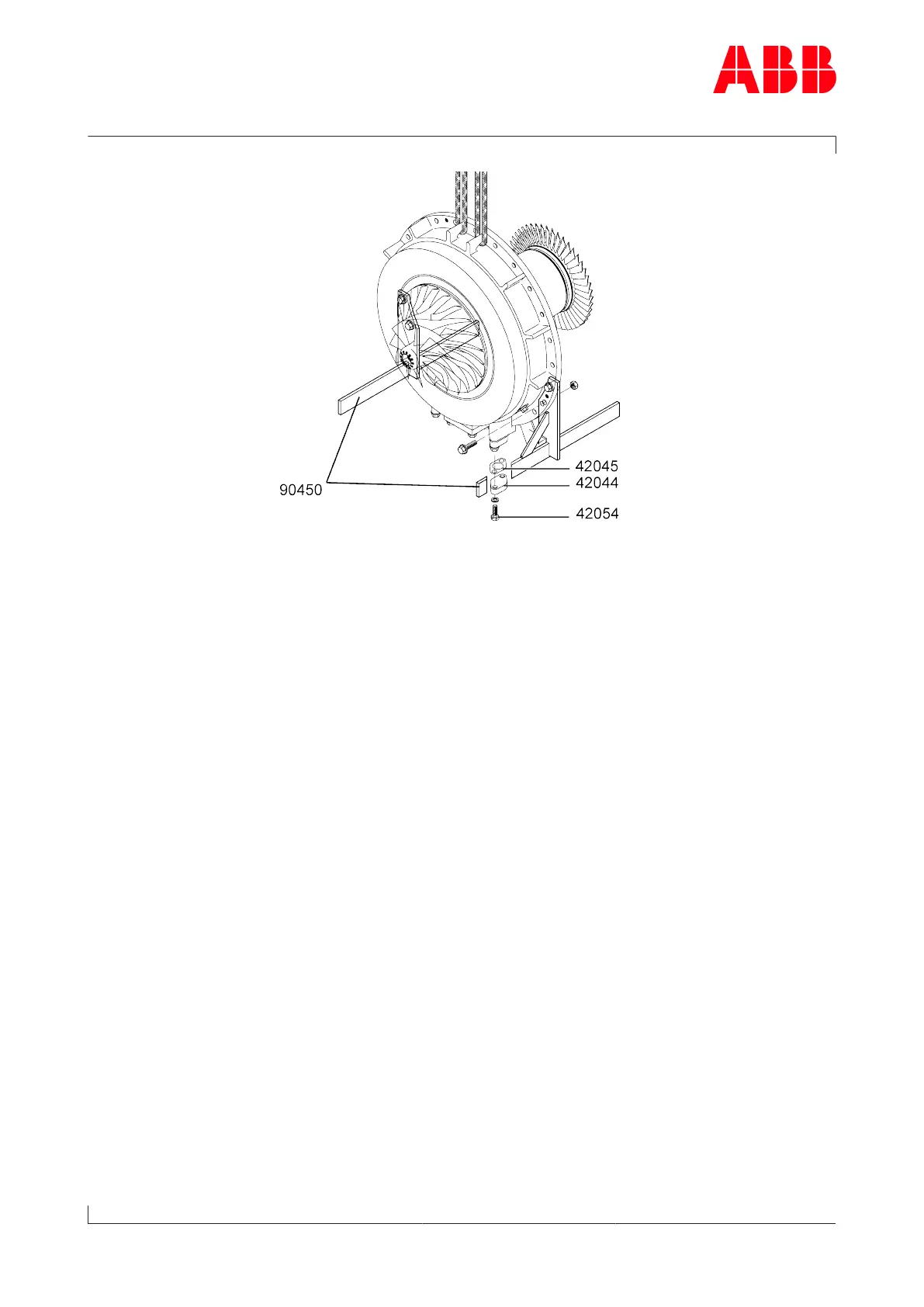

u Withdraw cartridge group and fit supports (90450).
u Remove screws (42054) together with flange (42044) and also remove
possible contamination behind the flange.
u Cover the oil connections.
Page 91 / 117
