Operation Manual / TPL65-A10 / -A30
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

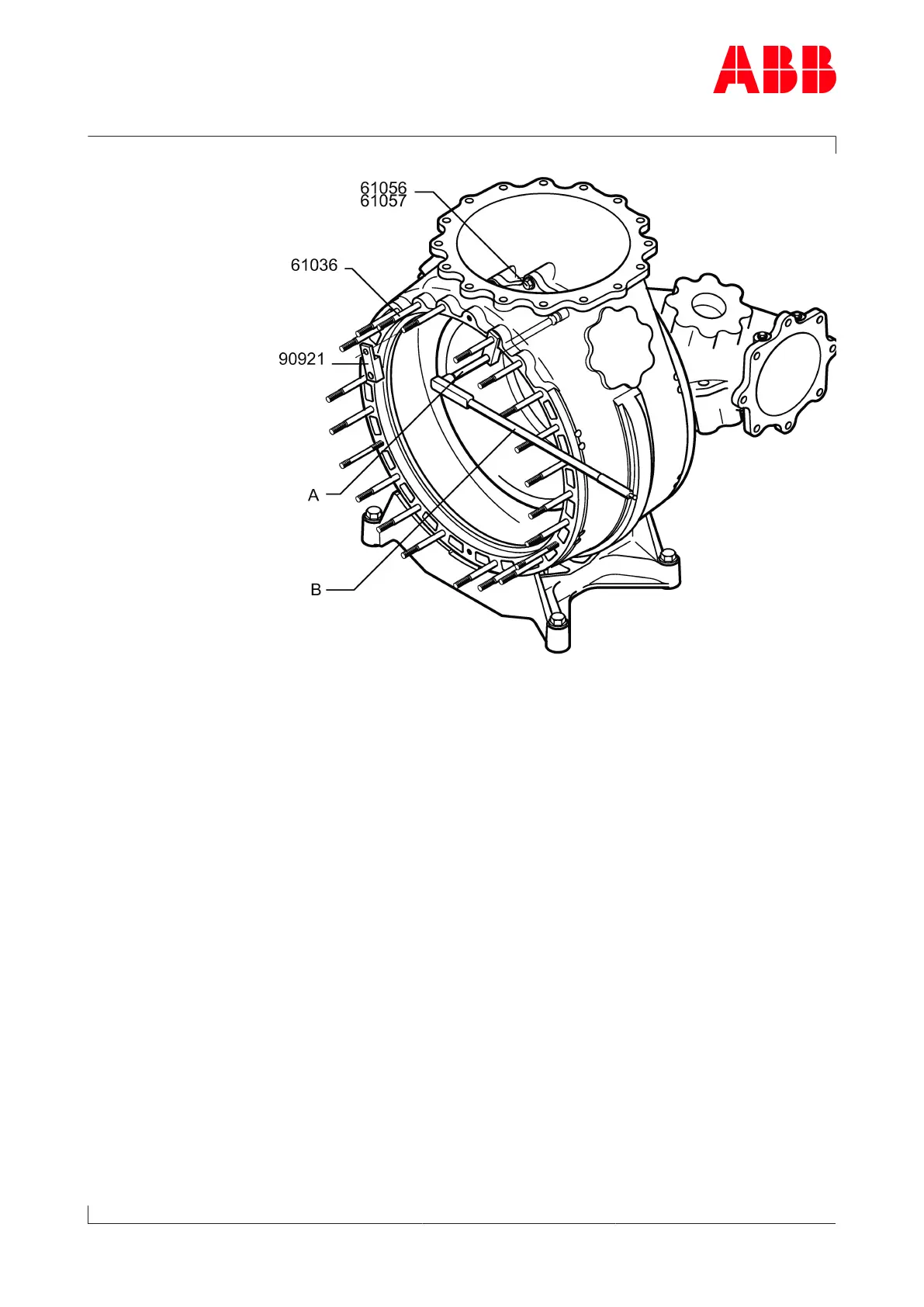

u Position clamp (90921) over stud (61036) until it lies flat against inner
radius of gas outlet casing.
u Insert extension (A) of torque spanner (B) through clamp hole and
only loosen screws (61056) one after other.
u Do not yet remove the screws (61056) and Verbus Ripp® washers
(61057).
