Operation Manual / TPL65-A10 / -A30
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2020 . All rights reserved. HZTL2482_EN Rev.E March 2020

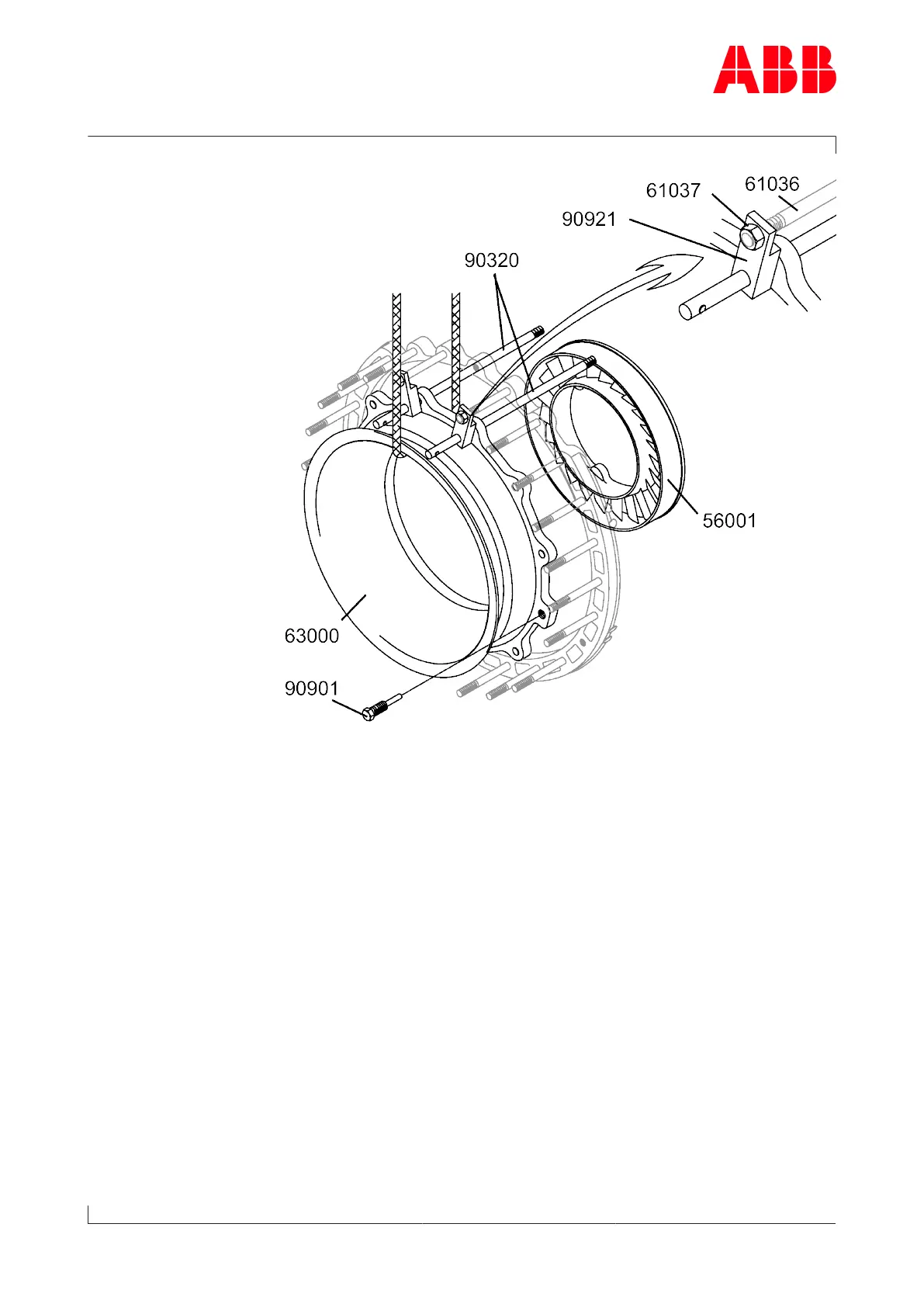

u Replace two screws (61056) in the gas outlet casing with two guide
studs (90320) in the upper section of the turbine diffuser (63000).
u Fit clamps (90921) over the guide studs (90320) and the studs
(61036).
u To secure the work, screw the nuts (61037) onto the start of stud
threads (61036).
u Remove the remaining screws (61056) and Verbus Ripp® washers
(61057).
u Press the turbine diffuser (63000) free using the press-off screws
(90901) and pull it out it until the clamp (90921) is up against the nut
(61037).
u Loop the lifting gear around the turbine diffuser (63000) and secure it
to a crane.
u Remove nuts (61037) and clamps (90921).
u Fully withdraw the turbine diffuser and remove it.
u Remove the guide studs (90320).
u Pull nozzle ring (56001) forward and remove.
Page 94 / 117
