Operation Manual / TPL65VA32/33
Removing the turbocharger
Page 77
© Copyright 2015 ABB. All rights reserved.
September 2015 HZTL2464_EN Revision C

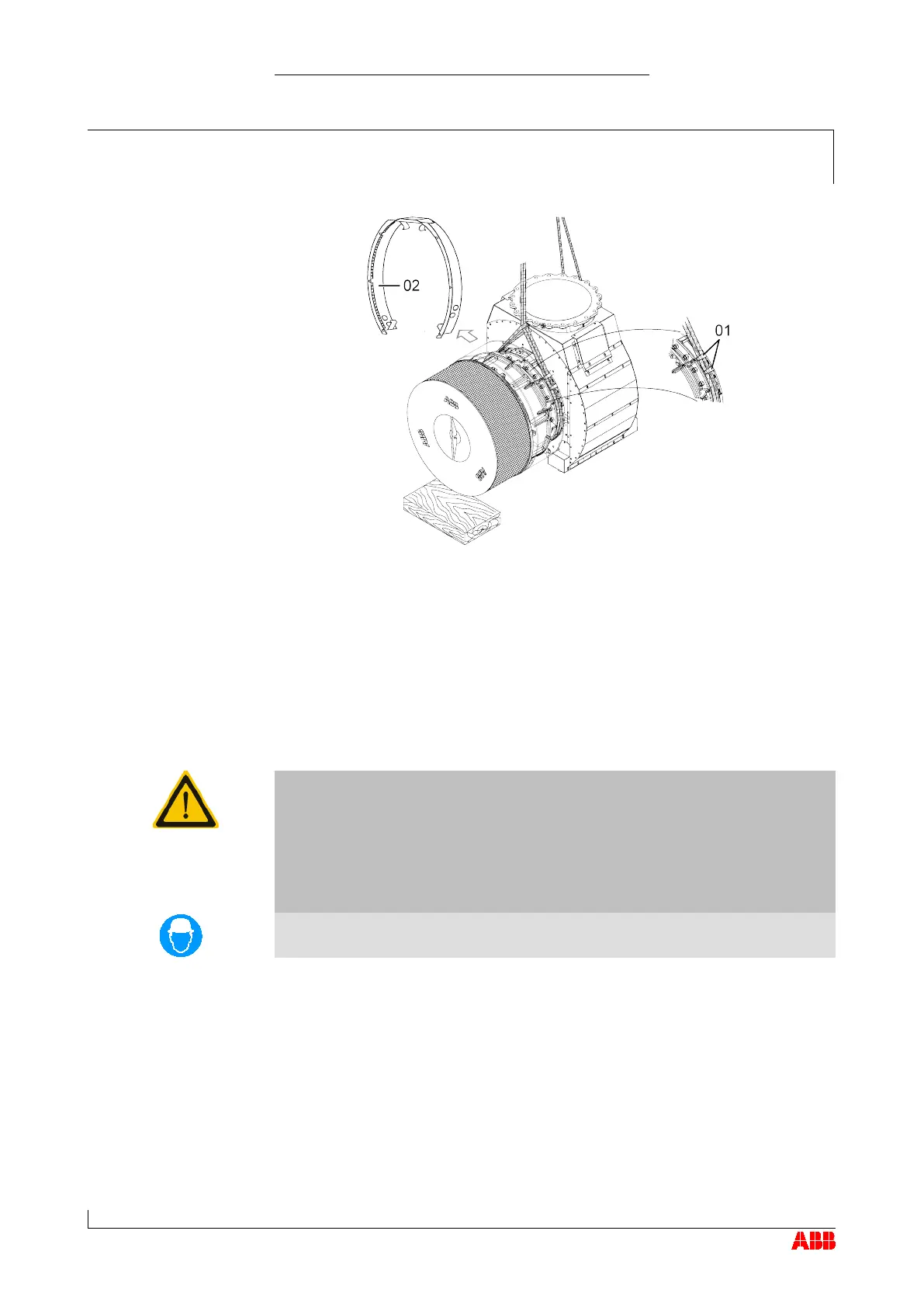

Ribs (01) not in the middle at the top:
Completely remove the bearing casing insulation (02) and place a
sling around the bearing casing.
Loosen the fixing screws at the foot.
Lift the turbocharger off the engine and set it down to one side.
If support for the turbocharger is not provided or is inadequate, the
turbocharger could tip over during installation or removal and cause a
serious or even fatal injury.
Support the turbocharger at a suitable point.
If possible secure it using lifting gear.
Wear safety helmet.
Cover the oil connection.
