ABB TPL65VA33 - Removing the Turbocharger

Operation Manual / TPL65VA32/33
Removal and installati
on
7
Removing the turbocharger
7.2
Page 76
© Copyright 2015 ABB. All rights reserved.
September 2015 HZTL2464_EN Revision C
Removing the turbocharger
7.2
 Disconnect all gas, air and oil lines in accordance with engine
manufacturer’s instructions.
CAUTION
Oil orifice plates
An orifice plate for adjusting the oil pressure is fitted in each of the two
oil inlet channels in the bearing casing. When the cartridge group, the
bearing casing or the turbocharger is fitted to the engine, it must be
ensured that the orifice plates that are specified for the turbocharger
have been installed in the two oil inlet channels.
 Check correct installation of oil orifice plates.
 Unplug the cable connector on the speed sensor.
 Remove the insulation at the suspension ribs.
TPL65: Version with compressor wheel cooling system
 Remove air supply line. (See also chapter entitled Preliminary
remarks / Layout and functionality)
 Inspect the lifting gear.


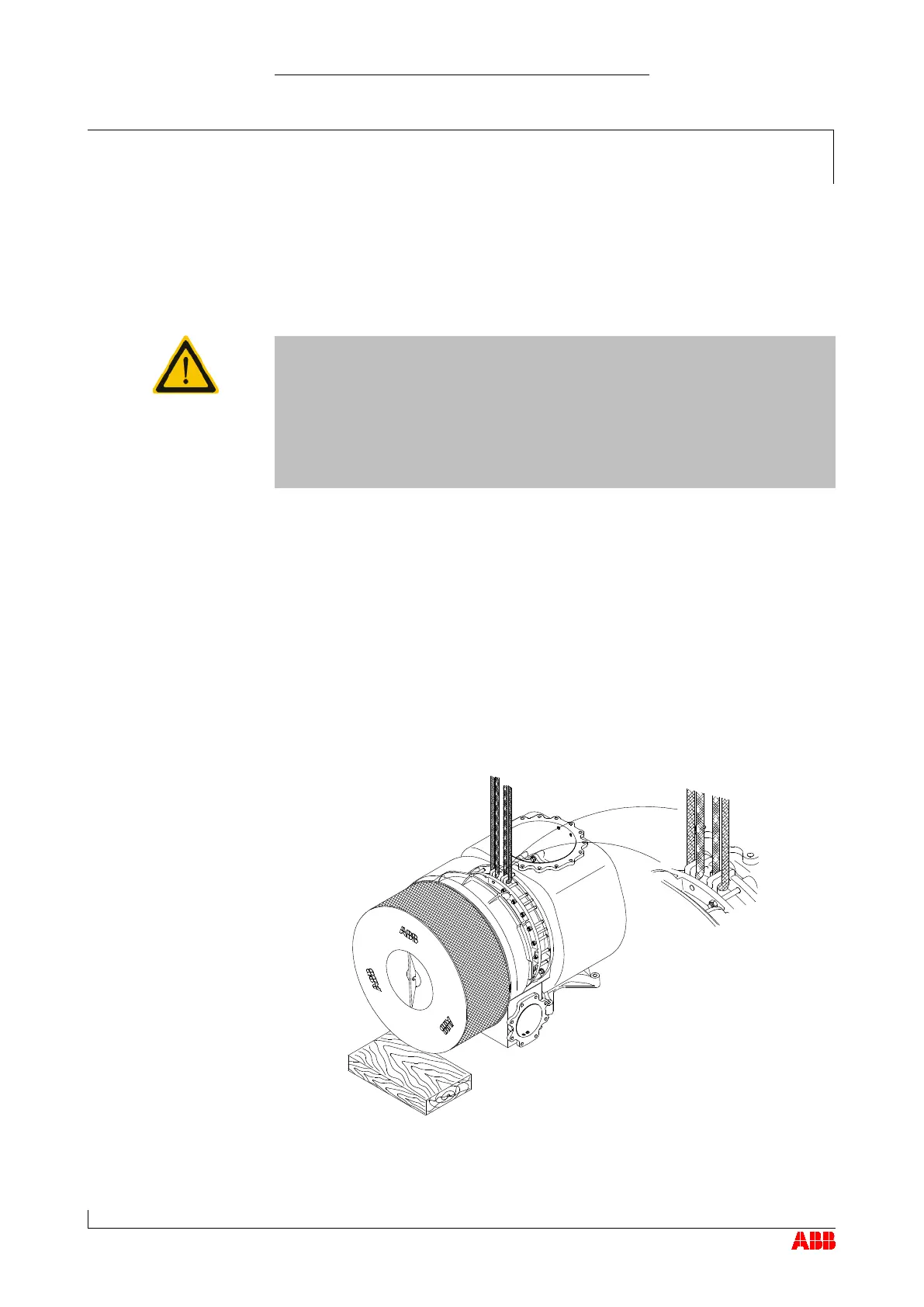

Fasten separate lifting gear to each of the two ribs on the bearing
casing provided for this purpose.
7.2
