Operation Manual / TPL65VA32/33
Disassembly and assembly
8
Removing and fitting turbine diffuser
8.6
Page 90
© Copyright 2015 ABB. All rights reserved.
September 2015 HZTL2464_EN Revision C
Removing and fitting turbine diffuser
8.6


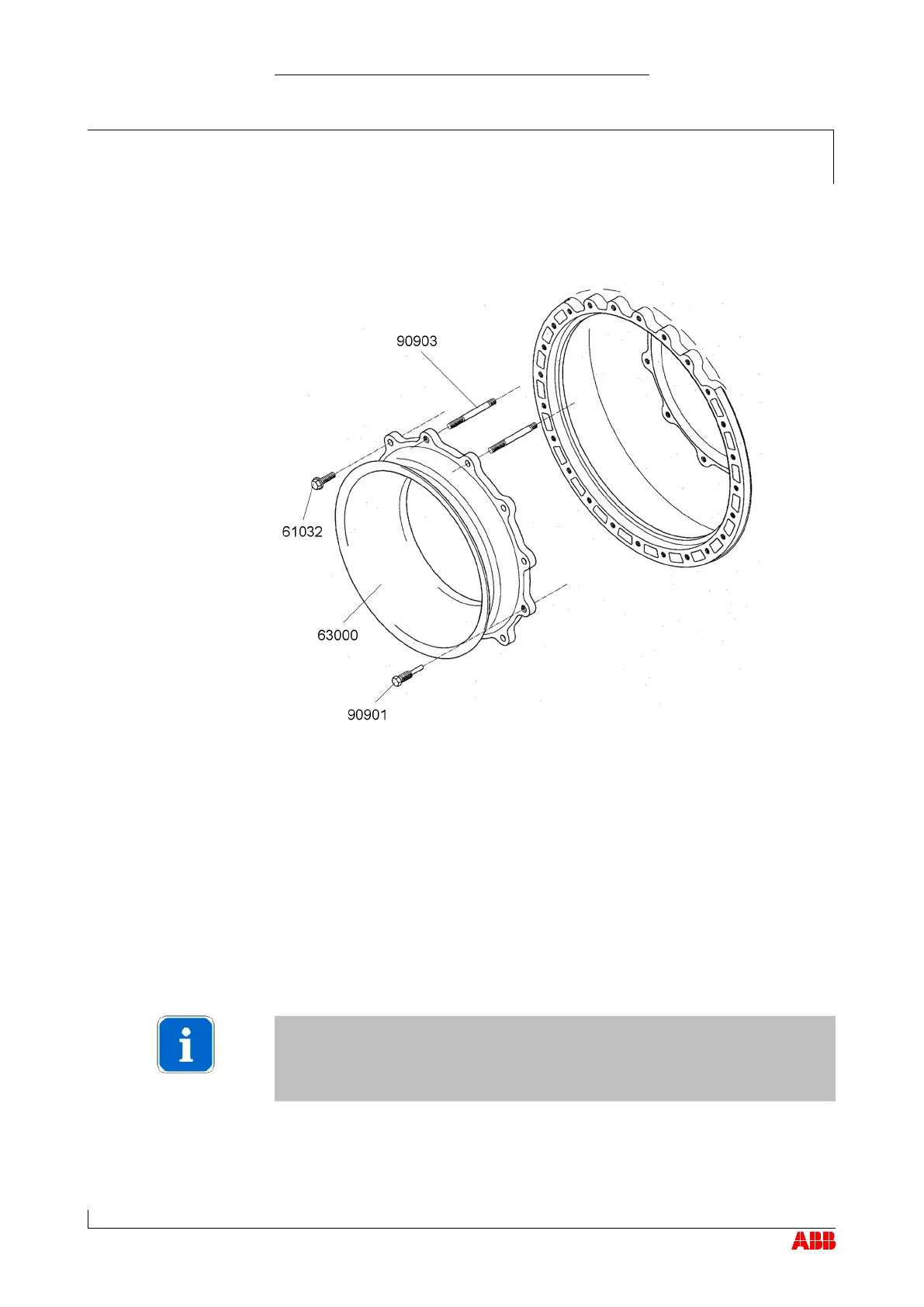

Replace two screws (61032) with two studs (90903) in upper section
of turbine diffuser.
 Screw out the remaining screws (61032), press off the turbine diffuser
(63000) using the press-off screws (90901), then withdraw and
remove it.
Fitting the turbine diffuser
 Fit the turbine diffuser in reverse order of removal.
NOTICE
Brush high-temperature grease on all screws at and in the gas outlet
casing.
8.6
