ABB TPL65VA33 - Installing Cartridge Group

Operation Manual / TPL65VA32/33
Disassembly and assembly
8
Fitting the variable turbine geometry
module and the gas inlet casing
8.8
Page 92
© Copyright 2015 ABB. All rights reserved.
September 2015 HZTL2464_EN Revision C
Fitting the variable turbine geometry module
and the gas inlet casing
8.8

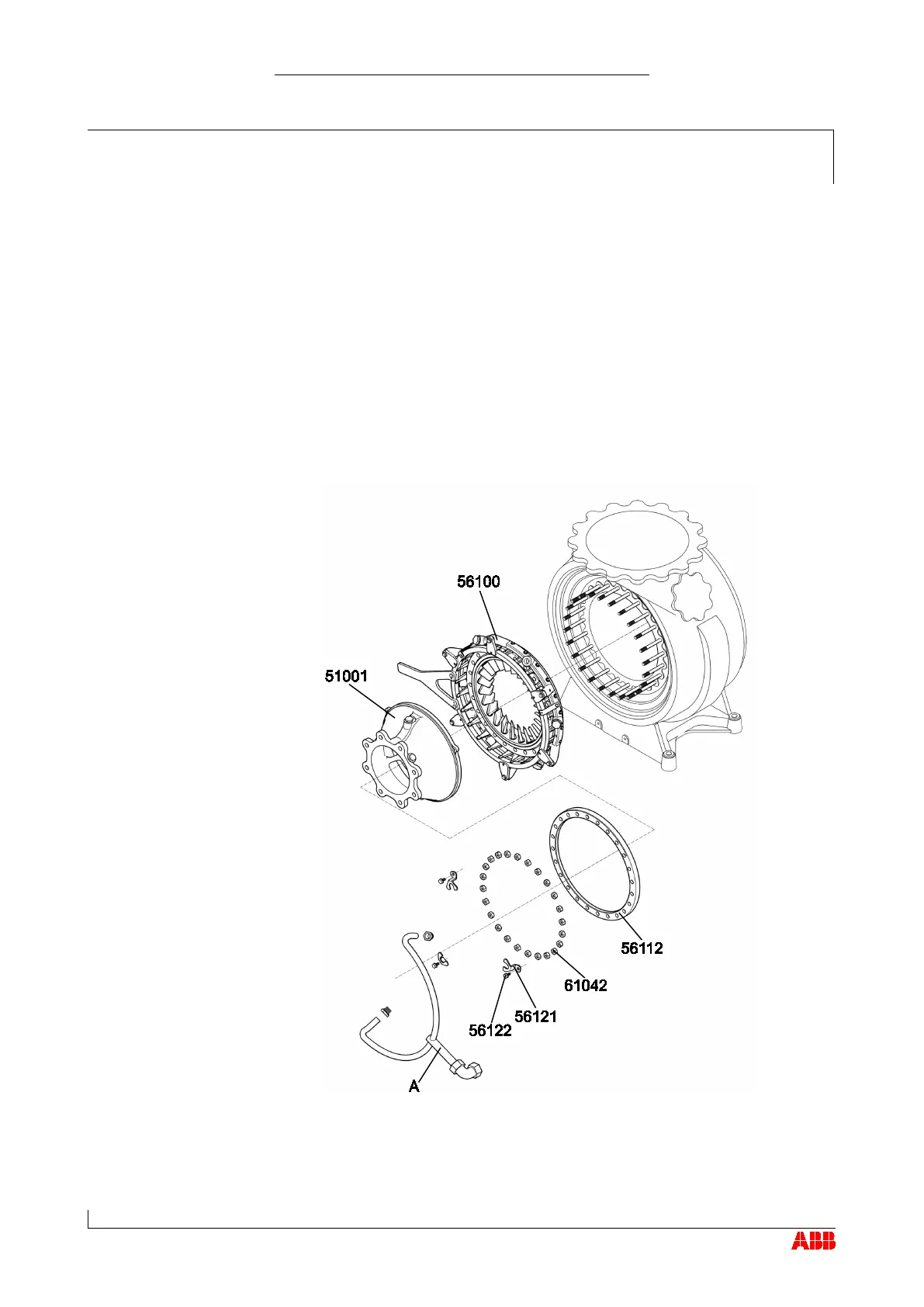

 Push variable turbine geometry module (56100) over studs
 Push gas inlet casing (56001) over studs
 Slide clamping ring (56112) onto studs
 Tighten nuts (61042) to specified torque
 Fit retaining clips (56121) using screws (56122)
 Fit semi-circular section of sealing air line (A) to variable turbine
geometry module
